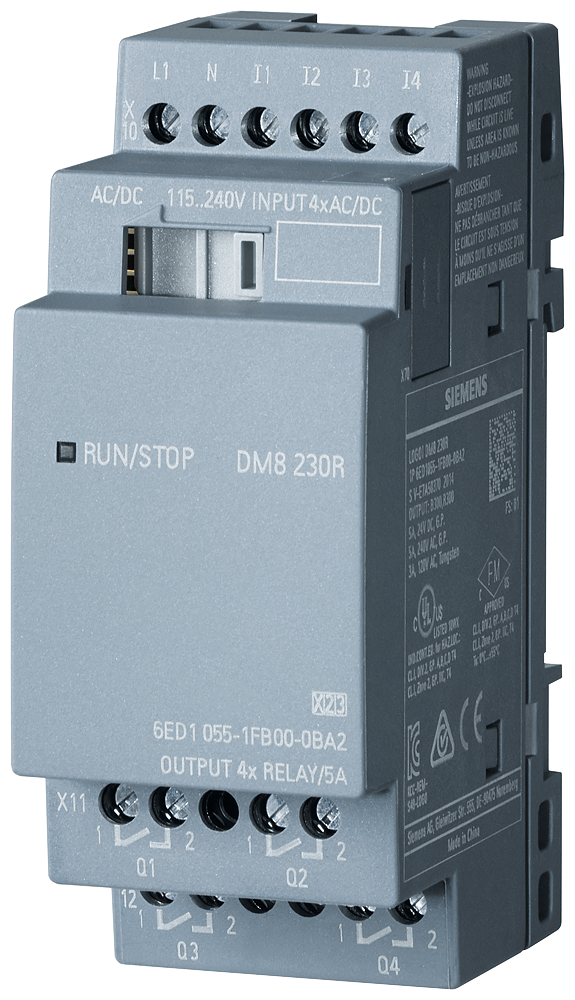

Product image for Siemens 6ED10551FB000BA2 35.5 x 58 x 90 mm 115/230 VAC/VDC 4-I/O Digital Expansion Module
Image thumbnail 0
Image thumbnail 1
Email

Siemens 6ED10551FB000BA2 35.5 x 58 x 90 mm 115/230 VAC/VDC 4-I/O Digital Expansion Module

Manufacturer: Siemens | Catalog # 6ED10551FB000BA2 | North Coast Part # 1732232
$254.60/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
LOGO! DM8 230R expansion module, PS/I/O: 230V/230V/relay, 2 MW, 4 DI/4 DO for LOGO! 8 The LOGO! expansion modules enable a LOGO! configuration to be expanded in a very individual way. A LOGO! 8 basic unit can be expanded to 24 digital inputs, 20 digital outputs, 8 analog inputs and 8 analog outputs. For this purpose, ten different expansion modules are available which allow expansion with digital and analog inputs and outputs using different input voltages.

Technical Information

Amperage
0.13 mA
Connection Type
Screw Connection
Number of Inputs
4
Output
4 Digital
Voltage
115-230 VAC at 50/60 Hz, 115-230 VDC

Manufacturer Information

Brand
Siemens

General Product Info

12-Digit UPC
887621847487
GTiN
00887621847487
Product UPC
88762184748
Used With
LOGO, DM8 230R
Weight
0.368 lb

Dimensions

Depth
58 mm
Height
2.24 Inch
Length
3.86 Inch
Width
2.760 in

Certifications and Compliance

Country of Origin
China
