Burndy KK4A40U4N Aluminum Universal Terminal, 4 Conductor, 4 Hole, 300-800 kcmil, 1/2" Stud, 175" Stud Hole Spacing, 8 Screws, Al/Cu Rated, Tin Plated

Manufacturer: Burndy | Catalog # KK4A40U4N | North Coast Part # 173673
$503.63/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet
Aluminum Universal Terminal, 4 Conductor, 4 Hole, 300-800 kcmil, 1/2" Stud, 1.75" Stud Hole Spacing, 8 Screws, Al/Cu Rated, Tin Plated.

Technical Information

Applications
For Aluminum and Copper Conductors
Connection Type
Parallel Set-Screw
Material
Aluminum
Number of Conductors
4
Number of Wires
4 Wire
Plated?
Yes
Plating Type
Tinned
Type
Bolted Lugs & Terminals

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810601099
GTiN
00781810601099
Product UPC
78181060109

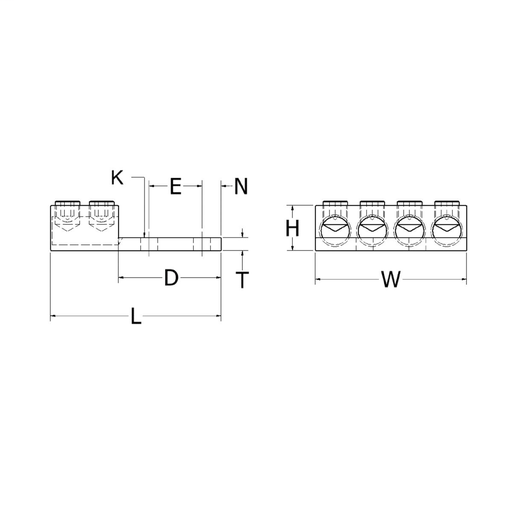

Dimensions

Height
1.89 Inch
Hole Size
0.56 in
Length
6.19 Inch
Overall Length
157 mm
Width
6.75 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • Dual rated panelboard lugs constructed from high strength extruded aluminum alloy , electro tin-plated to provide low contact resistance
