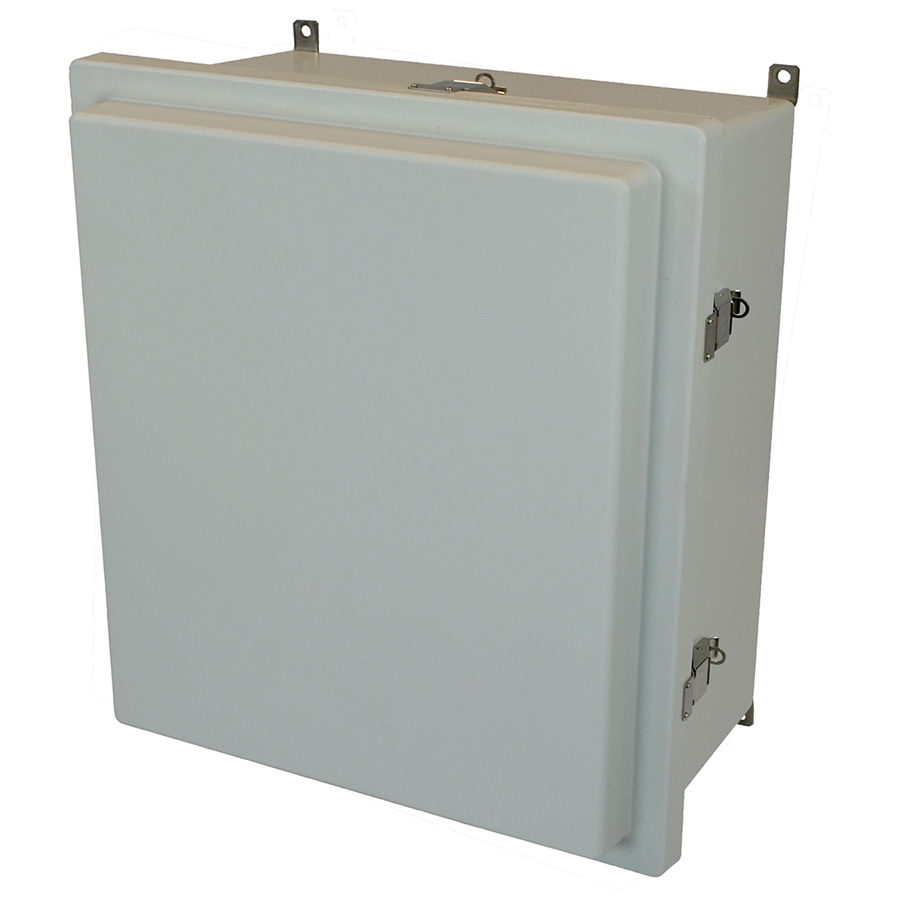

Allied Moulded Products AM1868RL 18 x 16 x 8 Inch Snap Latch Hinged Cover

Manufacturer: Allied Molded Products | Catalog # AM1868RL | North Coast Part # 1744198
$293.21/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Specification Sheet MDM Safety Data Sheet
Type:NEMA 4X Type: Nonmetallic Enclosure Special Features:Raised, hinged snap latch Type:, overlapping and opaque cover design with FIP formed-in-place polyurethane gasket system Application:Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less Material:ULTRAGUARD - Fiberglass reinforced polyester - thermoset Size:A=18.40", B=16.40", C=8.13" plus 1.75" raised cover, usable depth=9.21" Color:RAL 7035 - Gray Mounting:Stainless steel feet fastened to back side brass inserts

Technical Information

Applications
Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less
Insulation Type
Non-Conductive,Non-Metallic
Material
Polyester
Mounting Type
Stainless Steel Feet Fastened To Back Side Brass Inserts
Size
A=18.40", B=16.40", C=8.13" plus 1.75" raised cover, usable depth=9.21"
Type
NEMA 4X Type Nonmetallic Enclosure

Manufacturer Information

Family Brand Name
Allied Moulded
Sub Brand
AM JIC

General Product Info

Color
Gray
Construction
Compression Molded
GTiN
00085339918936
Product UPC
08533991893

Dimensions

Depth
8.01 Inch
Height
18.4 Inch
Width
16.4 in
Additional Materials
  • 316 stainless steel external hardware (hinges, latches and fasteners)
  • Polyurethane (FIP) Formed-In-Place gasket system
  • Plated carbon steel internal hardware
  • 316 stainless steel mounting brackets
  • Brass inserts
  • Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
  • PA186
  • PG186
  • AMPOLEMNT16
  • AMU1860L
  • PF186
  • AM1868RLW
  • HFP186
  • AMHS075
  • P186
  • Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover.
  • Complies with:
  • RoHS directive
  • EN / IEC 60204-1 and 60529 Type IP66
  • UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175
  • CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
