SIGNAL REF GRID CONN #8 #6-#4 COND

Manufacturer: Thomas & Betts | Catalog # SRG8-4 | North Coast Part # 174533
$21,807.47/c (100 ea)
ea
Order in multiples of 5 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual

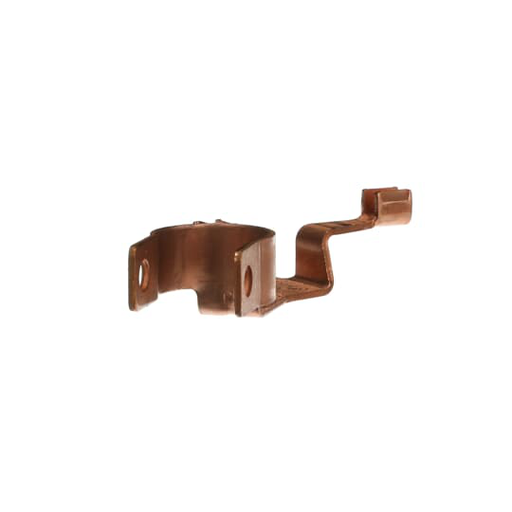

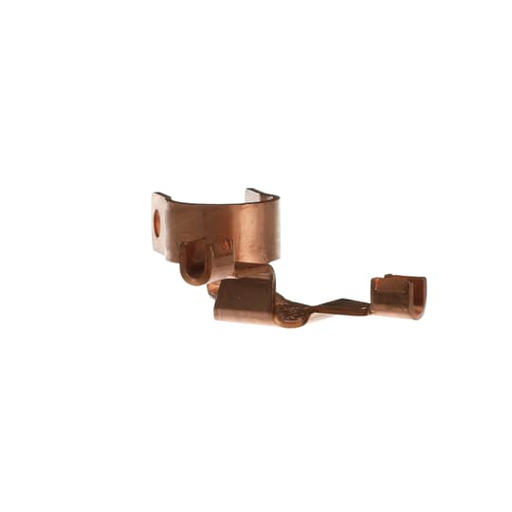

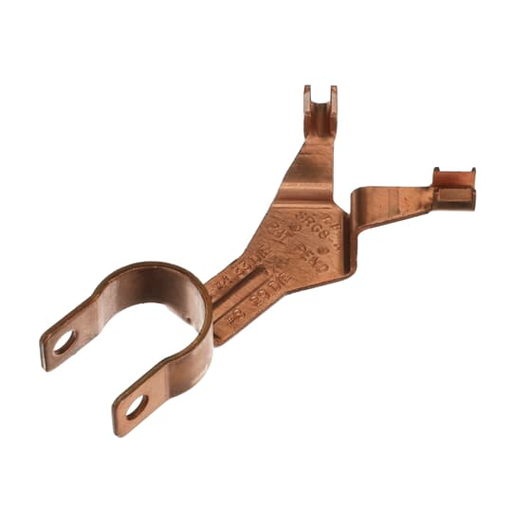

Signal Reference Grid Copper Connector for Wire Range #8, #6 - #4, For Pedestal Posts up to 1 inch square and 1 - 1 1/4 inches Round, Die Code 29, 33

Technical Information

Applications
For Used as X or T Configuration Cable to Post
Conductor Material
Copper
Conductor Size
8-4 AWG
Insulated?
No
Material
Copper
Standard
UL E3060
Type
Ground Clamp

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Color Keyed

General Product Info

12-Digit UPC
786210715636
Box Quantity
25
Color
Gray
GTiN
00786210715636
Product UPC
78621071563
Features
  • High-conductivity wrought-copper construction.
  • Clamps onto pedestal posts up to 1 inch diameter square and 1 1/4 round. Can be used as an X or T configuration cable to post.
  • Application Tools: TBM14M, TBM15I
