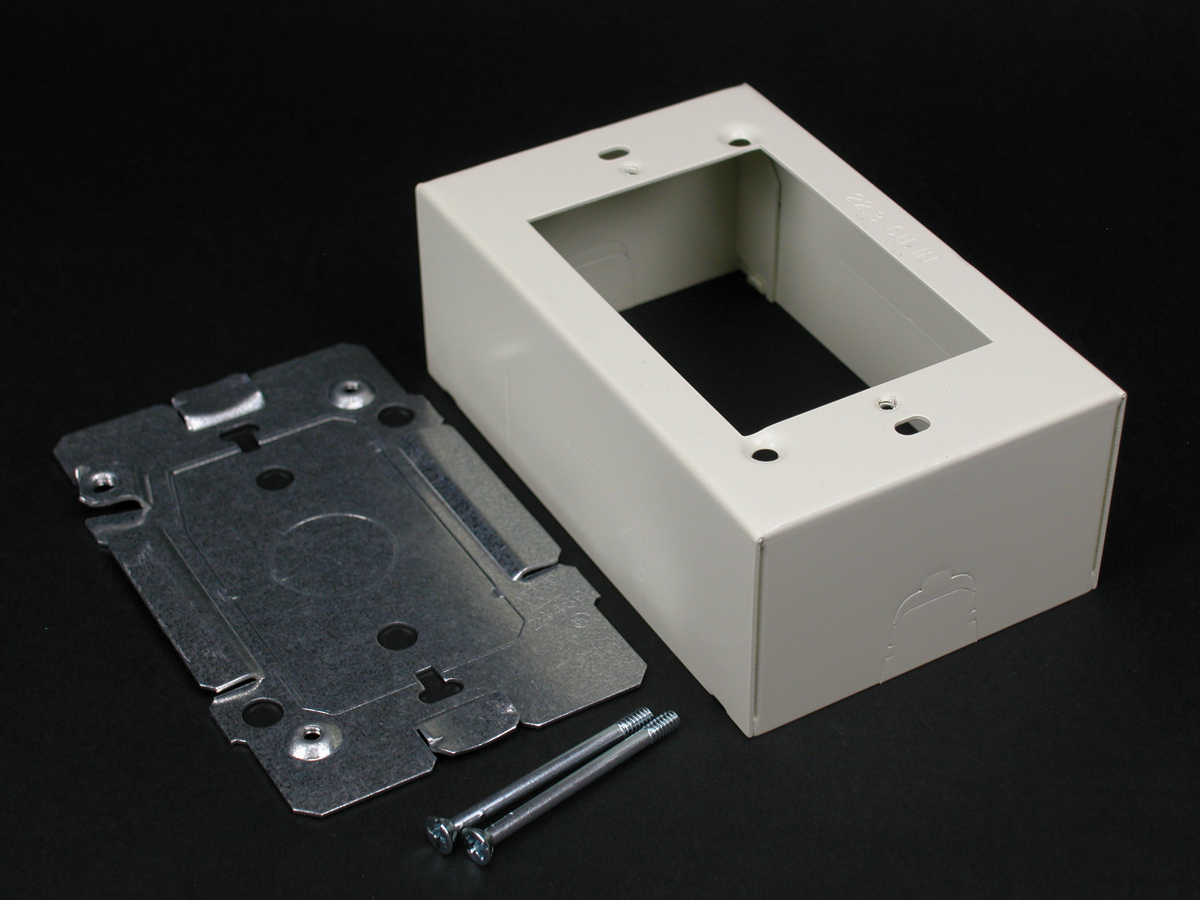

Wiremold 2448-WH 2400-Series Device Box Fitting

Manufacturer: Wiremold | Catalog # 2448-WH | North Coast Part # 1746174
$25.14 /ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Brochure Installation / Instruction Manual Specification Sheet
2400® Series Raceway is a single compartment raceway designed for communication or power applications and ideal for use in classrooms, offices, and hotel applications, or anywhere a small low profile raceway isneeded. 2400D® Series Divided Raceway is a low profile steel raceway for use where a limited number of power and low voltage cables are required in the same raceway.

Technical Information

Applications
Commercial
Component Type
Boxes
Indoor Outdoor
Indoor
Material
Steel
Number of Gangs
1
Type
Raceway Device Box
Voltage
600 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786776139297
Color
White
GTiN
00786776139297
Jacket Color
Ivory, Fog White
Product Series
2400 Series
Product UPC
78677613929
Weight
0.548 lb

Dimensions

Height
1-3/4 Inch
Knockout Size
1/2 in
Length
2-7/8 Inch
Outside Diameter
2 7/8" x 1 3/4"
Warranty Length
1-Year From Installation Or 2-Years From Day Of Sale
Width
4.625 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
ROHS,UL
Country of Origin
USA
Features
  • One-gang device box. Cover has twistout for 2400 Series Raceway on each side, and one twistout for 500 and 700 Series Raceway on the top and bottom.
  • Base has knockout to enable extension from existing single-gang, flush wall box and 1/2'' trade size KOs. Accepts industry standard faceplates for electrical and communication devices.
  • NOTE: Accepts NEMA single-gang standard faceplates. Certified to Canadian Safety Standards for sale in Canada.
  • When ordering this product for Canada, add ''C'' to the beginning of the part number to denote Canadian versions, i.e. ''CV2444'' or ''C2444-FW''.
Certifications
  • RoHS Compliant
  • UL Listed
