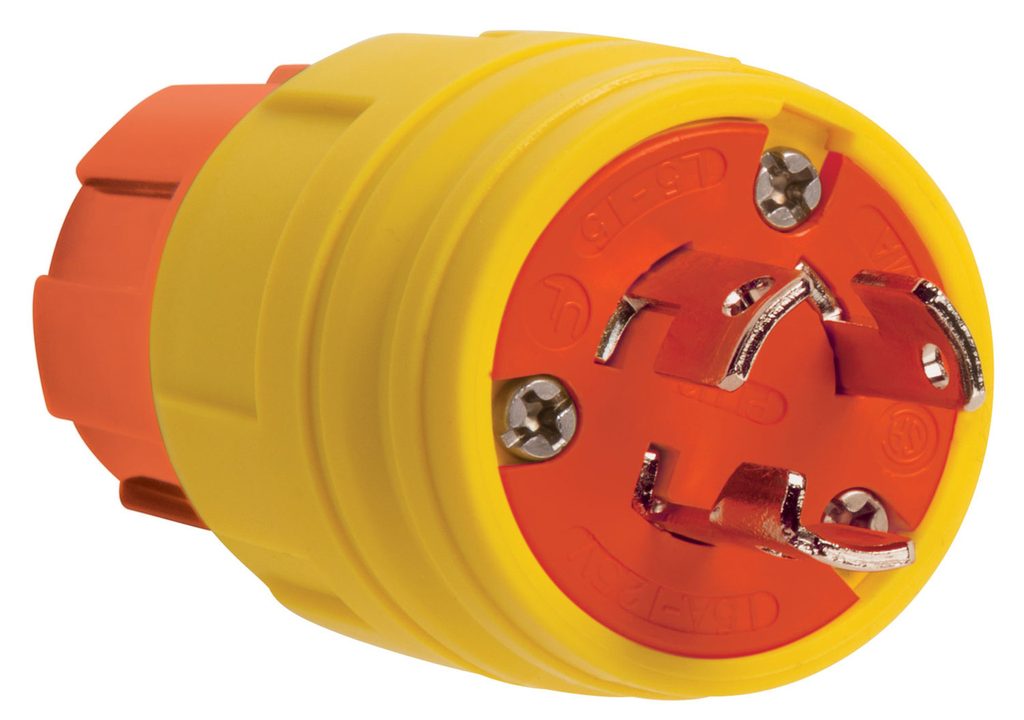

Product image for Pass & Seymour 24W47AM 15A 125V Locking Anti Microbial IP67 L5-15P Plug, Orange/Yellow
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Pass & Seymour 24W47AM 15A 125V Locking Anti Microbial IP67 L5-15P Plug, Orange/Yellow

Manufacturer: Legrand / Pass & Seymour | Catalog # 24W47AM | North Coast Part # 1746936
$74.11 /ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Brochure Specification Sheet
SteriGuard Anti-Microbial Wiring Devices provide excellent protection against the growth of microbes on all surfaces. Independent testing proves the ability of these devices to inhibit the growth of Escherichia coli, Gram (-) and Staphylococcus aureus, Gram (+) providing long lasting benefits to manufacturers beyond conventional cleaning methods. Rated watertight for 1,500 psi high-pressure''

Technical Information

Amperage
15 Amp
Applications
High-Pressure Washdowns. Particle Build-Up. Condensation. Corrosive Substances. Food and Beverage Processing Plants Can be Harsh, Challenging Environments. Fortunately, we Have a Full Menu of Electrical Devices That Keep Things Running Smoothly While Protecting People and Equipment. IEC Pin and Sleeve Devices Watertight Plugs and Connectors | Thermoplastic Elastomer Body Resists Water, Oils, Lubricants and Soaps While Maintaining NEMA 4, 4X, 6, 6P, and IP65, 66, 67 Ratings | Ideal for Washdown Areas - Rated Watertight for 1,500 PSI High-Pressure Hose Down | Nickel-Plated Blades and Contacts for Long-Lasting, Superior Corrosion Resistance | Watertight Compression cord Grips and A Multipoint Sealing System between the Plug and Connector Ensures Protection from Water and Contaminants P
Conductor Size
18-12 AWG
Cord Type
Type S, SO, ST, SJ, SJO, SJT, 18/3 to 12/3, 0.300 - 0.625 in dia
Indoor Outdoor
Indoor
Material
Rubber
NEMA
L5-15P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Temperature Rating
-40 degrees C to 60 degrees C
Type
Anti-Microbial
Voltage
125 Volt
Wire Size
12 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007057058
Color
Yellow
Environmental Conditions
Watertight
GTiN
00785007057058
Product UPC
78500705705
UNSPSC
39121403

Dimensions

Depth
2.62 Inch
Diameter
1.63 Inch
Height
1.85 Inch
Length
2.68 Inch
Warranty Length
1 yr
Width
1.85 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
CSA,UL
Country of Origin
USA
Features
  • UL and CSA Listed
  • NSF (National Sanitation Foundation) Certified
  • Patent Pending
  • Anti-microbial Additives Embedded in polymer and inhibits Growth of Bacteria, Molds, Mildews and Fungi
  • Anti-microbial Additive Resistant to Scuffing and Cleaning
  • Escherichia (E.Coli): - Log reduction greater than 4.8, reduced surface bacteria by greater than 99.99%
  • Staphylococcus (Staph), MRSA: - Log Reduction greater than 4.3, reduces surface bacteria by greater than 99.97%
  • Salmonella : Log Reduction Greater Than 3.6, reduces surface bacteria by Greater Than 99.97%
  • RoHS Compliant (Non-Halogenated)
  • Independently tested and Certified to JIS Z2801 standards
  • Resistant to High Pressure Hose-down applications
  • Tongue & Groove Environmental Sealing
  • Keyed Body and Cover for Alignment
  • NEMA Type 4, 4x, 6, 6P and IP67 Protection
  • Steriguard: Anti-microbial Wiring Devices are ideal for a wide range of applications including food and beverage preparation, procession, & packaging: agriculture, pharmaceutical, and health care.
Certifications
  • UL Listed
  • CSA Listed
