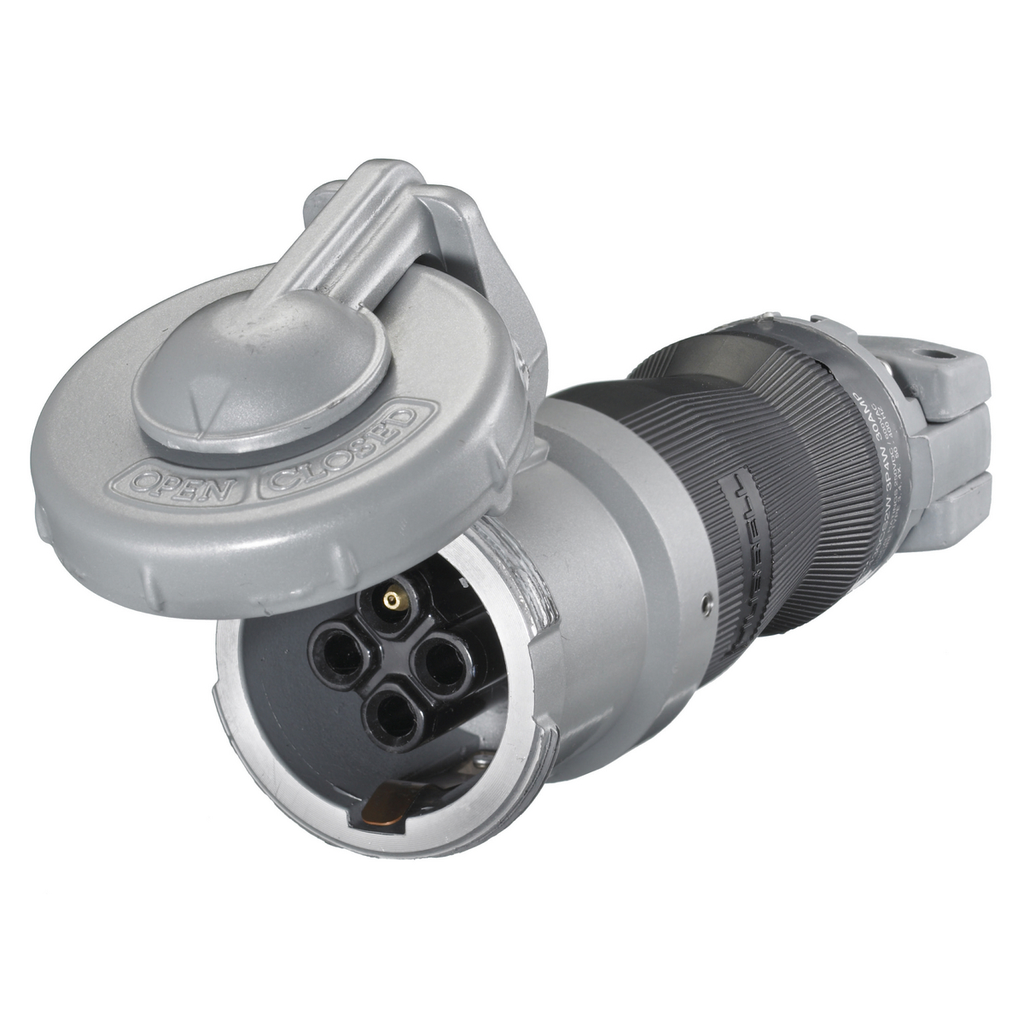

Product image for Hubbell HBL430CS2W 30 Amp 600 VAC 250 VDC 3-Pole 4-Wire Style II Watertight IEC Pin and Sleeve Connector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3

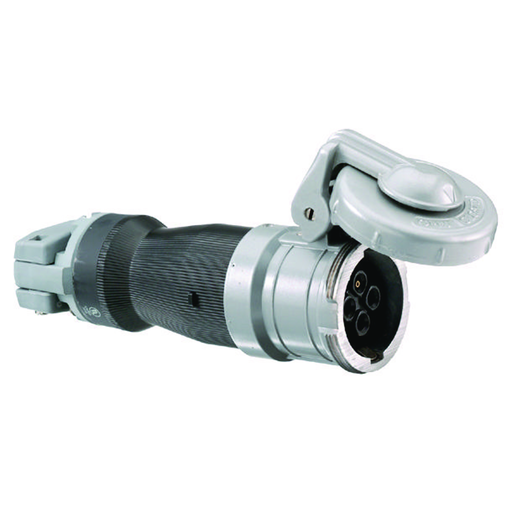

Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Email

Hubbell HBL430CS2W 30 Amp 600 VAC 250 VDC 3-Pole 4-Wire Style II Watertight IEC Pin and Sleeve Connector

Manufacturer: Hubbell / Kellems | Catalog # HBL430CS2W | North Coast Part # 175026
$507.83/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 30A 600V AC, 3-Pole 4-Wire Grounding Style 2, Terminal Screws Gray and Black

Technical Information

Amperage
30 Amp
Applications
High Ampacity Connections
Conductor Size
10-8 AWG
Connection Type
Pressure Screw Terminal
Current
30 Amp
Material
Composite
Number of Conductors
4
Number of Poles
3-3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,CSA Spec. C22.2 No. 182.1,Type 4X,UL,UL Standard 1682
Style
Standard Service,Style 2 Grounding
TC Connection
Pressure Screw Terminal
Temperature Rating
75 degrees C Maximum Continuous, -40 degrees C Minimum Continuous without impact, -25 degrees C with Impact
Type
Standard, Straight, Insulated, Watertight, 3-Pole
Voltage
250 Volt
Wire Count
4

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve

General Product Info

12-Digit UPC
783585010205
Color
Black and Gray
Environmental Conditions
Watertight
GTiN
00783585010205
Product Series
UL 1686 Class 1 Insulgrip®
Product UPC
78358501020
Weight
2 lb

Dimensions

Height
4-1/4 Inch
Length
9 Inch
Width
4.6 in

Certifications and Compliance

Certifications
And UL 1010 (plugs Only) CSA Certified To CSA Spec. C22.2 No. 182.1,CSA Certified To CSA C22.2 No. 182.1,CSA Certified Type 4X.,No. 94 And No. 159 (plugs Only) UL Listed,No.94 And No. 159 (plugs Only),UL 50,UL Listed,UL Listed,UL Listed And CSA Certified Type 4X.,UL Standard 1682,UL Standard 1682,UL50 And UL1010 (plugs Only)
Country of Origin
Puerto Rico
Features
  • Watertight neoprene sealing glands for reliable seal
  • Spring-Loaded, gasketed cover for dust-tight seal
  • Pin chamber confines arcing within the interior chamber
  • Watertight
