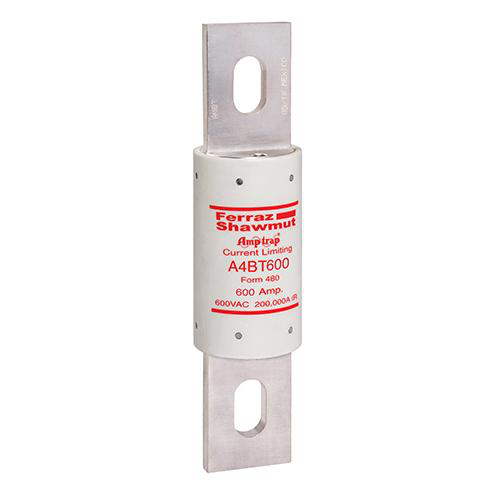

Product image for Mersen A4BT600 600V 600A L TD FUSE
Image thumbnail 0
Image thumbnail 1
Email

Mersen A4BT600 600V 600A L TD FUSE

Manufacturer: Mersen | Catalog # A4BT600 | North Coast Part # 175594
$1,245.77/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The high interrupting rating of the Amp-Trap A4BT current-limiting fuses makes it suitable for protecting mains, feeders, and general circuits. The 10-second time-delay at 500 percent of fuse rating is ideal for large motors and other loads with high inrush currents. A4BT fuses can be applied to normal loads up to its full ampere rating to allow 100percent rating of equipment.

Technical Information

Amperage
600 Amp
Applications
For Motors, Motor Controllers, Transformers, Mains, Feeders
Contact Material
Silver Plated Copper
Frequency
50 Hz
Fuse Class
Class L
Insulation Material
GMG
Interrupt Rating
100, 200 kAIC
Mounting Type
Bolt-On
Rated Voltage AC
600 V
Rated Voltage DC
500 V
TC Connection
Blade
Terminal Material
Silver-Plated Copper
Terminal Type
Blade
Type
Time-Delay
Voltage
600 VAC, 500 VDC

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
782001939861
Class
L
Construction
Glass Melamine
GTiN
10782001939868
Product UPC
78200193986
Weight
2 lb

Dimensions

Diameter
2 Inch
Length
8.63 Inch
Features
  • Unique dimensions prevent replacement by other fuse classes.
  • Blade-stamped catalog numbers for permanent identification
  • Glass melamine body and plated terminals provide superior reliability in harsh environments
Applications
  • Motors
  • Motor controllers
  • Transformers
  • Mains
  • Feeders
Approvals & Standards
  • UL Listed to Standard 248-10, File E2137
  • CSA Certified to Standard C22.2, No. 248.68
  • Self-certified for DC per UL248 (601-2000)
