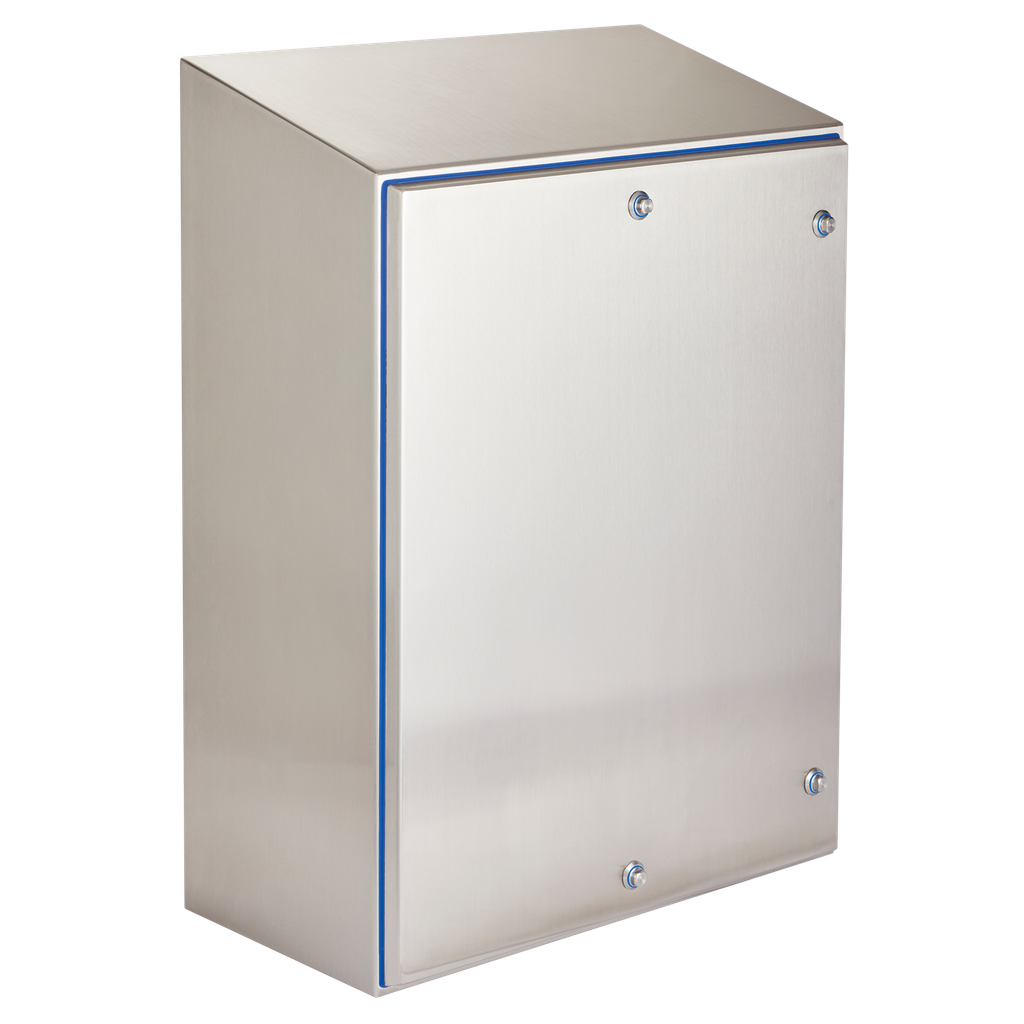

Product image for Hoffman HSDH242408SS HyShed Hinge Cover Enclosures, Type 4X, 24.00x24.00x8.00, Stainless Steel 304
Email

Hoffman HSDH242408SS HyShed Hinge Cover Enclosures, Type 4X, 24.00x24.00x8.00, Stainless Steel 304

Manufacturer: nVent Hoffman | Catalog # HSDH242408SS | North Coast Part # 1758981
$3,955.79/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Engineered specially to withstand high pressure, high temperature sanitary washdown cleaning procedures, particularly in Food and Beverage applications that have direct and indirect food contact. The HyShed Hinge Cover enclosures feature a 15-degree sloped top to prevent fluids or particulates from pooling and maximize back panel space, an easily replaceable FDA-grade silicone gasket that helps resist bacteria growth and chemical absorption while simplifying maintenance, and a streamlined hygienic design that helps wipe out bacteria harboring catchpoints.

Technical Information

Applications
For Dairy Applications
Cover Type
Hinged
Gauge
14 ga
Material
Stainless Steel
Mounting Type
Wall
Standard
3-A SSI Replacement Parts And System Component Qualification,CUL Listed Per CSA C22.2 No 94; Type 4, 4X, 12; File Number,Certificate,DIN 40050-9, IP69K,E503705,E61997,IEC 60529, IP66, IP69,NEMA/EEMAC Type 4, 4X, 12,NSF 169 Special Purpose Food Equipment And Devices,UL 508A Listed; Type 4, 4X, 12; File Number E61997,UL And CUL Classified To IEC 60529, IP66, IP69; File Number

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
HyShed

General Product Info

12-Digit UPC
783510305277
Color
Unpainted
Finish
Brushed
GTiN
00783510305277
Product UPC
78351030527
Weight
60 lb

Dimensions

Depth
8 Inch
Height
24 Inch
Length
29 Inch
Thickness
1.98 mm
Width
24 in
Features
  • Brushed #4 finish for dairy applications
  • 15-degree sloped top facilitates runoff of water and cleaning solutions; prevents fluids or particulates from pooling
  • Door edges are sloped to facilitate runoff
  • Replaceable FDA-grade silicone gasket compliant with FDA Guideline 21 CFR 177.2600
  • Gasket is sanitary Pantone 287 blue color for easy detection by common food scanning equipment and vision systems
  • Internally mounted hinges to reduce bacteria-harboring catch points
  • Stainless steel crevice-free latch surfaces to reduce bacteria harboring catch points; uses standard tool to open
  • Solid back with no pre-tapped mounting holes for easy weld mounting; optional IP69K sanitary stand-off kit available
  • 105-degree door opening
  • Self-grounding latch system with double seal
  • Seams continuously welded and ground smooth
  • Bonding provision on door; grounding stud on body
  • Furnished hardware kit consists of panel mounting kit and grounding kit
