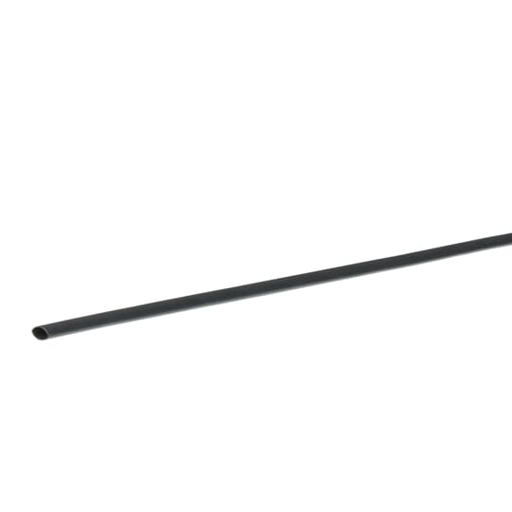

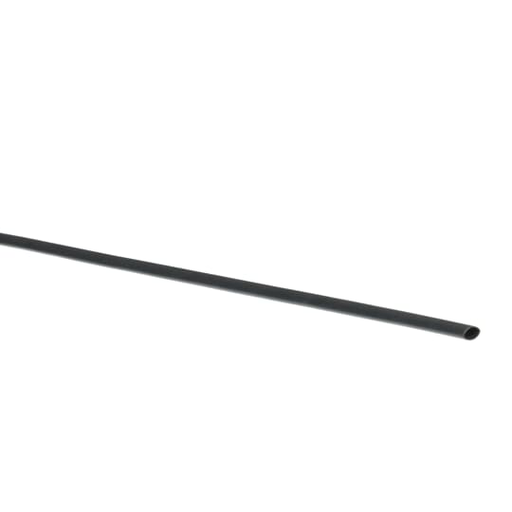

Thomas & Betts CPO187-0-A Heat Shrink Tubing

Manufacturer: Thomas & Betts | Catalog # CPO187-0-A | North Coast Part # 176211
$1,524.83/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Thin-Wall Heat-Shrinkable Tubing for Cable Range 22 - 14 AWG, Expanded Diameter 3/16 inch, Length 4 feet, rated for 600 Volt, 125 degrees C, Material: Cross-linked polyolefin - Non-lined, Black

Technical Information

Material
Polyolefin
Shrink Ratio
2:1
Temperature Rating
-55 to 135 degrees C
Type
Thin-Wall Heat Shrinkable Tubing
Voltage
600 Volt
Wire Size
0.32-2.08 mm

Manufacturer Information

Brand
ABB
Sub Brand
Shrink-Kon®

General Product Info

12-Digit UPC
786210833859
Color
Black
GTiN
00786210833859
Product UPC
78621083385

Dimensions

Length
4 Foot
Thickness
Thin
Features
  • Meets UL 224, 125°C; CSA 22.2 No. 198.1, 125°C; MIL-DTL-23053/5 Class 1&2; AMS 3636 & 3637; DEF STAN 59-97, Issue 3, Type 2a
  • Flame-retardant, cross-linked polyolefin.
Notes
  • UL Recognized File Number E137759 and CSA Certified. Clear material not UL Recognized.
  • Order multiple is for 4 ft. sticks is 25 sticks. Order multiple for reels is 1 reel. When ordering standard package, order by package not feet.
  • Larger diameters available upon special request; consult Customer Service.
Certifications
  • CSA
