HWDK HBL4779VBK LKG VAL CONN, 15A 2

Manufacturer: Hubbell / Kellems | Catalog # HBL4779VBK | North Coast Part # 176557
$45.50/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual

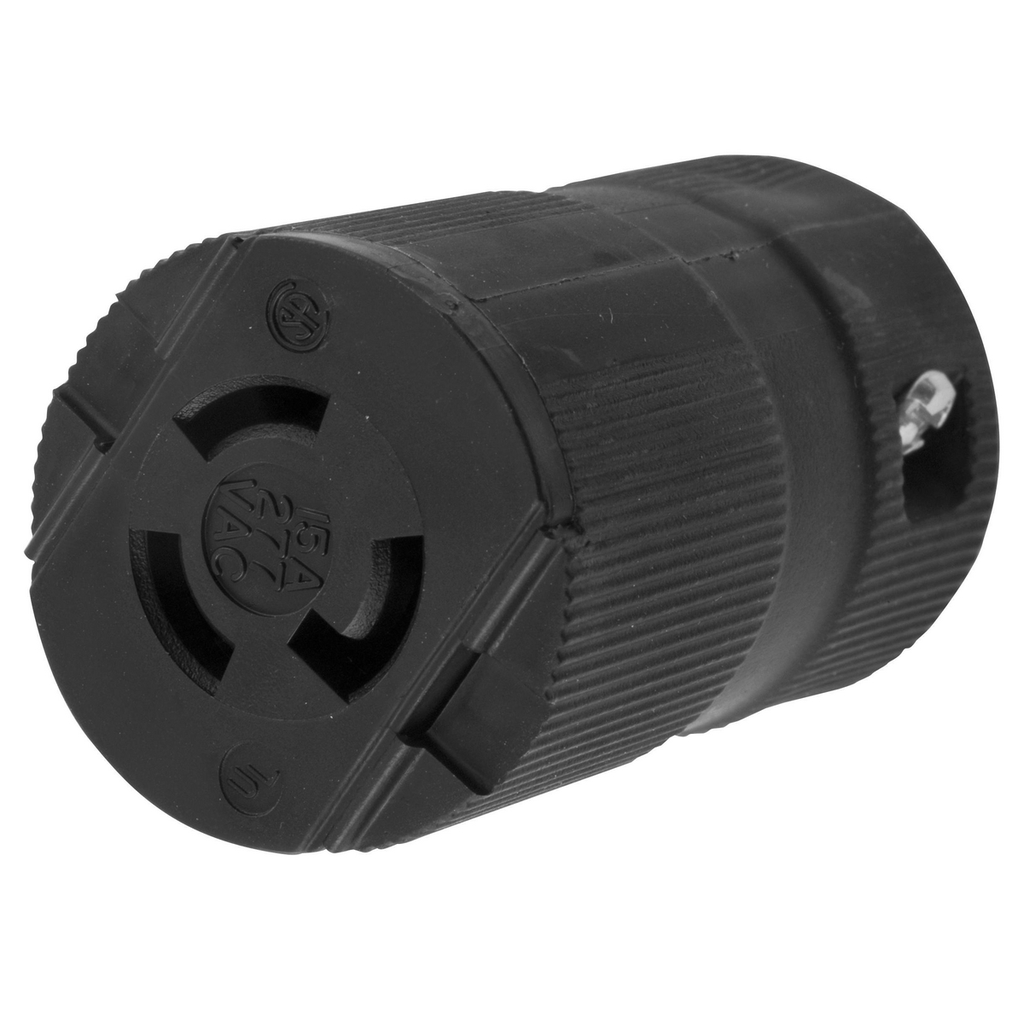

Locking Devices, Twist-Lock®, Valise®, Female Connector Body, 15A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-15R, Screw Terminal, Black Nylon.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Conductor Size
18-10 AWG
Current
15 Amp
Material
Nylon
NEMA

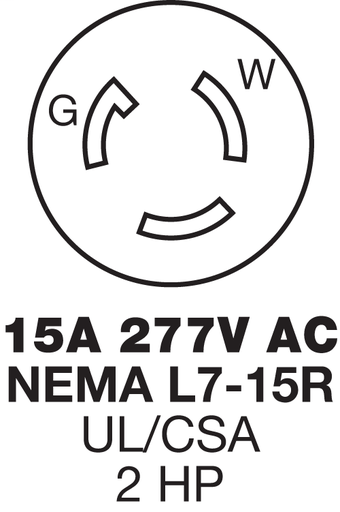

L7-15R
Number of Conductors
3-Wire Grounding
Number of Poles
2-2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Pressure Screw Terminal
Temperature Rating
-40 degrees C
Type
Valise
Voltage
277 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock

General Product Info

12-Digit UPC
783585043326
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585043326
Product UPC
78358504332
Weight
0.15 lb

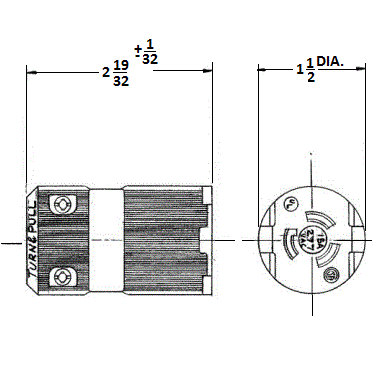

Dimensions

Height
2.59 Inch
Length
1-1/2 Inch
Width
1.50 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Two captive multiple drive assembly screws
  • Totally insulated impact and crush resistant nylon body
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
  • Standard Product
