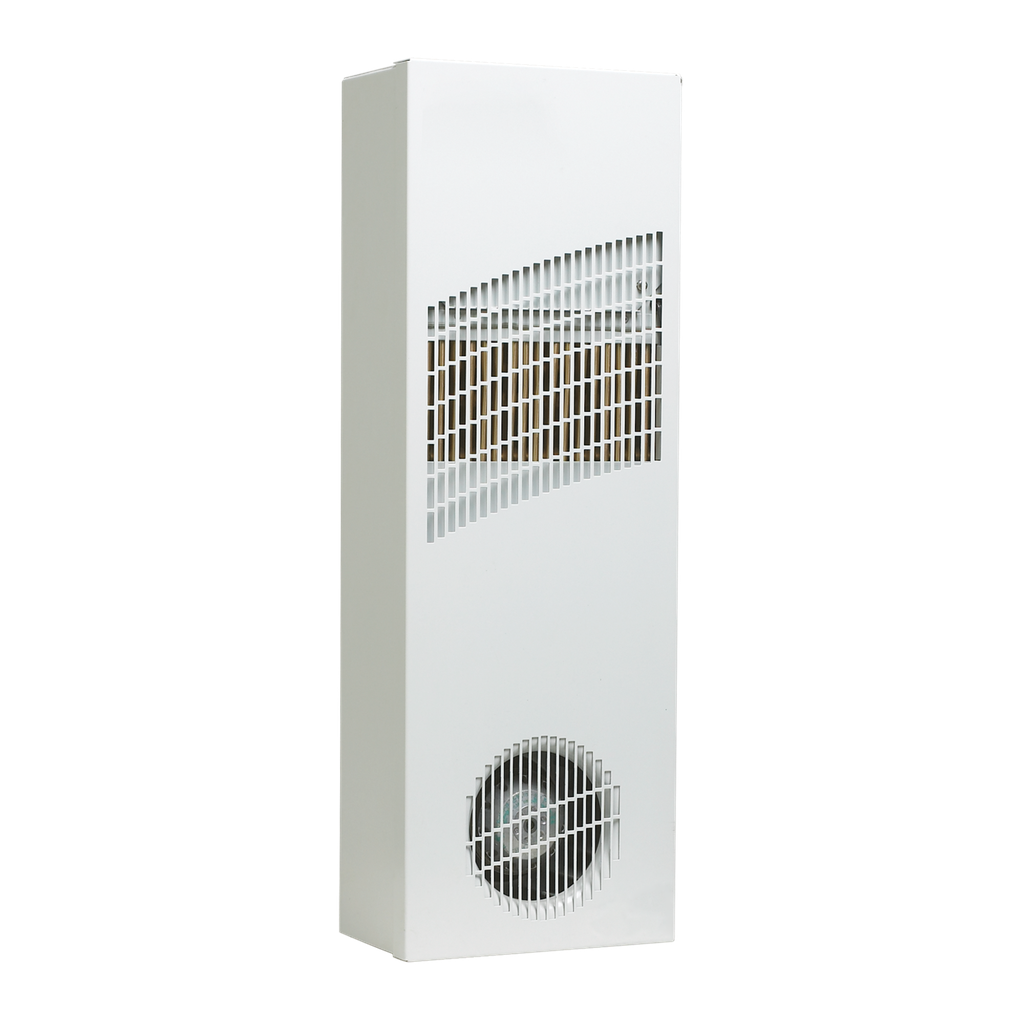

Product image for Hoffman XR291816012 Heat Exchanger 115v 50/60Hz
Email

Hoffman XR291816012 Heat Exchanger 115v 50/60Hz

Manufacturer: nVent Hoffman | Catalog # XR291816012 | North Coast Part # 177475
$3,088.11/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
nVent Hoffman.s ClimaGuard Indoor Heat Exchangers offer reliable closed-loop cooling while sealing out temperature extremes, dirt, dust, corrosive elements and washdown water. This robust heat exchanger allows efficient thermal transfer while ensuring maximum protection against leaks. With ClimaGuard Indoor Heat Exchangers providing a tight seal against air and water infiltration, units can be simply surface-mounted to an enclosure with no loss of enclosure integrity.

Technical Information

Applications
Controls and Drives; Power Distribution
Color Coding
RAL 7035
Material
Steel
Max Current
1.8 A
Max Temperature
140 degrees F
Min Temperature
-20 degrees F
Standard
Maintains Type 3R Rating When Mounted Externally And In A Vertical Position On A UL/cUL Type 3R Enclosure.,Maintains UL/cUL Type 12 Rating When Properly Installed On A UL/cUL Type 12 Enclosure.,XR200416012 And XR200426012 Do Not Carry Type 3R Rating.UL/
Type
Heat Exchangers
Voltage
100 Volt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProAir

General Product Info

12-Digit UPC
783510113421
Color
Gray
Finish
Powder Coated
GTiN
00783510113421
Product UPC
78351011342
Weight
36 lb

Dimensions

Depth
5.92 Inch
Height
29.66 Inch
Length
31 Inch
Thickness
1.21 mm
Width
10.24 in
Features
  • Unique counterflow aluminum core for high-efficiency and high-performance heat transfer, except for the XR20 and XR29-08 which use a modified heat pipe core
  • Streamlined aesthetics with no visible mounting rails; slim design allows for mounting to narrow or shallow enclosures
  • Models for 115 and 230 VAC power input
  • Operating temperature range from -20 F/-29 C to 140 F/60 C
  • Low-carbon mild-steel sheet-metal cover for rugged factory environments
  • Filterless design for low maintenance and easy cleaning
  • Reliable top-quality bearing fans and impellers make these units run quietly and with increased reliability
  • Easy-mount flanges for simple installation
  • Every unit functionally tested before shipping
  • Mounting hardware, gaskets and user manual furnished with the unit
  • Four fasteners allow simple removal of front cover for easy access
