AFC 1708B42T00 10-3 Solid (Black, Red, White) MC Cable with Ground Lightweight Steel Armored Cable, 277/480V, 250ft Coil

Manufacturer: AFC MC Cable | Catalog # 1708B42T00 | North Coast Part # 178239
$3,165.10/m (1000 ea)
ea
Order in multiples of 250 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet MDM Safety Data Sheet

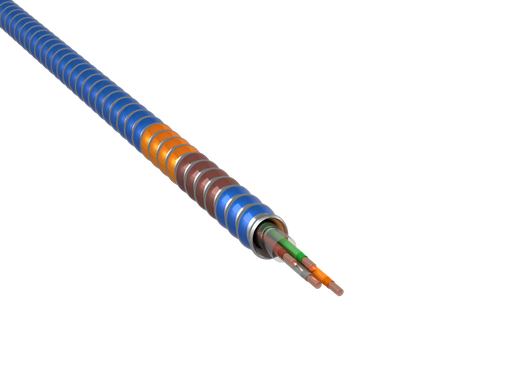

MC Tuff is a lightweight, high-strength Type MC Cable with blue galvanized steel interlocked armor that features ColorSpec®ID/ColorTrak® ID for easy identification. MC Tuff cables meet UL Standard 1569 and NEC 330, have no conductor count limit, and offer various conductor bundle combinations. These bundles consist of THHN/THWN rated conductors that are twisted and wrapped with polypropylene assembly tape. They also come with an insulated green equipment grounding conductor. Additionally, Atkore offers a Glide version of this cable for smoother, faster installation.

Technical Information

Conductor Material
Copper
Conductor Size
10 AWG
Insulation Material
THHN
Number of Conductors
3
Temperature Rating
90 degrees C
Type
Traditional Lightweight Type MC Cable With Ground And Neutral
Voltage
600 Volt

Manufacturer Information

Brand
AFC Cable Systems, Inc.
Sub Brand
MC TUFF

General Product Info

12-Digit UPC
077680195869
Color
Black,Green,Red,White
GTiN
00077680195869
Product UPC
07768019586
Weight
0.268 lb/ft

Dimensions

Height
7 Inch
Length
250 Foot
Outside Diameter
0.6 in
Width
7.000 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Cable System. Technically equivalent and economically superior to traditional raceway and wire installations.
  • ColorSpec® ID/Color-Trak ID System. Lightweight blue galvanized steel armor with phase ID painted directly onto the armor for added identification without the added step of opening up the panel to determine circuit type.
  • Handling. High strength, lightweight galvanized steel armor allows for easier storage & handling.
  • Redundant Grounding. For applications requiring isolated, redundant, or dedicated grounding conductors. Isolated Ground (I.G.) configuration with 2 Green grounds, 1 solid green, 1 with yellow stripe available upon request.
  • Connector. May be used with set-screw connectors UL listed for use with MC cable
  • Made in USA of US and/or imported materials
