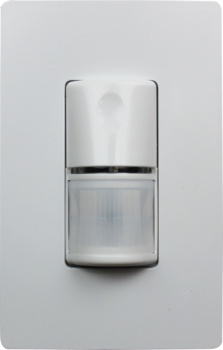

Wattstopper WS-301-LA Passive Infrared Wall Switch Occupancy Sensor, 120/277V - Light Almond

Manufacturer: Wattstopper | Catalog # WS-301-LA | North Coast Part # 1789555
$148.88/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Installation / Instruction Manual
The WS-301 Passive Infrared (PIR) Wall Switch Sensor turns lighting or fan loads on and off based on occupancy and ambient light level. The sensor replaces existing wall switches and fits behind a standard decorator wall plate. Complies with 2011 NEC requirements. Zero crossing circuitry reduces stress on the relay and results in increased sensor life. Adjustable time delay and sensitivity. Custom two-tier Fresnel lens enhances detection at the desktop level. Sensor coverage tested to NEMA Guide Publication WD 7-2000.

Technical Information

Amperage
4.3 Amp
Applications
For Office, Conference Rooms, Lunch/Break Rooms
Connection Type
Wired
Enclosure
Plastic Housing
Indicator
True
Load Rating
1200 W @ 240/277 VAC, 1000 W @ 120 VAC
Material
Plastic
Mounting Type
Wall/Strap
Number of Poles
1 Pole
Operating Cycles
1000000
Operating Temperature
35degrees C
Sensing Range
900 sq ft
Sensor Type
Passive Infrared
Standard
CSA C22.2 No. 14,IEC 60947-3,UL 508
Temperature Rating
35 degrees C
Type
Core Balanced
Voltage
277 Volt

Manufacturer Information

Brand
WattStopper
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
754182935369
Color
Light Almond
Environmental Conditions
95% Humidity, UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTiN
00754182935369
Product UPC
75418293536

Dimensions

Depth
1.55 Inch
Height
2.6 Inch
Length
2.6 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Features
  • Custom two-tier Fresnel lens enhances detection at the desktop level
  • Light level sensor holds lights off when ambient lighting is above the preset level
  • Patented voltage drop protection
  • Zero crossing circuitry reduces stress on the relay and results in increased sensor life
  • Adjustable time delay and sensitivity
