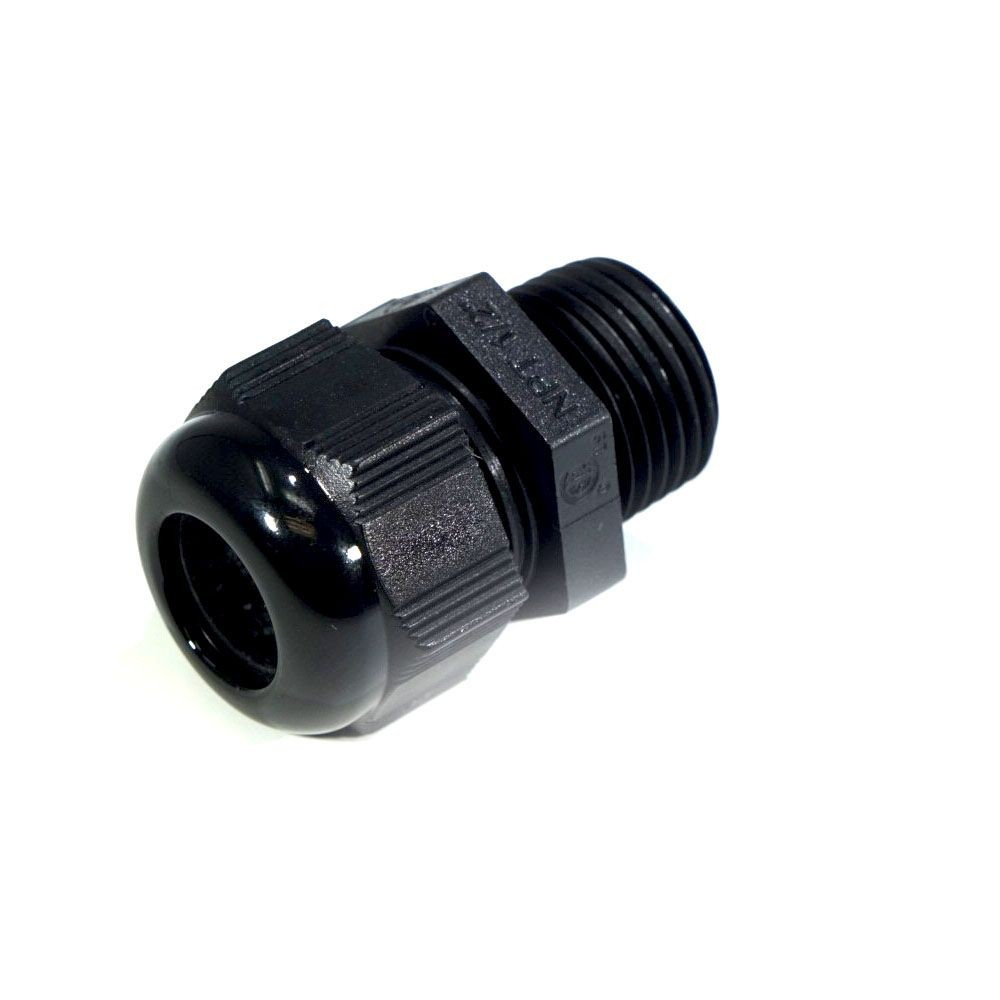

Product image for RMK RD09NA-BK Gland blk plymde 1/2
Email

RMK RD09NA-BK Gland blk plymde 1/2

Manufacturer: Remke | Catalog # RD09NA-BK | North Coast Part # 1801605
$3.21/ea
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Dome Cap Cable Gland, black, Polyamide, 3/8" NPT, cable range .19 - .39

Technical Information

Applications
Dome Cap Cable Glands provide easy handling, quick installation, impact & abrasion resistant.
Body Material
Polyamide
Conduit Size
3/8
Connector Material
Polyamide
IP Rating
IP68
Material
Polyamide
Max Temperature
176 degrees F
Min Operating Temperature
-20 degrees C
Min Temperature
-20 degrees C
NEMA Size
6
Operating Temperature
80 degrees C
Size
3/8 in
TC Connection
Male Threaded X Compression
Temperature Rating
-20 to 80 C
Thread Size
3/8
Thread Type
NPT
Type
Dome Cap Cable Gland, Non-Metallic NPT Thread

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Remke Industries
Sub Brand
Tuff-Seal

General Product Info

12-Digit UPC
785411506494
Box Quantity
50
Color
Black
GTiN
00785411506494
Product UPC
78541150649

Certifications and Compliance

Country of Origin
Turkey
Features
  • Dome Cap Cable Glands provide easy handling, quick installation, impact & abrasion resistance even at very low temperatures.  These connectors are designed to withstand the rigors of continuous flexing & bending with ease and can be used with a wide range of cables both indoors & outdoors.
  • Standard nylon connectors in a wide range of sizes with either NPT or Pg threads.
  • The family of Dome Cap Cable Glands includes:
  • UL & CSA Approved and exceeding NEMA 6 specifications, Dome Cap Cable Glands are also IP 68 rated making them suitable for use underwater to 130 feet.
  • A Spiral-Flex extended version for a greater level of strain relief, preventing sharp bends or kinks, and for additional damage protection from moving machinery or machine parts.
  • A variety of nickel-plated brass connectors in NPT, ISO/Metric and Pg threads that are ideal for use in a wide variety of applications including corrosive and industrial environments.
  • 90 degree Snap Elbow non-metallic cable gland with NPT threads
  • EN 50262-compliant EMC cable glands equipped with 6 internal fingers that clamp onto the cable shielding to provide 360° electromagnetic interference.  Available with ISO/Metric or NPT threads.
  • Ventilation Plugs that reduce the adverse affects of humidity in the environment by preventing pressure increase inside the enclosure & limiting temperature increase through air circulation.  Vent plugs are permeable to gases and vapors but impermeable to liquids and dust.
  • Accessories including O-Rings, Locknuts and Blind Stop Plugs.
TUFF-SEAL™ Engineered Solutions Are Second To None
  • In the Tuff-Seal family of Cord Connectors & Wire Mesh Grips customization means you can mix and match from our extensive selection of special materials, wire mesh, components, threading, custom packaging, kitting and private labeling to develop the wire management Cord Connectors & Wire Mesh Grips that meets your specific needs.
Special Materials
  • Aluminum - excellent durability and performance for most industrial applications
  • Nylon - lightweight and corrosion resistant
  • Steel - preferred in rugged industrial environments
  • Valox® - suitable for FDA-mandated washdown locations
  • Stainless Steel - the highest levels of durability in severely corrosive environments
  • Nickel-Plated Aluminum - protection against corrosion, friction & contamination with the appearance of polished stainless steel
Special Wire Mesh
  • A variety of materials including non-magnetic tin coated bronze, stainless steel, galvanized steel, plastic-coated galvanized steel strands, and non-metallic strands
Special Components/Options
  • Multiple hole bushings in a variety of hole combinations
  • Slit bushings
  • Various bushing materials including neoprene, silicone, Viton™, and buna-N
  • Locknuts
  • Embedded O-Rings
  • Application-specific requests
Special Threading
  • NPT
  • Pg
  • ISO (metric)
  • NPS
  • Applicaton-specific requests
