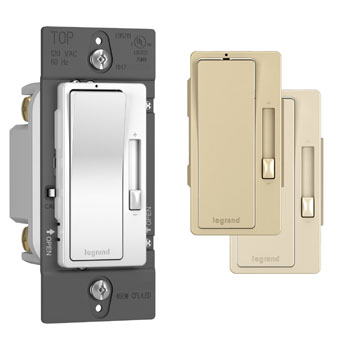

Product image for P&S RHL743PTC RAD CFL/LED SP/3W 450
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

P&S RHL743PTC RAD CFL/LED SP/3W 450

Manufacturer: Legrand / Pass & Seymour | Catalog # RHL743PTC | North Coast Part # 1805540
$168.70 /ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
Upgrade your space with precise dimming control and exceptional style. This dimmer from the radiant® Collection is optimized for use with LED bulbs and fixtures compliant with the SSL 7A standard for energy efficiency. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Amperage
15 Amp
Applications
Residential
Bulb Compatibility
LED
Connection Type
Screw-Type Terminals
Enclosure
Thermoplastic
Frequency
120 Hz
Material
Steel,Thermoplastic
Mounting Type
Box
Number of Gangs
1 Gang
Number of Poles
3 Pole
Number of Switches
1
Operating Temperature
Ambient Temperature: 0degrees and 40degrees C
Switch Type
Paddle
TC Connection
Screw Terminals
Type
Dimmer
Voltage
120 Volt
Wattage
300 Watt

Manufacturer Information

Brand
Legrand
Sub Brand
radiant

General Product Info

12-Digit UPC
785007133875
Color
Ivory,Light Almond,White
Environmental Conditions
0 to 95 PCT
Finish
Matte
GTiN
00785007133875
Product UPC
78500713387

Dimensions

Depth
1 Inch
Height
3.18 Inch
Warranty Length
Limited Lifetime
Width
1.29 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • SSL 7A - Compliant, this dimmer is for use with LED bulbs and fixtures also designed to the SSL 7A standard for efficiency. For use in both single-pole and 3-way applications.
  • Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
  • Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
  • Constant memory features returns lights to their previous level after a power failure or outage.
  • No derating* required for 2-gang applications. * Reducing the maximum wattage a dimmer can handle. This is sometimes required for multi-gang applications.
  • Features durable, high-impact resistant thermoplastic construction.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Certifications
  • UL Listed
  • cULus Listed
