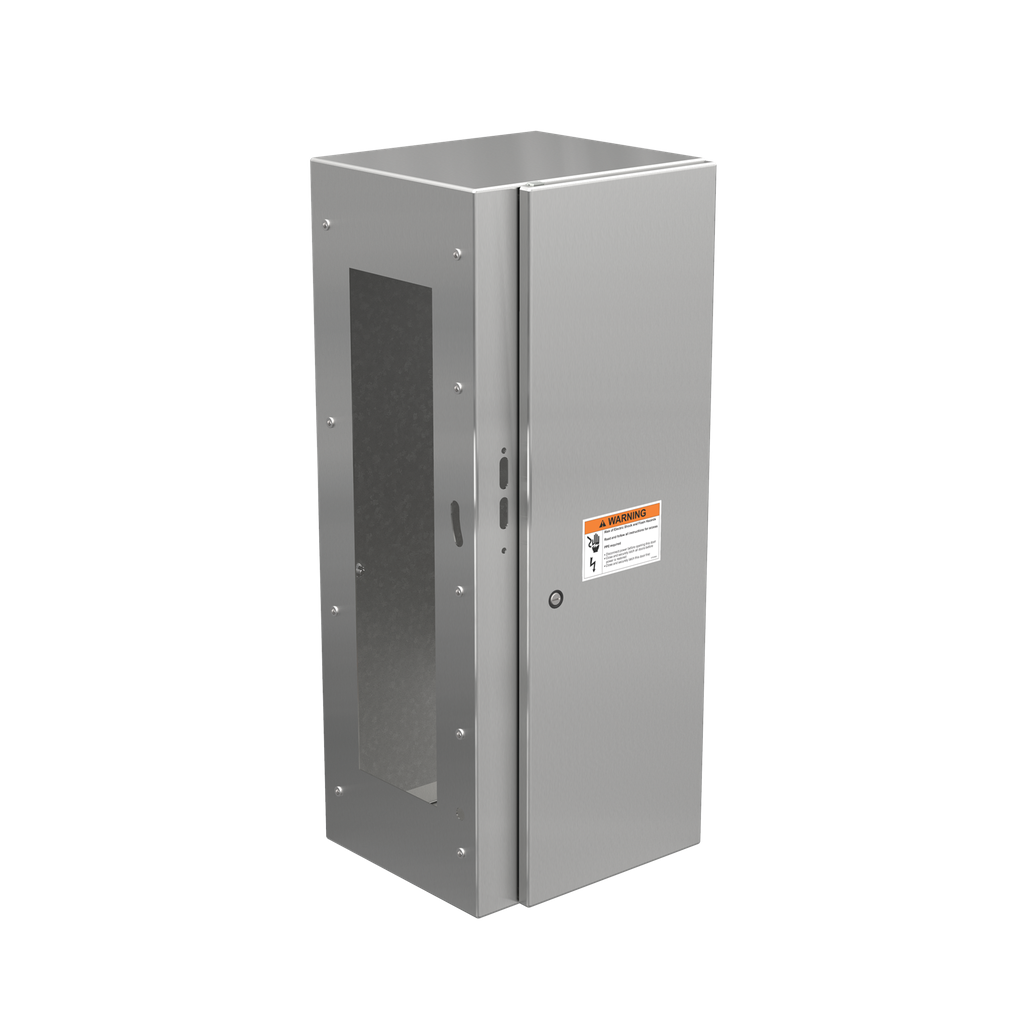

Product image for NVENT HOF AXD341412SS SEQUESTR Low
Email

NVENT HOF AXD341412SS SEQUESTR Low

Manufacturer: nVent Hoffman | Catalog # AXD341412SS | North Coast Part # 1811382
$4,516.94/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Sequestr Low-Amp isolates disconnect increasing system safety during maintenance applications. This Sequestr Low-Amp External Disconnect 4X, AXD341412SS item measures 34.45x14.00x12.13 inch with material of SS304 finish Brushed.

Technical Information

Applications
Arc Flash Safety; Controls and Drives; Power Distribution
Material
Stainless Steel
Size
34.45 x 14.00 x 12.13 inch
Type
SEQUESTR Preferred Cutout Disconnects

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Sequestr

General Product Info

12-Digit UPC
783510382711
Finish
Brushed
GTiN
00783510382711
Product UPC
78351038271
Weight
65 lb

Dimensions

Depth
12.13 Inch
Height
15 Inch
Length
38 Inch
Thickness
2 mm
Width
14 in
Features
  • Seams continuously welded and ground smooth
  • Interlocks with doors of main enclosure when the disconnect handle is powered ON to prevent opening when energized
  • Disconnect handle mounts on main enclosure or Sequestr
  • Designed to house cable-operated or variable-depth rod disconnect switches or breakers for mounting flexibility
  • Maintains UL Type rating of main enclosure
  • Quarter-turn, slotted 3-point latch installed; padlocking handle shipped loose to provide additional level of security
  • Conductive back panel included
  • Hinged on right side
  • Removable door with stainless steel hidden hinges for clean, aesthetic appearance
  • Bonding provision on door
  • Mounting and interlocking hardware included
