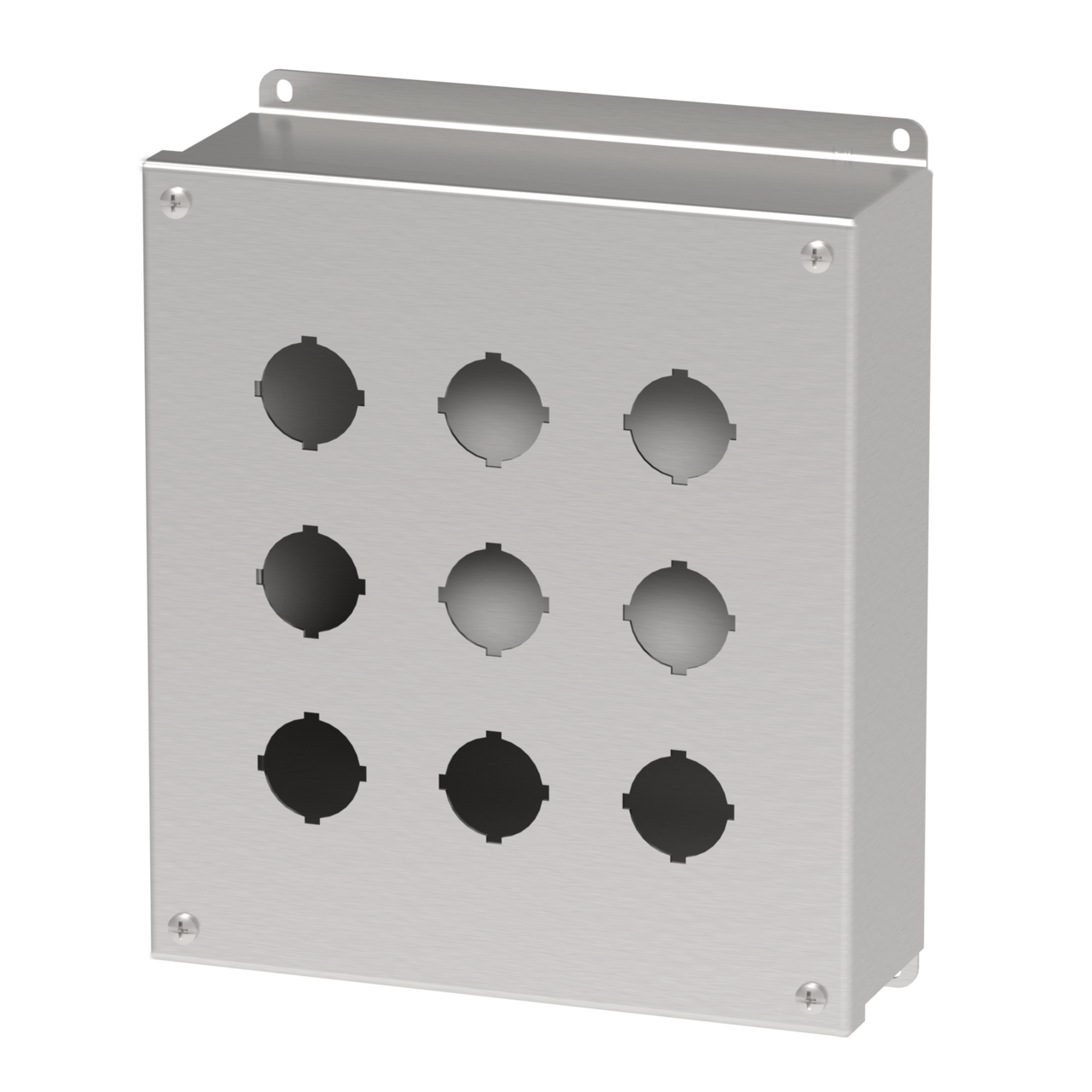

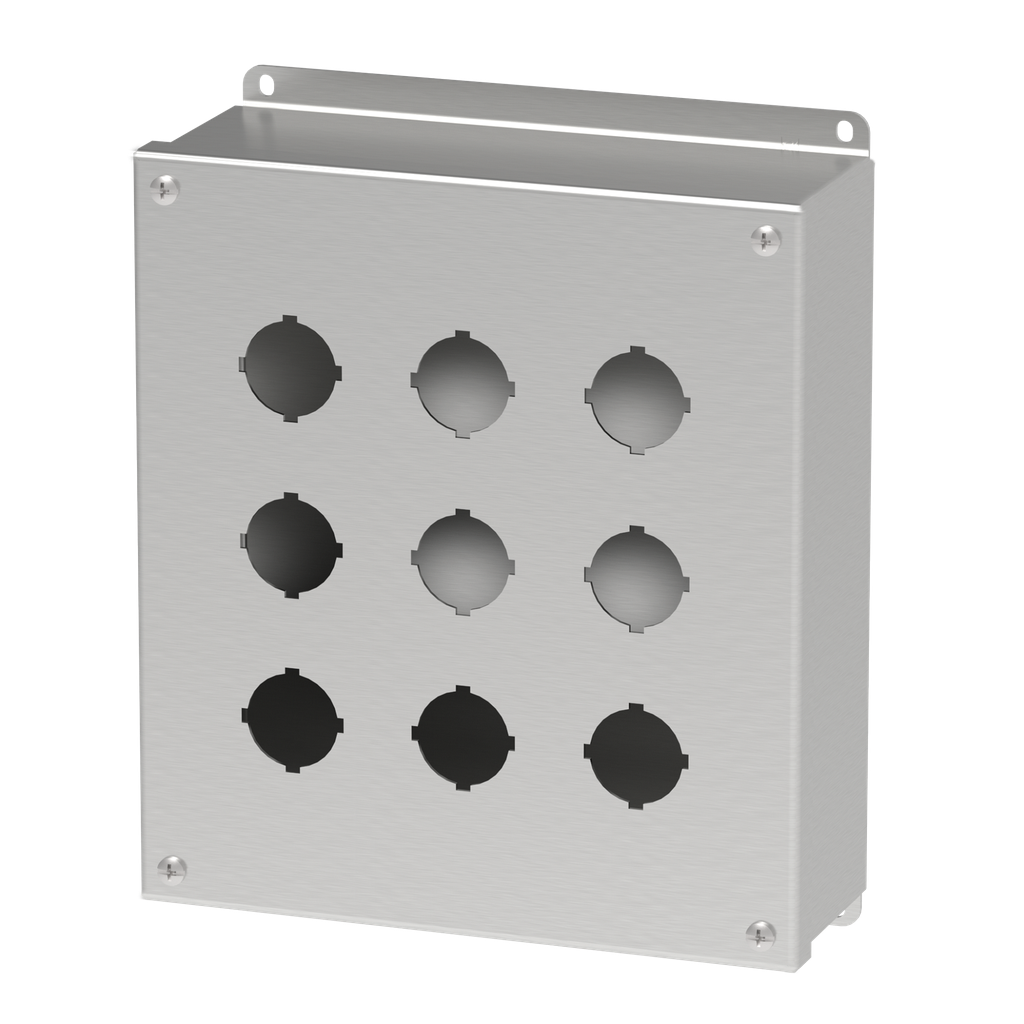

Product image for Hoffman E9PBSS 30.5-mm and 22.5-mm Pushbutton Enclosures, Type 4X, 9PB x 30.5mm, SS Type 304
Image thumbnail 0
Image thumbnail 1
Email

Hoffman E9PBSS 30.5-mm and 22.5-mm Pushbutton Enclosures, Type 4X, 9PB x 30.5mm, SS Type 304

Manufacturer: nVent Hoffman | Catalog # E9PBSS | North Coast Part # 181521
$1,016.28/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Punched specifically to house either 30.5-mm or 22.5-mm oil-tight pushbuttons, switches and pilot lights. Enclosures provide protection against dirt, dust, oil and water. See Mild Steel chapter for related mild steel enclosures.

Technical Information

Applications
Controls and Drives, Corrosive Environments, Hygienic Environments, Installation Housing
Gauge
14 AWG
Material
Stainless Steel
Number of Holes
9 Hole
Size
9PB x 30.5mm
Standard
12,13,4X,CSA File Number 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File Number E61997,IEC 60529,IP66,NEMA/EEMAC Type 4X,Type 4,UL 508A Listed
Type
9 Hole, Watertight, Corrosion-Resistant

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510596606
Color
Unpainted
Finish
Brushed
GTiN
00783510596606
Product UPC
78351059660
Used With
30.5 mm Push Button
Weight
5.9 lb

Dimensions

Depth
76 mm
Height
241 mm
Hole Size
30.5 mm
Length
10-1/2 Inch
Thickness
1.98 mm
Width
216 mm
Features
  • Prepunched 30.5mm or 22.5mm holes
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on door; grounding nut on body
  • 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
  • Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
  • Oil-resistant gasket
