Philips Advance 71A8007001DB 120 VAC 60 Hz 100 W High Pressure Sodium Ballast Kit

Manufacturer: Advance Transformer | Catalog # 71A8007001DB | North Coast Part # 182477

$157.64/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Order by Friday 4:00pm PT for delivery Monday
Out of stock, call for availability

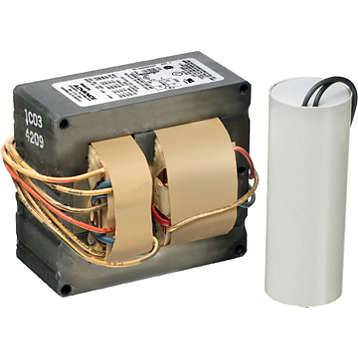

The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire. The core and coil also forms the nucleus of Philips Advance's five other ballast configurations.

Technical Information

Applications
Lighting Luminaire Component
Ballast Factor
1
Ballast Type
Magnetic HID
Blade Dimensions
66.675 mm L x 55.5625 mm W x 76.2 mm H
Frequency
60 Hz
Input Current
1.05 A
Input Wattage
115 W
Lamp Type
100 W S54 High Pressure Sodium
Lamp Wattage
100 W
Number of Lamps
1
Power Factor
0.90
Power Rating
100 WTT
Start Type
PULSE
Thermal Protection
CLASS P
Type
Magnetic HID
Voltage
120 Volt
Wattage
100 Watt
Wire Type
Stranded

Manufacturer Information

Family Brand Name
Philips Lighting

General Product Info

GTiN
00781087026304
Product UPC
78108702630
Weight
3.55 LB

Dimensions

Height
2.2 Inch
Length
2.2 in
Width
1.8 in
