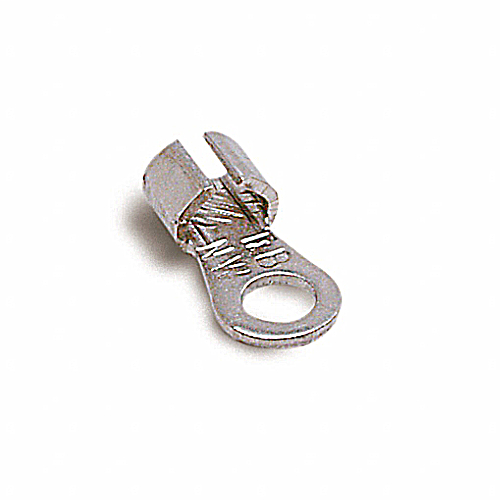

Product image for Thomas & Betts NW14-10 #10 Bolt Hole 16-14 AWG Wire Range Non-Insulated High Temperature Ring Terminal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Thomas & Betts NW14-10 #10 Bolt Hole 16-14 AWG Wire Range Non-Insulated High Temperature Ring Terminal

Manufacturer: Thomas & Betts | Catalog # NW14-10 | North Coast Part # 183456
$390.75/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

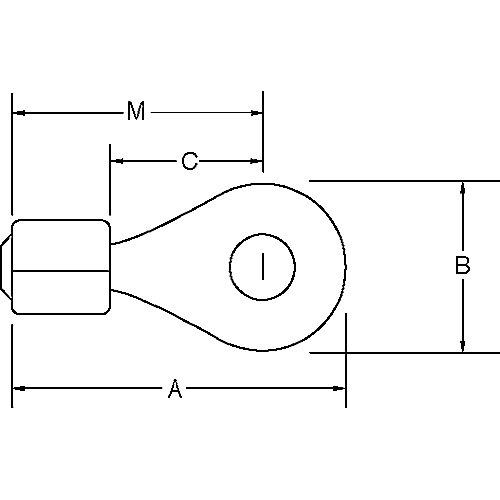

Non-Insulated High-Temperature Ring Terminal, Length .66 Inches, Width .31 Inches, Bolt Hole #10, Wire Range #16-#14 AWG, 1200 Degree Fahrenheit Maximum, Nickel Alloy, Plain Finish

Technical Information

Conductor Size
16-14 AWG
Material
Nickel
Stud Size
#10
Temperature Rating
1200 degrees F
Type
Short Sleeve
Voltage
600 Volt
Wire Size
16-14 AWG V

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210769806
Color
Metallic
GTiN
05414363156093
Product UPC
78621076980
Used With
Round Conductors
Features
  • For easily installed, permanent terminations of solid, round, or stranded nichrome wires as used in toasters, heaters, etc.
Notes
  • Not available on Mylar Tape.
