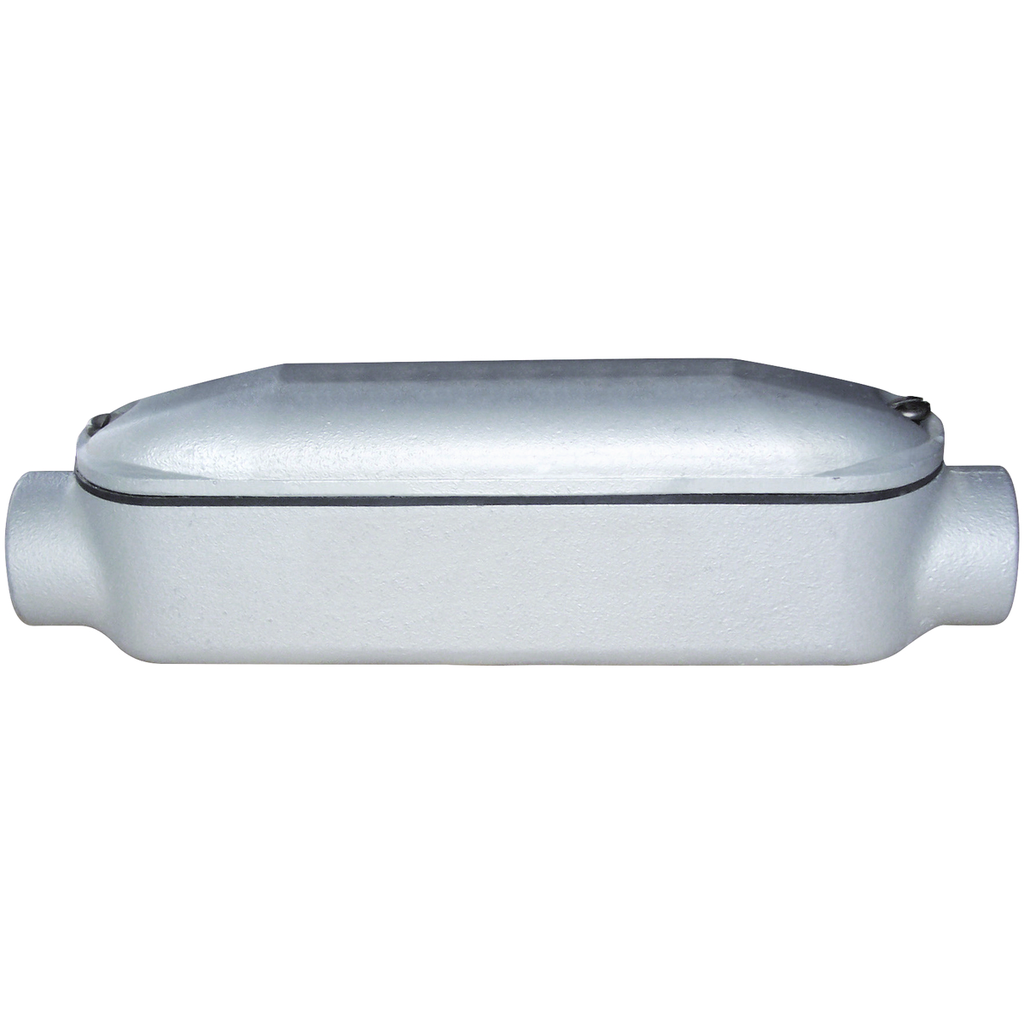

KLRK MOC-7-WR 2-1/2" ALUM MOGUL TYP

Manufacturer: Hubbell / Killark | Catalog # MOC-7-WR | North Coast Part # 1838679
$1,292.57/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
MO Series - Aluminum Mogul Conduit Body With Cover, Gasket, And Built-In Cable Rollers - C Type - Hub Size 2-1/2 Inch - Volume 465.0 Cubic Inches

Technical Information

Applications
Mogul fittings are for use with rigid and IMC raceways. Use where standard conduit bodies do not provide adequate access and wiring area for the pulling of large and heavy conductors. For right angle bends where splices, pulls, and taps are needed in a we
Hub Size
2 1/2 in
Material
Aluminum
Size
NEMA 1,NEMA 3
Type
Non-Reversing

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Killark

General Product Info

12-Digit UPC
783936555256
Color
Gray
Finish
Powder Epoxy Paint,Powder Epoxy Paint
GTiN
00783936555256
Product UPC
78393655525

Dimensions

Height
6 Inch
Length
28 Inch
Width
5 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • A raised dome cover permits additional wiring room
  • Furnished with captive ss screws and gasket
  • LBD, C and UB Series available with builtin cable-pulling rollers on sizes 1-1/2 and larger. Add -WR to catalog number. Example MOLBD-5-WR.
  • A raised dome cover permits additional wiring room. Furnished with captive ss screws and gasket. Built-in cable-pulling rollers. Volume is 465 cu. in.
