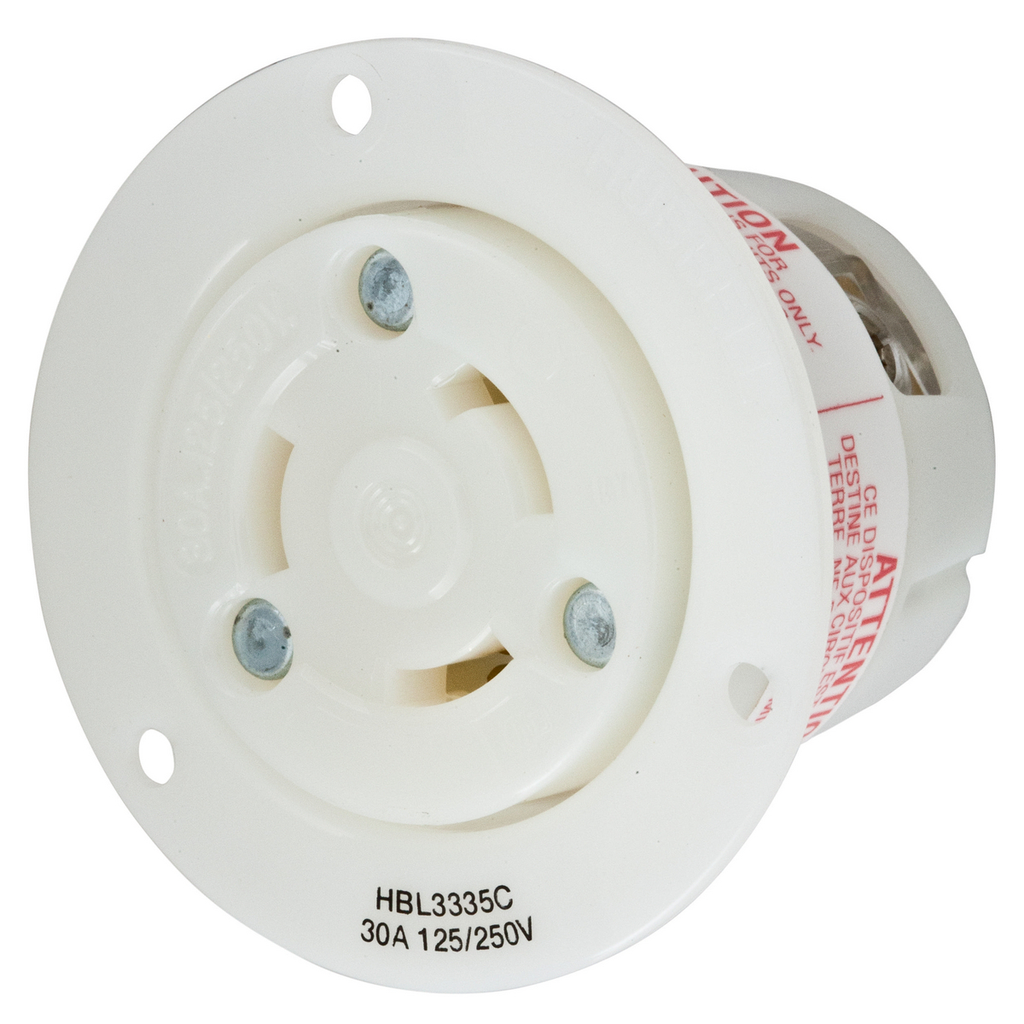

Product image for Hubbell HBL3335C 30 Amp 125/250 VAC 3-Pole 3-Wire Non-NEMA White Nylon Flanged Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL3335C 30 Amp 125/250 VAC 3-Pole 3-Wire Non-NEMA White Nylon Flanged Receptacle

Manufacturer: Hubbell / Kellems | Catalog # HBL3335C | North Coast Part # 184149
$173.11/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Flanged Receptacle, 30A 250/250V, 3-Pole 3-Wire Non Grounding, Non-NEMA, Screw Terminal, White.

Technical Information

Amperage
30 Amp
Applications
Insulgrip
Conductor Size
12-8 AWG
Connection Type
Screw Terminal
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Thermoplastic
Number of Conductors
3
Number of Phases
1 Phase
Number of Poles
3-3 Pole
Number of Ports
3
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized
TC Connection
Screw Terminal
Type
Standard
Voltage
125/250 Volt
Wattage
7500 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585039862
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585039862
Product UPC
78358503986
Weight
0.25 lb

Dimensions

Height
2.22 Inch
Length
2.88 Inch
Width
2.500 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard
