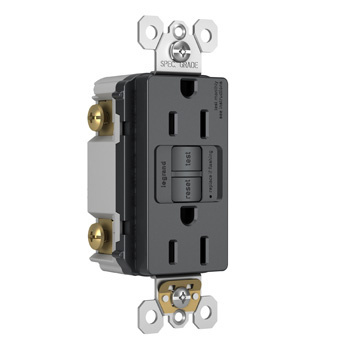

P&S 1597TRGCC4 RADIANT SELF TEST TR

Manufacturer: Legrand / Pass & Seymour | Catalog # 1597TRGCC4 | North Coast Part # 1845777
$54.61/ea
ea
Log in or register to view your price, purchase history, and more!
8 available

For Pick Up

at Auburn Opens Friday 5:00am PT
8 available

For Delivery

Order by Friday 4:00pm PT for delivery Monday
Not in local stock *
Check another branch
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
GFCI receptacles from the radiant® Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection, GFCI receptacles make it easier to recognize and fix trips right where they happen . no more confusion at the breaker box. Maximize safety, in style, with GFCI protection featuring the sleek, clean lines of radiant.GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.

Technical Information

Amperage
15 Amp
Indoor Outdoor
Indoor
Mounting Type
Box
NEMA
15A
Number of Gangs
1 Gang
Outlet Type
GFCI,Indoor,Self-Test,Tamper-Resistant
Voltage
125 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
adorne

General Product Info

12-Digit UPC
785007173727
Color
Graphite
Finish
Graphite
GTiN
00785007173727
Product UPC
78500717372

Dimensions

Depth
1.13 Inch
Height
4.2 Inch
Warranty Length
1 yr
Width
1.73 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Certifications
  • cULus Listed
  • UL Listed
Features
  • Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device.
  • Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced.
  • Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
  • Extends GFCI protection to \"\"downstream\"\" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly.
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with \"\"invisi-shutters\"\" for an invisible effect.
  • Replaces any standard receptacle with ease, in as little as 10 minutes.
  • Features durable, high-impact resistant thermoplastic construction.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.

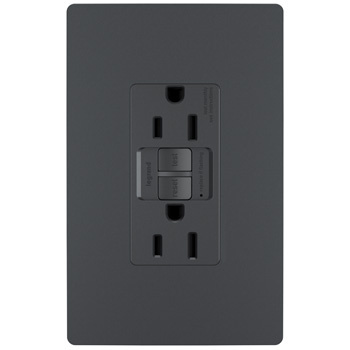

  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
