NSI STL250-8 Transformer Lug (8) 25

Manufacturer: NSi Industries | Catalog # STL250-8 | North Coast Part # 1847571
$307.56/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet

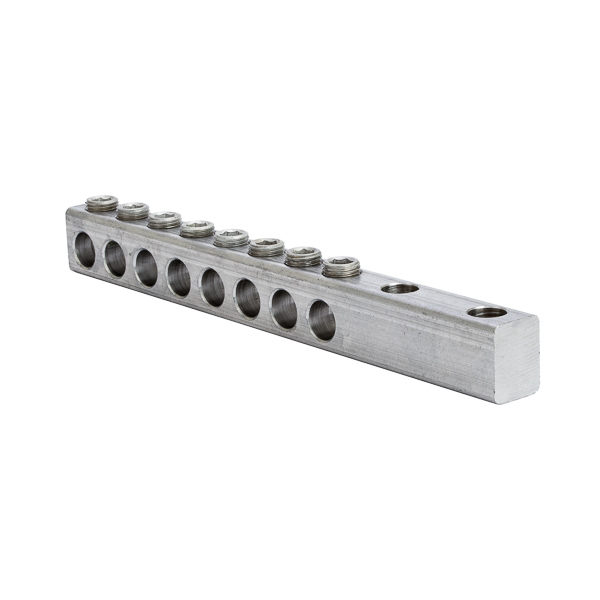

8 Port Aluminum Dual Rated Transformer Connector 250 MCM - 6 AWG Transformer Connectors are made from 6061T-6 aluminum alloy. They are electro-tin plated for low contact resistance. Two NEMA 1/2" holes for easy attachment. Rated 600 volts.

Technical Information

Applications
Wire Termination
Bolt Size
1/2 IN
Conductor Size
250 kcmil
Enclosure Rating
90 C
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Mounting Hole
2
Number of Conductors
8,8
Number of Poles
1 Pole
Number of Ports
8
Temperature Rating
90 degrees C
Type
Transformer Lug
Voltage
600 Volt
Wire Size
250 kcmil

Manufacturer Information

Brand
NSI Industries
Sub Brand
Mechanical Connector

General Product Info

12-Digit UPC
662381097026
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381097026
Product UPC
66238109702

Dimensions

Height
1-1/8 Inch
Length
9.68 Inch
Warranty Length
1 yr
Width
0.875 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Made from 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance
  • Two NEMA 1/2 inch holes for easy attachment
