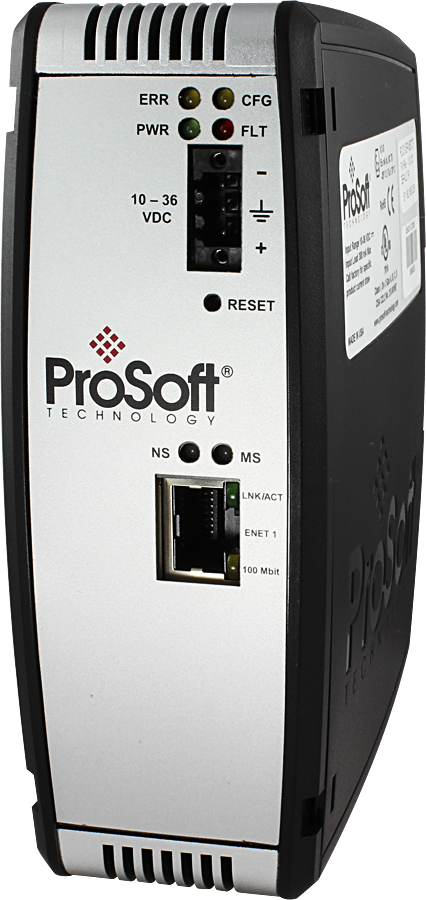

PROSOFT PLX31-EIP-MBTCP ETHERNET/IP TO MODBUS TCP GATEWAY

Manufacturer: Prosoft Technology, Inc. | Catalog # PLX31-EIP-MBTCP | North Coast Part # 1869010
$1,539.99/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

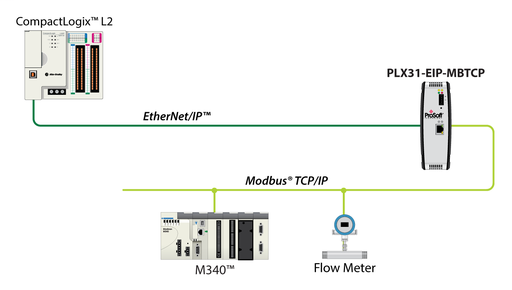

ProSoft Technology.s EtherNet/IP™ to Modbus® TCP/IP communication gateway allows high-speed bi-directional data transfers between EtherNet/IP™ enabled controllers or devices and Modbus® TCP/IP controllers or devices. Our Modbus® TCP/IP driver features multiple client and server functionality, for faster data transmission. In addition, the gateway includes several features, including data prioritization, that allow for simplified integration, reduced commissioning time and optimized performance.

Technical Information

Power Supply
24 VDC, 10 - 36 VDC
Temperature Rating
-25 to 70 degrees C
Type
Ethernet/IP to Modbus TCP/IP

Manufacturer Information

Brand
ProSoft Technology

General Product Info

12-Digit UPC
992231002529
Environmental Conditions
5 - 95% RH

Dimensions

Height
5.38 Inch
Length
1.99 Inch
Width
4.38 in
Features and Benefits
  • 4000 Word database
  • Multiple I/O Connections
  • Status data
  • Node Health
  • 10/100 Mb Ethernet port with Auto Cable Crossover Detection
