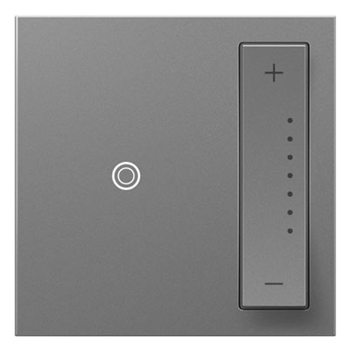

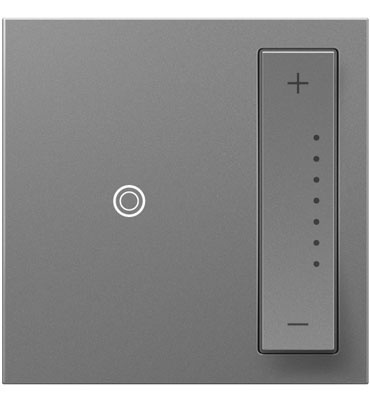

ADO ADTP703TUM4WP ADORNE KIT: 1-AWP

Manufacturer: Legrand / Pass & Seymour | Catalog # ADTP703TUM4WP | North Coast Part # 1869133
$178.87/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual CAD Drawing #1
Turn lights on/off, or dim, with just a soft tap of a finger, thanks to inventive micro-movement technology. Plus, as a Tru-Universal Dimmer, it works with virtually any 120V dimmable bulb or fixture, adjusting to the precise light level you want, without the flicker. Coordinating screwless Wall Plate included, for a sleek and contemporary aesthetic.

Technical Information

Actuator
SofTap
Bulb Compatibility
CFL,Fluorescent,HID,Halogen,Incandescent,LED,Universal,Xenon
Connection Type
Internal Pressure Plates
Indoor Outdoor
Indoor
Material
Polycarbonate
Mounting Type
Box
Number of Gangs
1 Gang
Number of Poles
3 Pole
Number of Switches
1.0
Style
sofTap
Switch Type
SofTap
Type
3-Wire
Voltage
120 Volt
Wattage
700 Watt

Manufacturer Information

Brand
Legrand
Sub Brand
adorne

General Product Info

12-Digit UPC
785007158502
Color
Magnesium
Finish
Frosted
GTiN
00785007158502
Product Series
Adorne SofTap Dimmer
Product UPC
78500715850

Dimensions

Depth
1.79 Inch
Height
5.13 Inch
Warranty Length
Limited Lifetime
Width
3.45 in

Certifications and Compliance

Country of Origin
China
Features
  • For complete installation, device must be paired with an adorne® screwless Wall Plate (not included). Available in a range of contemporary colors and stunning finishes.
  • Installs in 15 minutes or less, fitting into an existing electrical box; neutral wire required
  • Works with virtually any 120V dimmable bulb or fixture (excludes 0-10V)
  • Self-calibrates when you select your fixture's lighting type, automatically setting the appropriate minimum voltage to eliminate flicker and poor performance
  • Constant memory feature returns lights to their previous level when turning back on or after a power outage
  • Offers installation flexibility, working in both single-pole and 3-way applications
  • Usable in both single-pole and 3-way applications
  • More color options available to fit any style, including finishes to match current hardware and lighting trends
Certifications
  • UL Listed
