ABB K30-38 NON-INS - TUB RING TERM,

Manufacturer: Thomas & Betts | Catalog # K30-38 | North Coast Part # 187084
$2,292.94/c (100 ea)
ea
Order in multiples of 5 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Non-Insulated - Tubular Ring Terminal For Wire Range 3/0 Stud Size 3/8, Metallic

Technical Information

Barrel Type
Straight
Conductor Size
2/0-3/0 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated - Tubular
Material
Copper
Number of Holes
1 Hole
Standard
UL E9809
Stud Size
3/8 in
Temperature Rating
150 degrees C
Terminal Type
K
Type
Non-Insulated
Voltage
600 Volt
Wire Size
3 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803715
Color
Metallic
Finish
Tin Plated
GTiN
05414363153337
Product UPC
78621080371

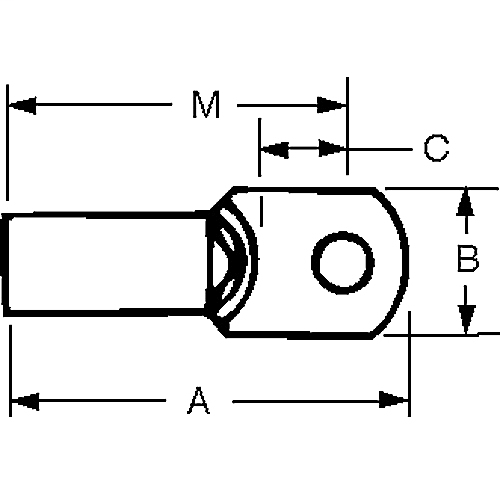

Dimensions

Height
2.9 Inch
Thickness
.06 in
Width
1.1 in
Notes
  • Not available on Mylar Tape.
Certifications
  • UL
  • CSA
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).
