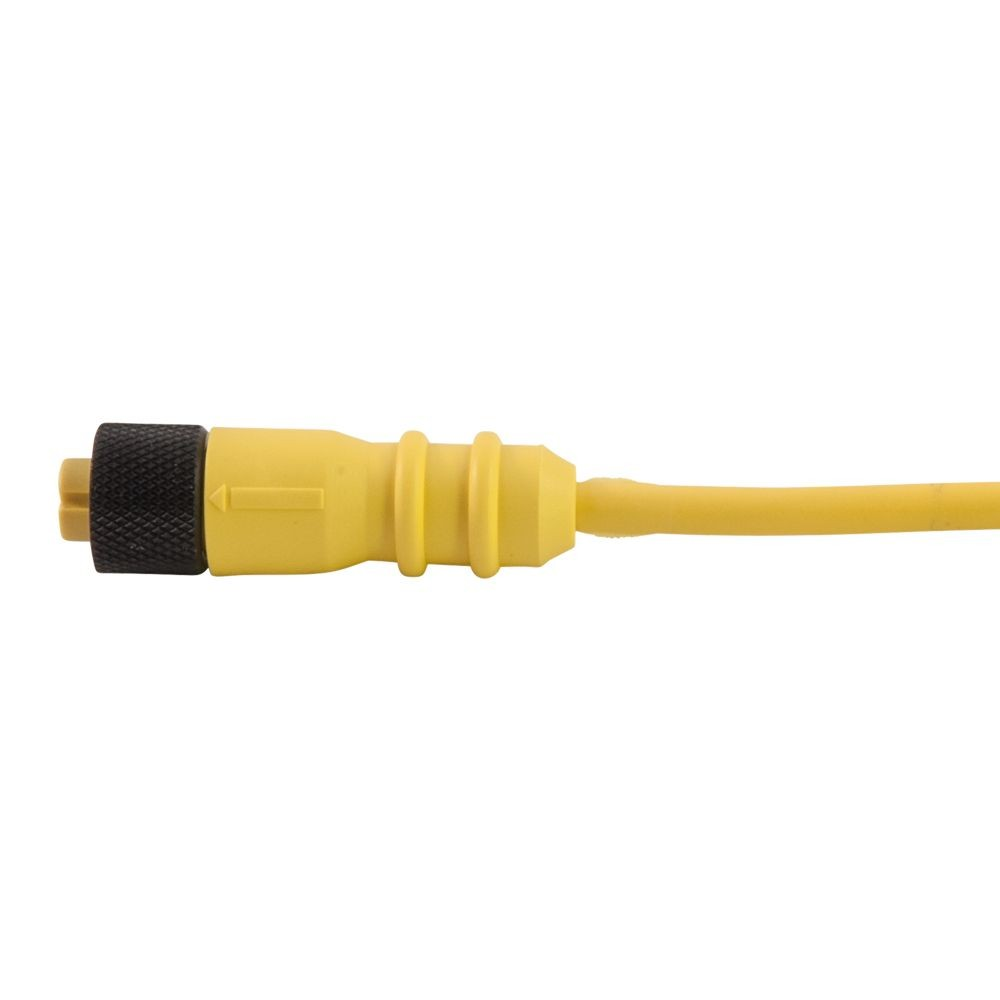

Product image for RMK 504A0164L Cordset Single Key PU
Email

RMK 504A0164L Cordset Single Key PU

Manufacturer: Remke | Catalog # 504A0164L | North Coast Part # 1871866
$149.08/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Single Key (M12) Micro-Link Plug Assembly, PUR, Female, 4 pole, 16.4', 22 AWG

Technical Information

Applications
Automotive assembly, conveyor sensors, pick & place robots & maerial handling equipment
Body Material
PUR
Conductor Material
Copper
Contact Material
Brass, Gold Plated Over Nickel,Nylon
Gauge
22 AWG
IP Rating
IP67
Material
Polyurethane
Max Temperature
176 degrees F
Min Operating Temperature
-20 degrees C
Min Temperature
-20 degrees C
NEMA Size
6P
Number of Conductors
4
Number of Poles
4 Pole
Operating Temperature
80 degrees C
Temperature Rating
-20 to 90 C
Type
Micro-Link, M12, PUR, Female, Straight Non-Braided
Voltage
250,300

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Remke Industries
Sub Brand
Tuff-Link

General Product Info

12-Digit UPC
785411808246
Color
Yellow
GTiN
00785411808246
Jacket Material
PUR
Product UPC
78541180824

Dimensions

Cable Length
16.4 ft
Diameter
0.19 Inch
Length
1.85 Inch
Warranty Length
1 yr
Width
0.57 in

Certifications and Compliance

Country of Origin
USA
Features
  • Micro-Link connectors have been designed for low amperage AC or DC control systems and are compatible with the pin configurations used by major U.S.and European sensor manufacturers.
  • The Remke family of Micro-Link connectors is available in four different materials - PVC, PUR, TPE and Rubber -  to protect against harsh conditions as well as environmental & temperature concerns.  This family of connectors, cable assemblies and receptacles offer NEMA 6 and IP 68 protections in 2 thru 6 pole configurations, male & female, straight or 90 degree, single or dual keyway styles.
  • Pin configurations used by major U.S. & European sensor manufacturers
  • Features of the family of Micro-Link Molded Connectors & Cordsets include:
  • Machined contacts(instead of stamped contacts) for highly accurate tolerances
  • Gold-plated contacts for enhanced corrosion resistance and conductivity
  • High-impact resistant contact carriers for longer product life
  • Vibration-resistant design so the connector will stay securely fastened to the sensor or mating receptacle
  • Fast & easy replacement of 12mm to 18mm sensors, switches & control components
  • Shielded and splitter styles
TUFF-SEAL™ Engineered Solutions Are Second To None
  • In the Tuff-Seal family of Cord Connectors & Wire Mesh Grips customization means you can mix and match from our extensive selection of special materials, wire mesh, components, threading, custom packaging, kitting and private labeling to develop the wire management Cord Connectors & Wire Mesh Grips that meets your specific needs.
Special Materials
  • Aluminum - excellent durability and performance for most industrial applications
  • Nylon - lightweight and corrosion resistant
  • Steel - preferred in rugged industrial environments
  • Valox® - suitable for FDA-mandated washdown locations
  • Stainless Steel - the highest levels of durability in severely corrosive environments
  • Nickel-Plated Aluminum - protection against corrosion, friction & contamination with the appearance of polished stainless steel
Special Wire Mesh
  • A variety of materials including non-magnetic tin coated bronze, stainless steel, galvanized steel, plastic-coated galvanized steel strands, and non-metallic strands
Special Components/Options
  • Multiple hole bushings in a variety of hole combinations
  • Slit bushings
  • Various bushing materials including neoprene, silicone, Viton™, and buna-N
  • Locknuts
  • Embedded O-Rings
  • Application-specific requests
Special Threading
  • NPT
  • Pg
  • ISO (metric)
  • NPS
  • Applicaton-specific requests
Typical Applications Using Micro-Link Connectors
  • Automotive Assembly
  • Sensors on Conveyors
  • Pick and Place Robots
  • Packaging Machinery
  • Automated Machinery
  • Materials Handling Equipment
Products Which Typically Use Micro-Link Connectors
  • Proximity Sensors
  • Limit Switches
  • Photoelectric Switches
  • Solenoids
  • Hydraulic and Pneumatic Valves
