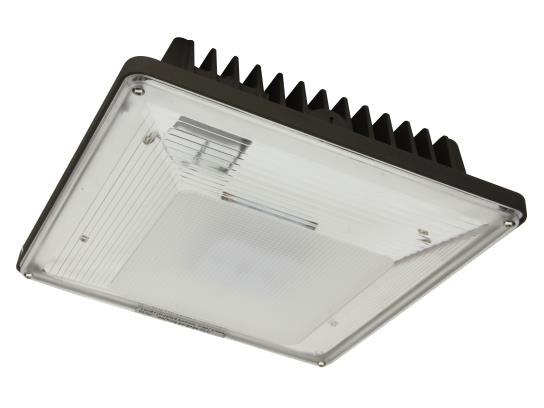

Product image for MXL CPL52BUP50BMS 58W LT FX
Image thumbnail 0
Image thumbnail 1

Email

MXL CPL52BUP50BMS 58W LT FX

Manufacturer: Maxlite Lighting | Catalog # CPL52BUP50BMS | North Coast Part # 1873468

$463.65/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Quick to install, the LED Low-Profile Canopy is the ideal retrofit solution for 100-250W HID garage and canopy luminaires. Offered in 20, 30, 40, and 53-watt versions, with different reflector options for parking garage and canopy distributions, the CPL can address a variety of application needs.The series offers 0-10V dimming drivers standard with an optional integral microwave motion sensor to negate interference on light output. Consuming 75 percent less energy than incumbent fixtures, the CPL series provides immediate payback and long-term energy and maintenance cost savings

Technical Information

Ambient Temperature
-104 degrees F
Average Rated Life
100000 hr
Beam Angle
Premium
Color Rendering Index
?70 CRI
Color Temperature
5000 K
Correlated Color Temp
5000 K
Efficacy
123 LPW
Input Voltage
120-277 V
Input Wattage
53 W
IP Rating
IP65
Lumens
6,352 Lumen
Max Operating Temperature
104 degrees F
Min Operating Temperature
-40 degrees F
Operating Frequency
50/60 Hz
Power Factor
0.9
Rating
UL Listed
Voltage
120-277 Volt
Wattage
53 Watt
Wattage Equivalent
250W MH

Manufacturer Information

Brand
MaxLite

General Product Info

12-Digit UPC
767627911811
Finish
Bronze
Product UPC
76762791181
Weight
5.9 lb

Dimensions

Height
3.84 Inch
Length
10.23 Inch
Warranty Length
5 yr
Width
10.23 in

Certifications and Compliance

Country of Origin
China
Features
  • Easy one-person installation, light weight with latch allowing both hands for wire connections hanging
  • 0-10V Dimming driver standard
  • Dusk-to-dawn and occupancy sensor compatibler
