ABB A483 NON-INS RECT RING TERM, 22

Manufacturer: Thomas & Betts | Catalog # A483 | North Coast Part # 1875516
$162.95/c (100 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

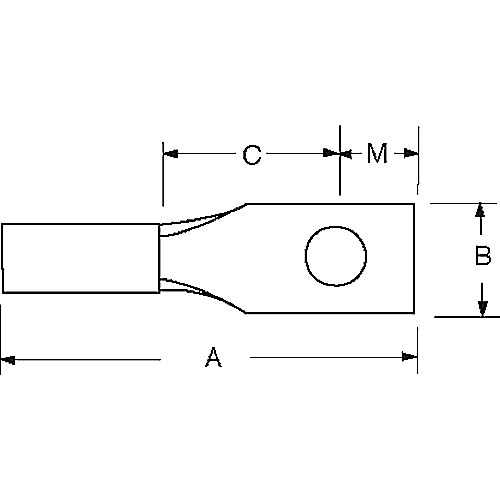

Non-Insualted Rectangular Ring Terminal, Length .70 Inches, Width .277 Inches, Bolt Hole #5, Wire Range #22-#18 AWG, Copper, Tin Plated

Technical Information

Barrel Type
Serrated
Conductor Size
22-18 AWG
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E9809
Stud Size
#5
Temperature Rating
150 degrees C
Type
Non-Insulated, Rectangular
Voltage
600 Volt
Wire Size
22-18 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210808680
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363147237
Product UPC
78621080868
Features
  • Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
Notes
  • A, B, C483 for use with BU-Ships terminal board types 8TB.
  • 22-18 ga. = 1-2 Navy
