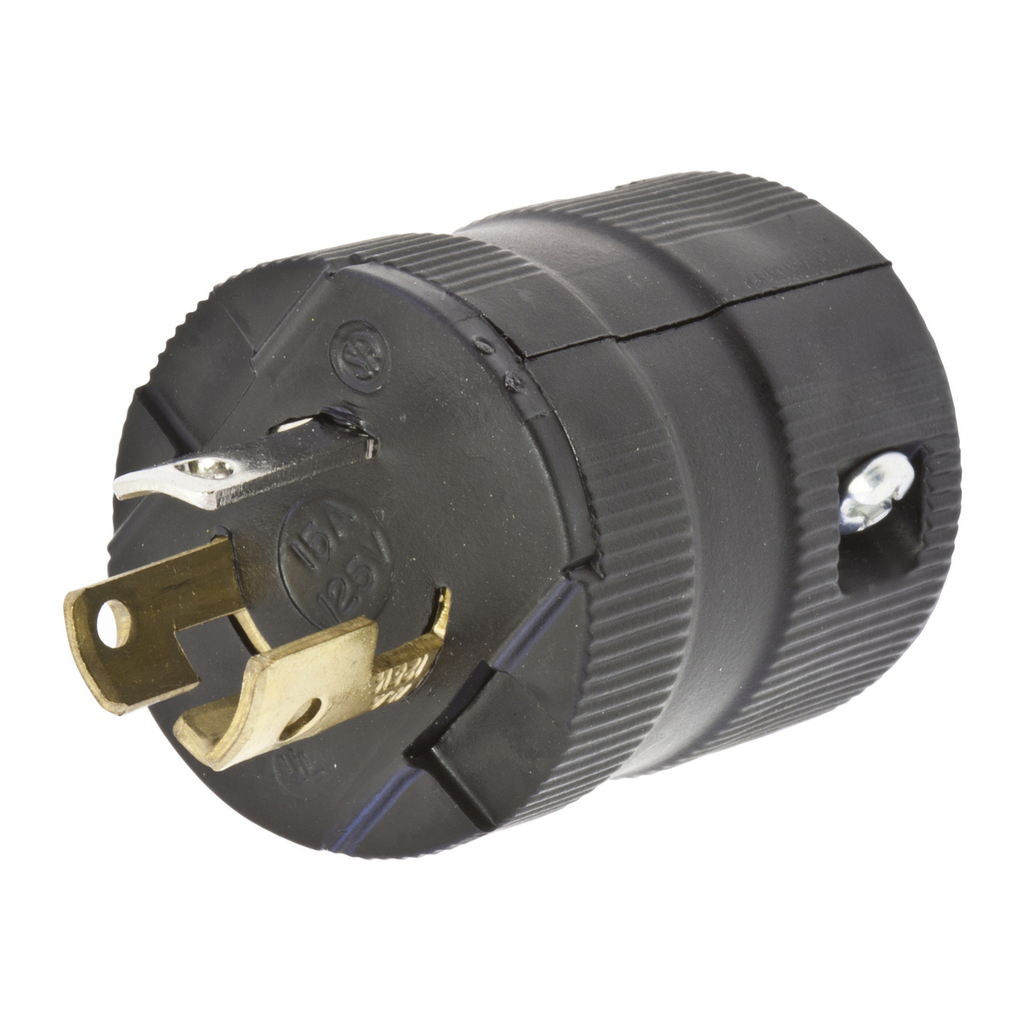

Product image for Hubbell HBL4723VBK Locking VAL Plug, 15A 125V, L5-15P, BK
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL4723VBK Locking VAL Plug, 15A 125V, L5-15P, BK

Manufacturer: Hubbell / Kellems | Catalog # HBL4723VBK | North Coast Part # 187746
$26.06/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual

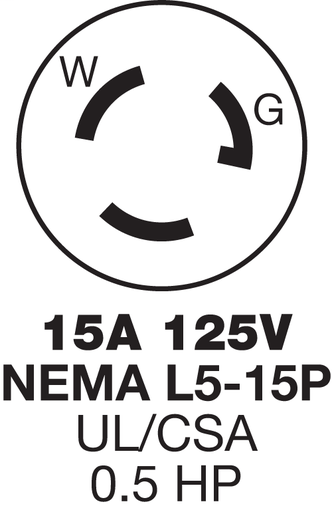

Locking Devices, Twist-Lock®, Valise®, Male Plug, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15P, Screw Terminal, Black Nylon.

Technical Information

Amperage
15 Amp
Applications
Power Connection
Conductor Size
14-12 AWG
Cord Type
Portable
Current
15 Amp
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Cord
NEMA
L5-20P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size

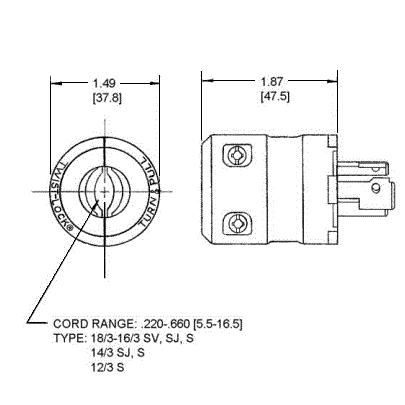

1.49 in x 1.49 in x 1.87 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Type
Standard Sized
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
18-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Valise®

General Product Info

12-Digit UPC
783585043241
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585043241
Product UPC
78358504324
Weight
0.10 lb

Dimensions

Height
1.87 Inch
Length
1.49 Inch
Width
1.49 in

Certifications and Compliance

Country of Origin
USA
Features
  • Two captive multiple drive assembly screws
  • Totally insulated impact and crush resistant nylon body
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
  • Standard Product
