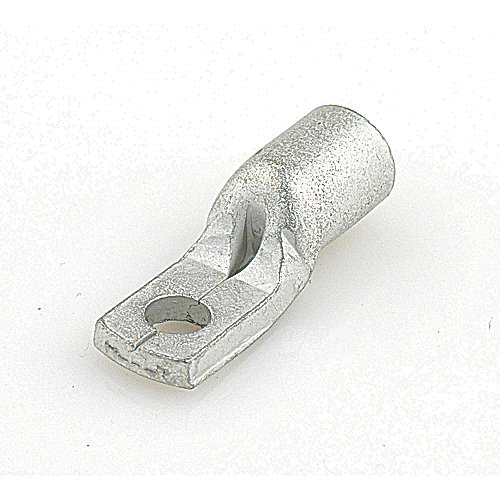

ABB MCCNT16M5 METRIC CU NARROW TNG

Manufacturer: Thomas & Betts | Catalog # MCCNT16M5 | North Coast Part # 1889753
$526.85/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

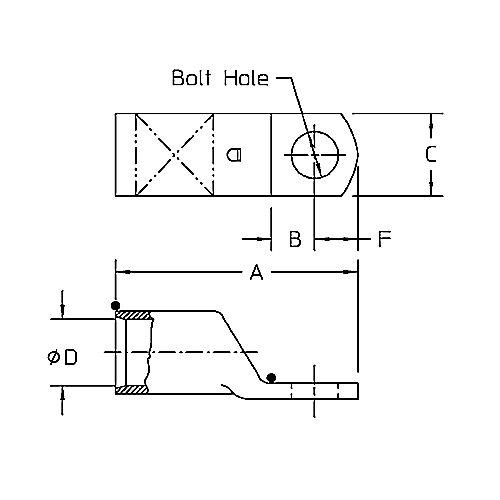

Copper One-Hole Metric Lug, Standard Barrel - Narrow Tongue, Peep Hole, Max 35kV, 16mm2 Wire Size, 5mm Bolt Size, Tin Plated

Technical Information

Barrel Length
Standard
Barrel Shape
Standard
Cable Size
16 mm2
Insulated?
No
Material
Copper,Copper
Number of Holes
1 Hole
Number of Studs
1
Stud Size
0.1969 in
Temperature Rating
105 degrees C
Tongue Angle
Straight
Tongue Width
Narrow
Type
Standard Barrel - Narrow Tongue
Voltage
35 kV
Wire Size
16 mm

Manufacturer Information

Brand
Color-Keyed

General Product Info

12-Digit UPC
786210958798
Box Quantity
1000
Finish
Tin Plated
GTiN
00786210958798
Product UPC
78621095879
Shape
Round
Features
  • Manufactured from seamless copper tubing that conforms to BS2781 with heavy-duty wall thickness, achieving maximum conductivity with low resistance.
  • Electro Tin-Plated for Corrosion Resistance. Chamfered Barrels Provide Ease of Strand Entry and Inspection hole facilitates full insertion of the conductor.
  • Cable Area Clearly Identified on Lug.
  • #N/A
