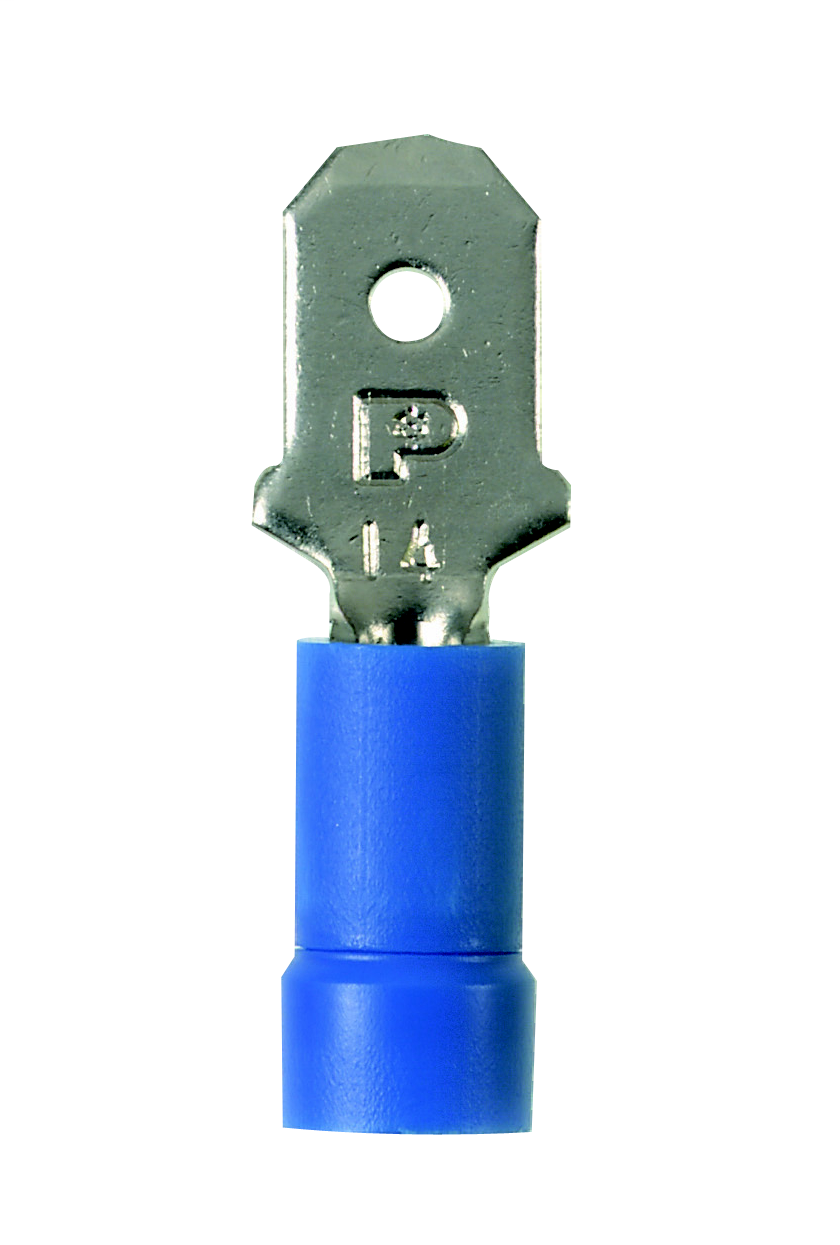

Product image for Panduit DV14-250MB-M 16-14 AWG Vinyl Barrel Insulated Male Disconnect
Image thumbnail 0
Image thumbnail 1

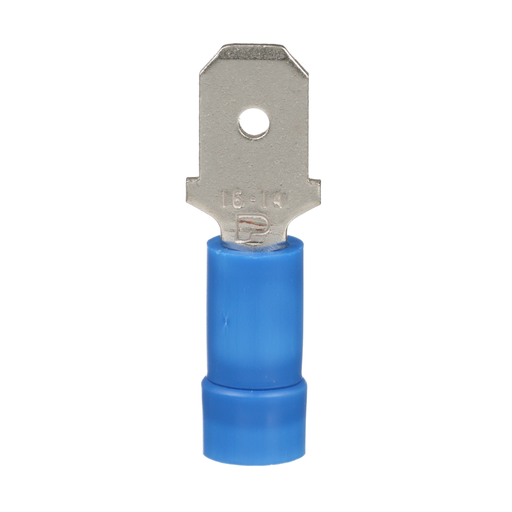

Image thumbnail 2

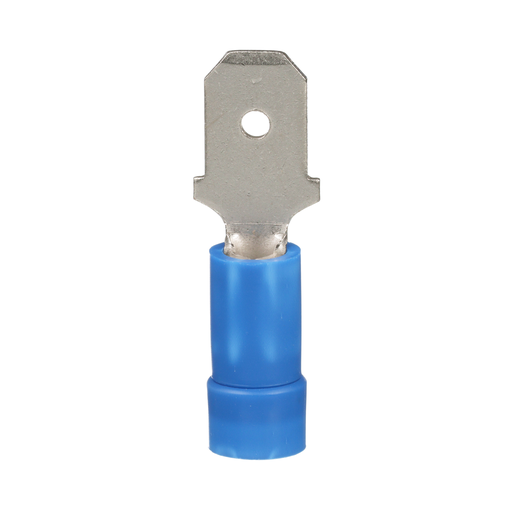

Image thumbnail 3
Email

Panduit DV14-250MB-M 16-14 AWG Vinyl Barrel Insulated Male Disconnect

Manufacturer: Panduit | Catalog # DV14-250MB-M | North Coast Part # 1893790
$512.46/m (1000 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet
The vibration resistant male disconnect is made of copper and is nickel-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.96" (24.4 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.

Technical Information

Barrel Type
Butted Seam
Color Coding
Blue
Conductor Size
16 AWG
Material
Copper
Max Operating Temperature
105 degrees C
TC Connection
funnel Entry
Temperature Rating
221 F
Type
Loose Piece Disconnect
Voltage
600 Volt
Wire Size
16-14 AWG

Packaging

Pkg Qty
1000

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term

General Product Info

12-Digit UPC
074983822263
Color
Blue
Finish
Nickel
GTiN
00074983822263
Product Type
Terminals
Product UPC
07498382226
UNSPSC
39121409

Dimensions

Height
0.18 Inch
Length
0.96 Inch
Overall Length
0.96 in
Width
6.4 mm

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
