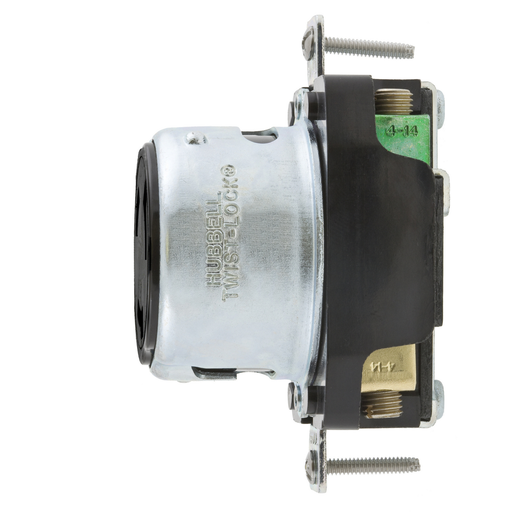

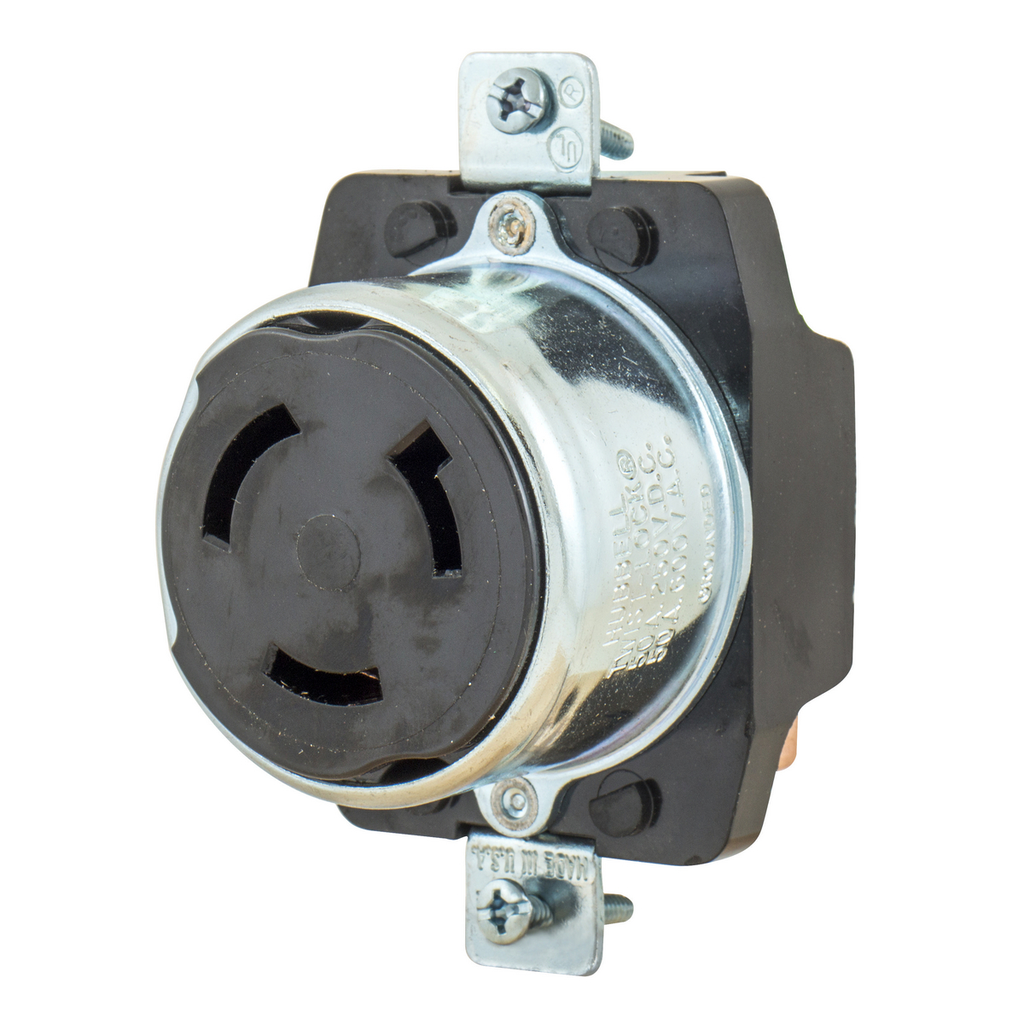

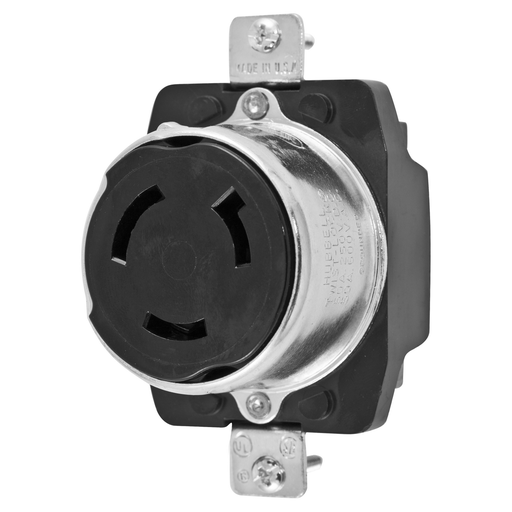

Product image for Hubbell HBL3771 50 Amp 600 VAC and 250 VDC 2-Pole 3-Wire Black Locking Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Hubbell HBL3771 50 Amp 600 VAC and 250 VDC 2-Pole 3-Wire Black Locking Receptacle

Manufacturer: Hubbell / Kellems | Catalog # HBL3771 | North Coast Part # 19062
$344.93/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Receptacle, 50A 250V DC/600 V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Phenolic, Black

Technical Information

Amperage
50 Amp
Applications
Heavy Duty Industrial
Conductor Size
10-6 AWG
Current
50 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Phenolic
Grade
Industrial
Material
Plastic
Mounting Type
Screw, Flush
Number of Phases
Multi Phase
Number of Poles
2 Pole
Number of Wires
4-Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,UL 498
TC Connection
Screw Terminal
Type
Heavy Duty, Multi-Phase
Voltage
250 Volt
Wattage
30000 Watt
Wire Count
3
Wire Size
8-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585236476
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585236476
Product UPC
78358523647
Weight
0.75 lb

Dimensions

Height
2.36 Inch
Length
3.28 Inch
Width
2.12 in

Certifications and Compliance

Country of Origin
USA
Features
  • Thermoset construction offers high heat resistance
  • Armored housing provides superior impact resistance
  • One piece contacts provide low operating temperatures
  • Standard
