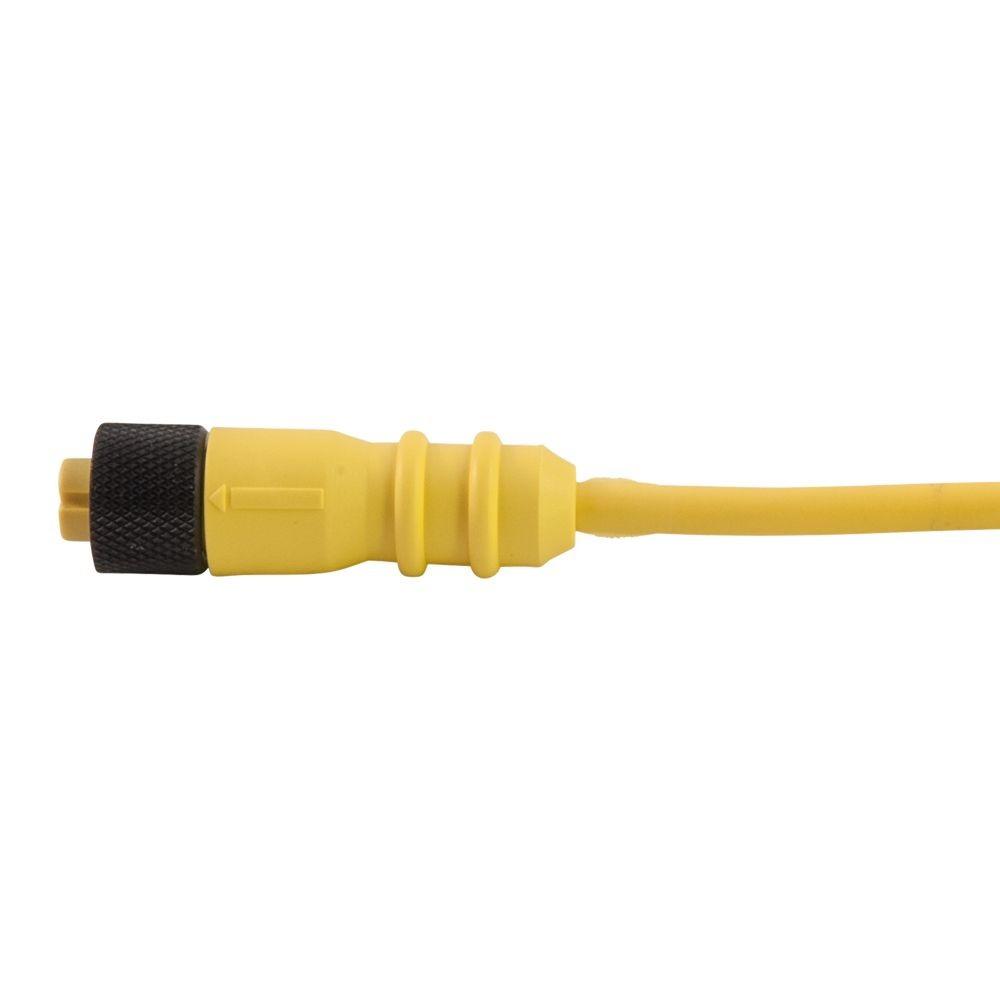

RMK 304A0066J Cordset Single Key PV

Manufacturer: Remke | Catalog # 304A0066J | North Coast Part # 1914672
$72.95/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Single Key (M12) Micro-Link Plug Assembly, PVC, Female, 4 pole, 6.6', 22 AWG

Technical Information

Applications
Automotive assembly, conveyor sensors, pick & place robots & maerial handling equipment
Body Material
PVC
Conductor Material
Copper
Contact Material
Brass, Gold Plated Over Nickel,Nylon
Gauge
22 AWG
IP Rating
IP67
Material
PVC
Max Temperature
105 degrees C
Min Operating Temperature
-20 degrees C
Min Temperature
-20 degrees C
NEMA Size
6P
Number of Conductors
4
Number of Poles
4 Pole
Operating Temperature
105 degrees C
Temperature Rating
-20 to 90 C
Type
Micro-Link, M12, PVC, Female, Straight Non-Braided
Voltage
250,300

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Remke Industries
Sub Brand
Tuff-Link

General Product Info

12-Digit UPC
785411804064
Color
Yellow
GTiN
00785411804064
Jacket Material
PVC
Product UPC
78541180406

Dimensions

Cable Length
6.6 ft
Diameter
0.19 Inch
Length
1.85 Inch
Warranty Length
1 yr
Width
0.57 in

Certifications and Compliance

Country of Origin
USA
Features
  • The Remke family of Micro-Link connectors is available in four different materials - PVC, PUR, TPE and Rubber -  to protect against harsh conditions as well as environmental & temperature concerns.  This family of connectors, cable assemblies and receptacles offer NEMA 6 and IP 68 protections in 2 thru 6 pole configurations, male & female, straight or 90 degree, single or dual keyway styles.
  • Features of the family of Micro-Link Molded Connectors & Cordsets include:
  • In the Tuff Link family of molded connectors & cordsets, customization means you can mix and match from our extensive selection of special materials, special hardware, special wiring, custom packaging, kitting and private labeling to develop the Molded Connector or Cordset that meets your specific needs.
  • Micro-Link connectors have been designed for low amperage AC or DC control systems and are compatible with the pin configurations used by major U.S.and European sensor manufacturers.
  • Pin configurations used by major U.S. & European sensor manufacturers
  • Machined contacts(instead of stamped contacts) for highly accurate tolerances
  • Gold-plated contacts for enhanced corrosion resistance and conductivity
  • High-impact resistant contact carriers for longer product life
  • Vibration-resistant design so the connector will stay securely fastened to the sensor or mating receptacle
  • Fast & easy replacement of 12mm to 18mm sensors, switches & control components
  • Shielded and splitter styles
Typical Applications Using Micro-Link Connectors
  • Automotive Assembly
  • Sensors on Conveyors
  • Pick and Place Robots
  • Packaging Machinery
  • Automated Machinery
  • Materials Handling Equipment
Products Which Typically Use Micro-Link Connectors
  • Proximity Sensors
  • Limit Switches
  • Photoelectric Switches
  • Solenoids
  • Hydraulic and Pneumatic Valves
For Coupling Nuts & Receptacle Bodies You Can Choose From These Five Types Of Special Materials
  • Anodized Aluminum - for most industrial applications
  • Stainless Steel durability in severely corrosive environments
  • Non-Metallic - best suited for damp locations
  • Nickel-Plated Brass - corrosion resistant & conforms to EMC requirements
  • Peek™ Polymers - ideal for applications with high temperatures or high pressure water.
For Overmolding And Cable Include The Following
  • Rubber for use in applications with extremes of temperatures, hot substrates like weld spatter, or where solvents, oil and coolants exist
  • Silicone that is best used in high temperatures
  • PVC which is best for general assembly applications
  • PUR for excellent abrasion resistance for high abuse areas
  • TPE that offers excellent chemical and abrasion resistance
Special Hardware
  • You can choose from a variety of custom shells, couplers or adapters.
  • Remke offers five types of custom shells; flange mount, panel mount, back panel mount, P.C. type and SAE or metric threading.
  • For couplers you can select either internally threaded, externally threaded or the housing protective type where the coupler is threaded but covers the entire sensor for protection.
Special Wiring
  • For custom products or specials, Remke offers several types of special wiring including: combination wiring where one side is parallel and the other is wired in series; interlocking circuit wiring; parallel wiring; series wiring; and wiring that is specified by a customer.
