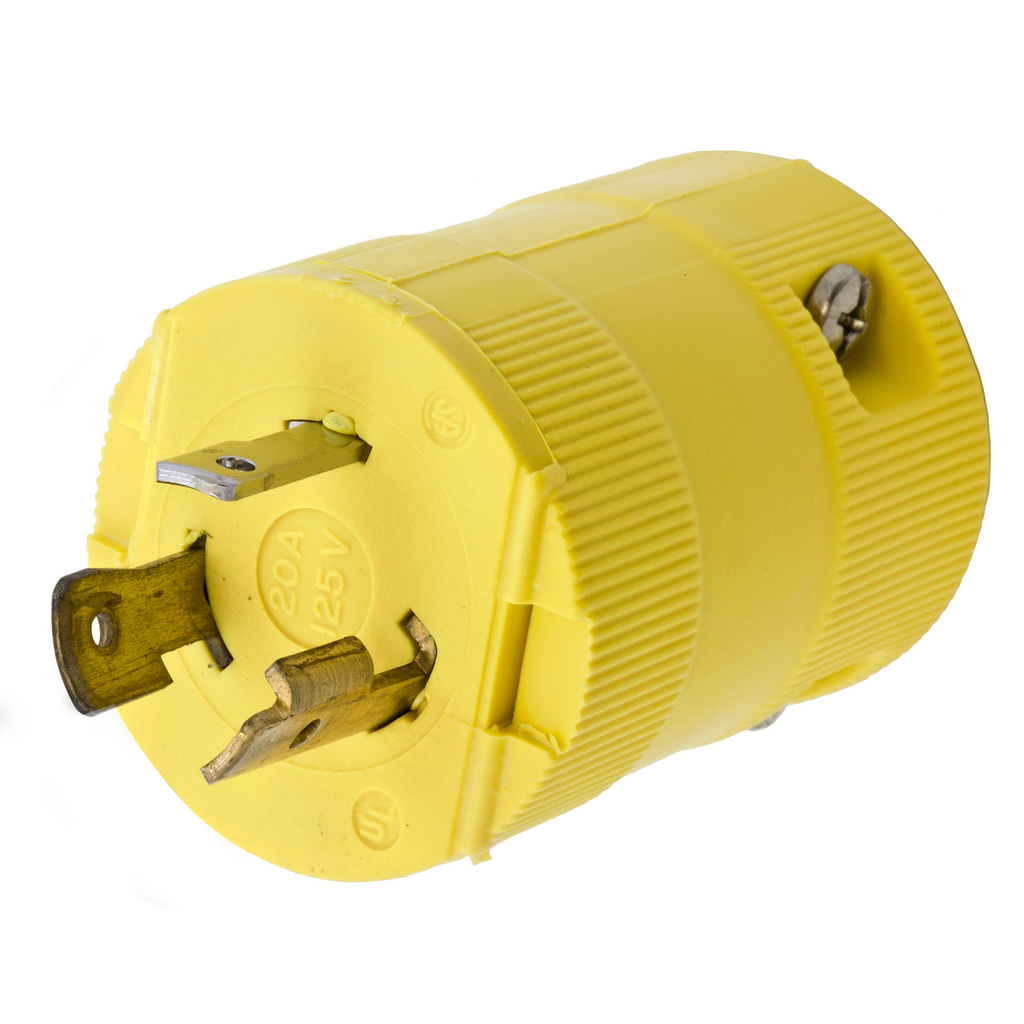

Product image for Hubbell HBL2311VY 20 Amp 125 Volt 2-Pole 3-Wire NEMA L5-20P Yellow Locking Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL2311VY 20 Amp 125 Volt 2-Pole 3-Wire NEMA L5-20P Yellow Locking Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL2311VY | North Coast Part # 191896
$31.85/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Valise®, Male Plug, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20P, Screw Terminal, Yellow Nylon.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
18-10 AWG
Cord Size
0.325 - 0.72 in
Cord Type
Portable
Current
20 Amp
Dielectric Strength
2000 V
Grounding
Yes
Horsepower
1 hp
Material
Nylon
Mounting Type
Cord
NEMA

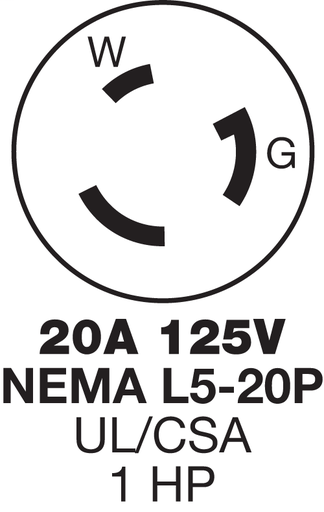

L5-20P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size

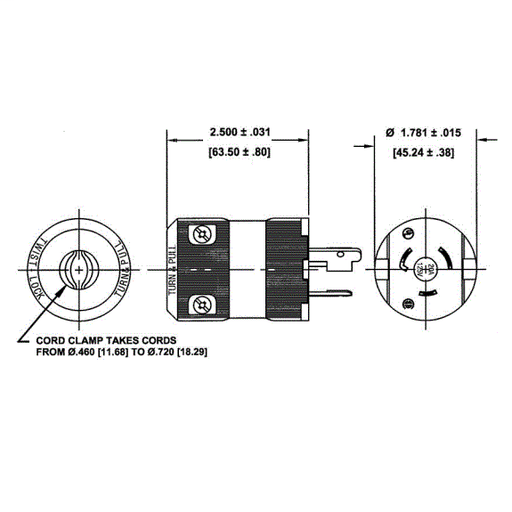

1.78 in x 1.78 in x 2.50 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard Sized
Voltage
125 Volt
Wattage
2000 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Valise®

General Product Info

12-Digit UPC
783585235530
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585235530
Product UPC
78358523553
Weight
0.30 lb

Dimensions

Height
2-1/2 Inch
Length
1.78 Inch
Width
1.78 in

Certifications and Compliance

Country of Origin
USA
Features
  • One piece body design uses less fasteners for ease of assembly
  • Powerful cord grip prevents conductor slippage and strain on wiring terminals
  • Totally insulated impact and crush resistant nylon body
  • Unique patented clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
  • Standard Product
