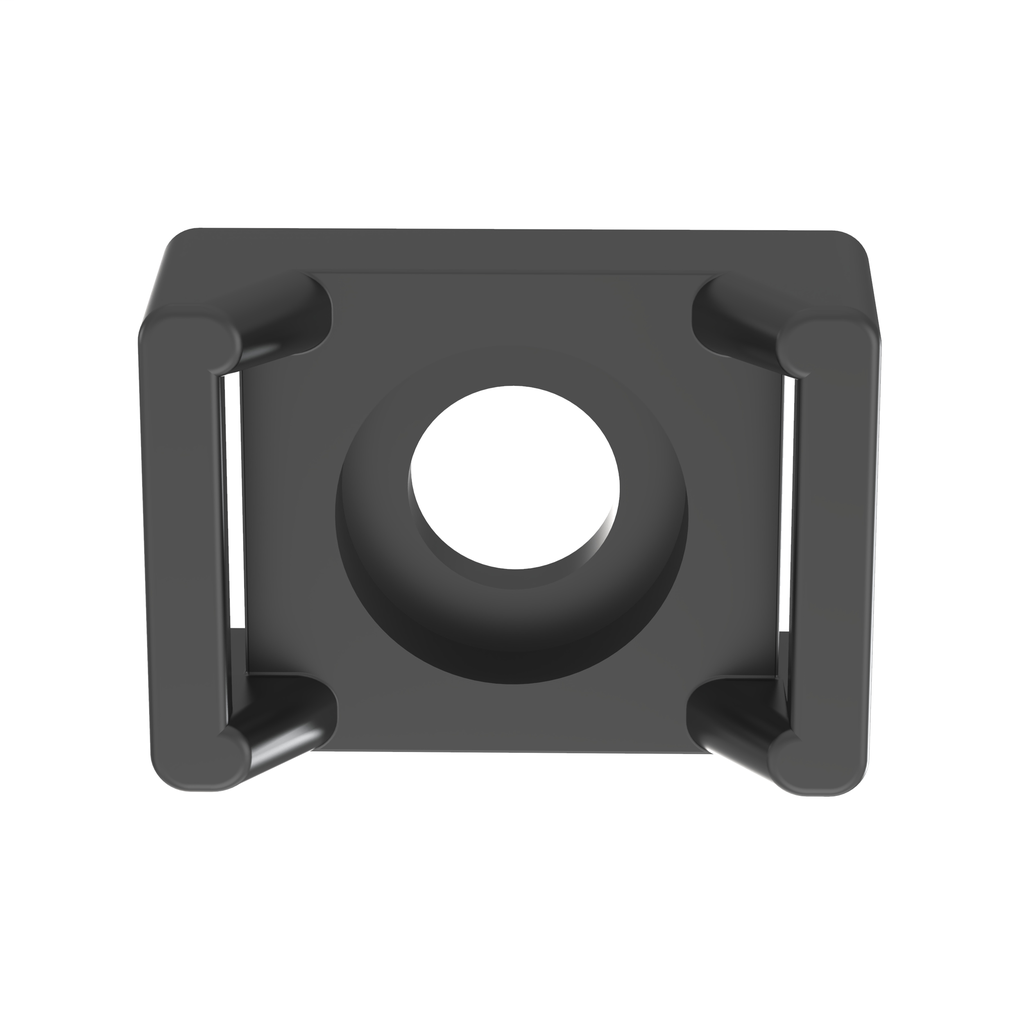

Panduit TM3S10-C0 Cable Tie Mount, .62" (15.8mm)W, #10 Screw (M5), Weather Resistant Nylon

Manufacturer: Panduit | Catalog # TM3S10-C0 | North Coast Part # 193425
$88.03 /c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Catalog Page Specification Sheet
Panduit TM3S10-C0 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #10 (M5) screw. For outdoor use and are suitable for miniature, intermediate and standard cross-section cable ties. Made of Weather Resistant Nylon 6.6. They are 0.61" (15.5 mm) wide, are black in color and come in packages of 100.

Technical Information

Applications
Outdoor
Material
Nylon
Max Operating Temperature
185 degrees F
Min Operating Temperature
-60 degrees C
Mounting Type
Screw-On
Operating Temperature
-76degrees F (-60degrees C) - 185degrees F (85degrees C)
Screw Size
#10 (M5)
Standard
CSA,E2186,UL
Type
Cable Tie Mount

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Cable Tie Mount

General Product Info

12-Digit UPC
074983579846
Color
Black,Orange,White
Environment
Indoor,Outdoor
GTiN
00074983579846
Product UPC
07498357984

Dimensions

Height
0.37 Inch
Overall Length
21.9 mm
Width
50.3 mm

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
China,USA
Prop 65
  • No
Standards and Certifications
  • Standards Met: CE Compliant, UL Recognized:E136577, RoHS Compliant
