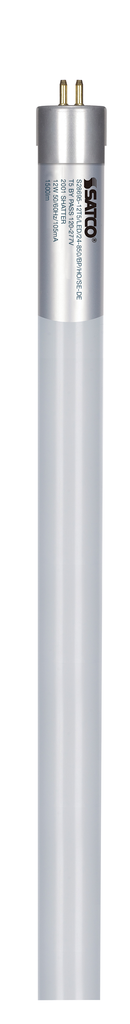

Product image for Satco S28695 12 Watt T5 LED; Miniature bi-pin base; 5000K; 50000 Average rated hours; 1500 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring
Email

Satco S28695 12 Watt T5 LED; Miniature bi-pin base; 5000K; 50000 Average rated hours; 1500 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring

Manufacturer: Satco | Catalog # S28695 | North Coast Part # 1944220
$19.48/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
12W T5 LED; Miniature bi-pin base; 5000K; 50000 Average rated hours; 1500 Lumens; 120-277V; Type B; Ballast Bypass; Single Ended Wiring

Technical Information

Amperage
0.100-0.043 Amp
Average Rated Life
50000 hr
Base
Miniature Bi Pin
Beam Spread
240
Bulb Shape
T5
Color Accuracy
83
Color Rendering Index
83
Color Temperature
Natural Light
Correlated Color Temp
5000 K
Dimmable?
No
Incandescent Equivalent
50 W
IP Rating
IP20
Lens Color
Frost
Lens Material
Glass
Lumens
1,500 Lumen
Material
Glass
Operating Temperature
-13 degrees F
Power Factor
0.9
Technology Type
LED
Type
Linear
Voltage
120 Volt
Wattage
12 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923286957
Finish
Frosted
GTiN
00045923286957
Housing Color
White
Product UPC
04592328695
Weight
0.21 lb

Dimensions

Length
24 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Single or double ended wiring
  • All glass tube
  • PET-shatterproof coated
  • NSF certified
  • Damp location rating
  • 50/60 hertz electric power frequency
Ballasting Requirements
  • Ballast Bypass
Installation Notes
  • Not for use in vapor tight fixtures.
Replaced By Products
  • S8695
