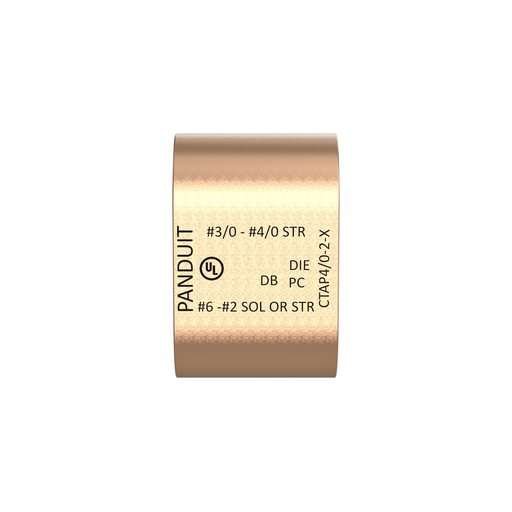

Product image for Panduit CTAP4/0-2-X Heavy Duty CTAP Code Conductor
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit CTAP4/0-2-X Heavy Duty CTAP Code Conductor

Manufacturer: Panduit | Catalog # CTAP4/0-2-X | North Coast Part # 1962130
$4,280.59/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page Installation / Instruction Manual
The CTAP4/0-2-X Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors for tapping into unbroken continuous main, as a wire joint or two-way splice. The wide wire range-taking capability minimizes inventory requirements. UL listed per ul 486 for use up to 35 kv and temperature rated 90.c when crimped with Panduit and specified competitor crimping tools and dies.

Technical Information

Amperage
8-4/0
Applications
For Direct Burial in Earth and Concrete, use with Solid and Stranded Copper Code Conductors
Conductor Size
3/0-4/0 AWG
Material
Copper
Strip Length
1-1/4 in
Tap Size
#6 - #2 AWG SOL or STR
Temperature Rating
90 degrees C
Type
Type CTAP, Heavy Duty
Voltage
Up-35 kV

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
StructuredGround™

General Product Info

12-Digit UPC
074983839506
Color
Copper
GTiN
00074983839506
Product UPC
07498383950
Used With
AWG Wire

Dimensions

Height
1.66 Inch
Length
0.94 Inch
Overall Length
0.94 in
Width
1.08 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL 486 and UL 467
