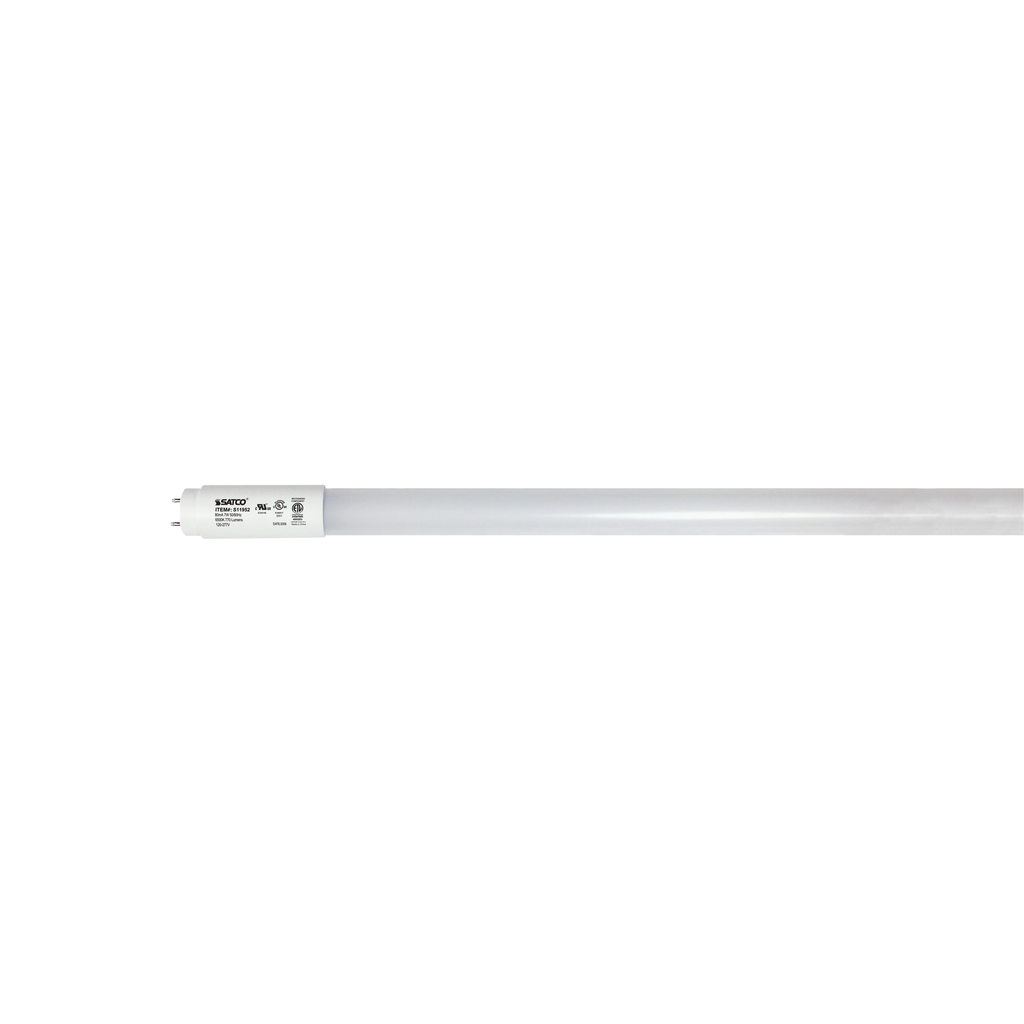

Product image for Satco S11952 7 Watt; 18 Inch; T8 Linear LED; Medium Bi-Pin G13Base; 6500K; 50000 Average Rated Hours; 770 Lumens; Type B Ballast Bypass
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Satco S11952 7 Watt; 18 Inch; T8 Linear LED; Medium Bi-Pin G13Base; 6500K; 50000 Average Rated Hours; 770 Lumens; Type B Ballast Bypass

Manufacturer: Satco | Catalog # S11952 | North Coast Part # 1967721
$16.42/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
7 Watt - 18 Inch - T8 Linear LED - Medium Bi-Pin G13 Base - 6500K - 50000 Average Rated Hours - 770 Lumens - Type B Ballast Bypass

Technical Information

Amperage
0.058-0.025 Amp
Average Rated Life
50000 hr
Base
Medium Bi Pin
Beam Angle
160
Beam Spread
160
Bulb Shape
T8
Color Temperature
6500 K
Correlated Color Temp
6,500 K
Dimmable?
No
Incandescent Equivalent
75 W
Indoor Outdoor
Indoor
IP Rating
IP20
Lens Color
Frost
Lens Material
Glass
Lumens
770 Lumen
Material
Glass,Plastic
Operating Temperature
-13 degrees F
Power Factor
0.9
Size
17.8 in
Standard
CSA C22.2 No. 85,UL E23018,cULus
Technology Type
LED
Type
Type A
Voltage
120 Volt
Wattage
7 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923119521
Finish
Frosted
GTiN
00045923119521
Housing Color
White
Product UPC
04592311952
Weight
0.22 lb

Dimensions

Length
18 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Installation Notes
  • Not for use in vapor tight fixtures.
Features
  • For use Indoors
  • Operating Temperature: -25C (-13F) to a maximum of +40C (+104F)
  • Non-Dimmable
  • Minimum Order Quantity 25
Ballasting Requirements
  • Ballast Bypass
