Satco S9952 15 Watt PLL LED; 2G11 Base; 2000 Lumens; 120-277 Volt; 3500K; Type B; Ballast Bypass

Manufacturer: Satco | Catalog # S9952 | North Coast Part # 1968385
$21.42/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
15 Watt PLL LED Lamp - 2G11 Base - 2000 Lumens - 120-277 Volt - 3500K - Type B - Ballast Bypass

Technical Information

Amperage
0.125-0.054 Amp
Average Rated Life
50000 hr
Base
2G11
Beam Angle
360 DEG
Beam Spread
270
Bulb Shape
T5
Color Temperature
Neutral White
Correlated Color Temp
3,500 K
Dimmable?
No
Incandescent Equivalent
75 W
Indoor Outdoor
Indoor
Lens Color
Frost
Lens Material
Glass
Lumens
1,900 Lumen
Material
Glass,Thermo Plastic
Operating Temperature
-20 degrees C
Power Factor
0.9

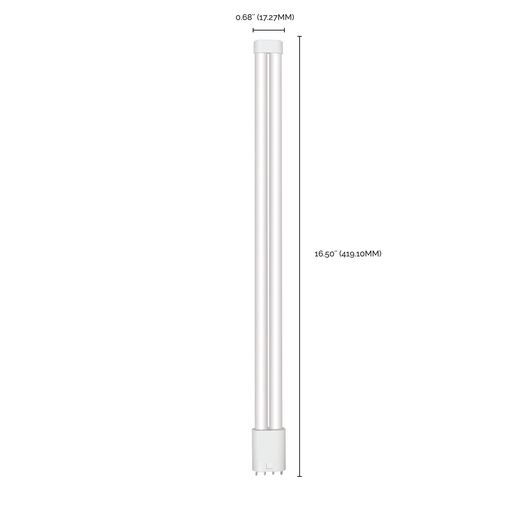

Size
16.5 IN
Technology Type
LED
Type
PL
Voltage
120 Volt
Wattage
15 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923099526
Finish
Frosted
GTiN
00045923099526
Housing Color
White
Product UPC
04592309952
Weight
0.31 lb

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Direct wire 120-277 volts
  • No ballast required
  • Instant-on to full brightness
  • No flickering
  • All-glass tube
  • CCT Selectable Option: S18422
Installation Notes
  • Not for use in vapor tight fixtures.
Ballasting Requirements
  • Ballast Bypass
