Lithonia WPX2-LED-40K-MVOLT-DDBXD-M2 LED Wall Pack, Full Cut-Off, 6000 Lumens, 250W, 120-277V

Manufacturer: Lithonia Lighting | Catalog # WPX2 LED 40K MVOLT DDBXD M2 | North Coast Part # 1974275
$408.26/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
LED Wall Pack, LED, 4000K, 120-277V, Dark bronze finish, super durable

Technical Information

Applications
Automotive & Parking,Bridges & Tunnels,Closet,Education,Government,House Of Worship,Manufacturing,Offices & Banks,Parking Garage,Retail,Roadways,Sports And Recreation,Utility,Warehouses
Color Rendering Index
70
Color Temperature
4000 K
Correlated Color Temp
4000 K
Lamp Type
LED
Material
Aluminum
Mounting Type
Surface
Power Source
Hardwired
Size
9.1x12.3x4.1
Style
Traditional
Type
Wallpack
Voltage
120 Volt
Wattage
48 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
193048870756
Color
Bronze
Environment
Outdoor
Environmental Conditions
Outdoor
Finish
Gloss
GTiN
00193048870756
Product UPC
19304887075

Dimensions

Height
4.1 Inch
Length
9.1 Inch
Width
12.3 in

Certifications and Compliance

Country of Origin
China,China
Applications
  • Automotive & Parking
  • Education
  • Government
  • House of Worship
  • Manufacturing
  • Offices & Banks
  • Parking Garage
  • Retail
  • Roadways
  • Bridges & Tunnels
  • Sports and Recreation
  • Utility
  • Closet
  • Warehouses
Features
  • DESIGN: The WPX LED wall packs are energy-efficient, cost effective, and aesthetically appealing solutions for both HID wall pack replacement and new construction opportunities
  • ENERGY SAVINGS: Delivering 6,000 lumens at 47W make the WPX2 an energy efficient solution.
  • PHOTOCELL: Hardwired on/off capability only
  • RATINGS: CSA certified to meet US and Canadian standards, suitable for wet locations, IP66 Rated and DesignLights Consortium® (DLC) Premium qualified product
  • VOLTAGE: MVOLT for 120-277V (50/60Hz)
  • HOURS OF LIFE: Light engine(s) configurations consist of high-efficacy LEDs and LED lumen maintenance is L90/100,000 hours
  • CONSTRUCTION: Die-cast aluminum main body with optimal thermal management that both enhances LED efficacy and extends component life and the luminaires are IP66 rated and sealed against moisture and environmental contaminants

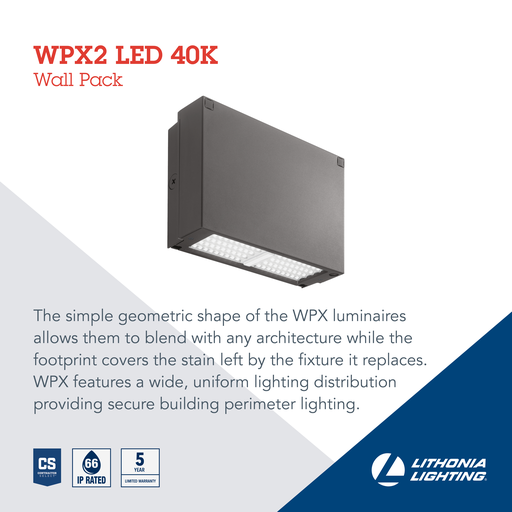

  • DESIGN: Geometric shape covers the footprint of a typical HID wall pack, covering any unsightly stains.
  • WARRANTY: Five-year limited warranty

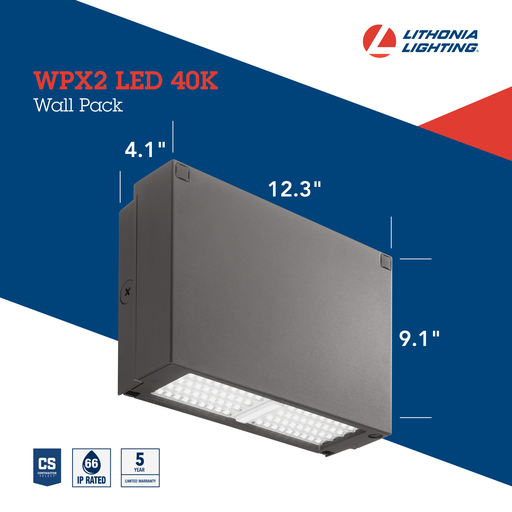

  • DIMENSIONS: 12.3 in x 9.1 in x 4.1 in
  • The WPX family of LED wall packs are your best choice for your everyday wall mounted lighting needs
  • No longer will your customers have to sacrifice performance and style to get the low initial cost that they demand

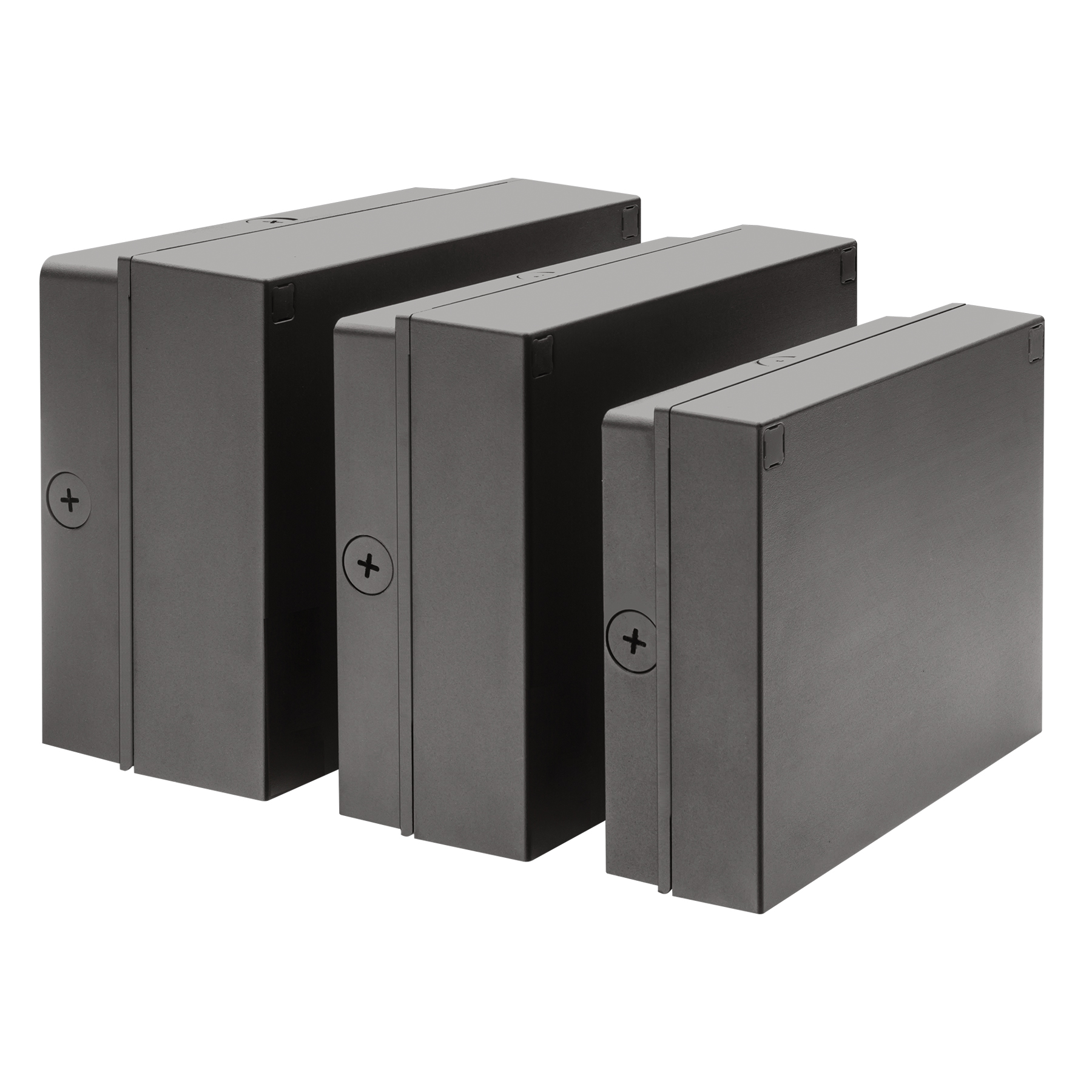

  • With three sizes and lumen packages of 1,550 to 9,200 lumens, the WPX family is a site-wide solution, replacing up to 400W metal halide wall packs
  • Since the WPX footprints are larger than that of typical metal halide glass wall packs, they fully cover unsightly stains, resulting in a neat application without the need for additional patch and repair
Standards
  • CSADLC Premium
  • DLC Standard
