LITH ELM6L UVOLT LTP SDRT ELM6L, 12

Manufacturer: Juno Lighting | Catalog # ELM6L UVOLT LTP SDRT | North Coast Part # 1976703
$511.76/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet MDM Safety Data Sheet

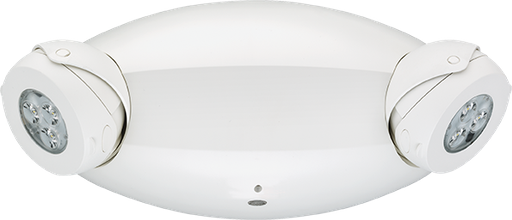

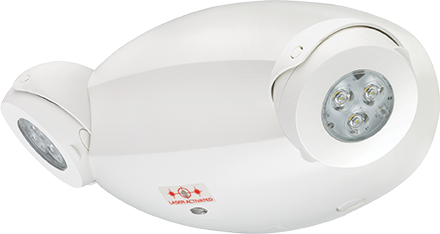

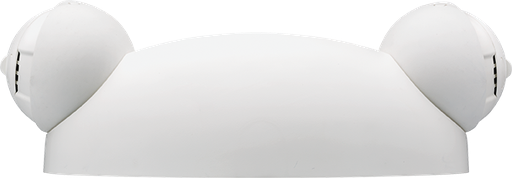

The ELM6L from Lithonia Lighting® is an aesthetically pleasing emergency LED light fixture. It provides a minimum of 90 minutes of illumination with constant light output when there is a loss of power. Equipped with six high performance LEDs and full range swivel lamp heads it is ideal for a wide-range of mounting height applications (from 7.5' to 30+'), requiring aimable optics. The linear pattern provides wide uniform distributions that deliver broad spacing up to 98' and low max to min ratios that far exceed code requirements.

Technical Information

Applications
Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks,Residential,Retail,Sports And Recreation
Color Rendering Index
70
Color Temperature
5000 K
Correlated Color Temp
5,000 K
Lamp Type
LED
Lens Color
Clear
Lens Material
Acrylic
Lumens
1,100 Lumen
Mounting Type
Surface
Power Source
Hardwired
Standard
C-UL-US,ULCA Title 20
Type
Emergency Lighting Unit
Voltage
120 Volt
Wattage
2.78 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
191723916454
Color
White
Environment
Indoor
Environmental Conditions
Indoor
Finish
Textured
Fixture Type
Emergency Lighting Unit
GTiN
00191723916454
Product Type
Emergency Lighting Unit
Product UPC
19172391645
Weight
4 lb

Dimensions

Height
4 Inch
Length
14 Inch
Warranty Length
5 yr
Width
6.5 in

Certifications and Compliance

Country of Origin
Mexico
Features

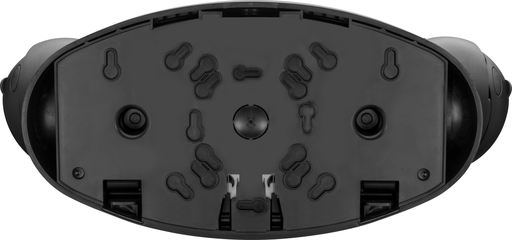

  • MOUNTING: Wall and ceiling mount with tool-less removal of front cover from back-plate for ease of installation and maintenance
  • UPGRADE: Easily replaces existing emergency lighting units
  • CONTROLS: Optional STAR self-testing automated reporting feature
  • RATINGS / LISTINGS: UL damp location listed standard and wet location listed with the WPVS accessory, all at 50-104°F (10-40°C), meets or exceeds all applicable requirements for Life Safety Code and state specific requirements
  • VOLTAGE: Functions between 120 and 347 volt with input wattage of 1.35 watts
  • HOURS OF LIFE: The typical life of the LED lamp is 10 years using two 1 Watt LED lamps for emergency light
  • HOUSING: Standard thermoplastic, compact and low-profile design, it's 5VA flame rated, impact- and scratch-resistant and corrosion proof, the UV-stable resin resists discoloration from natural and man-made light sources
  • SELF-DIAGNOSTICS: Includes test switch, status indicator and rechargeable battery with maintenance-free nickel-cadmium battery provides 90 minutes of emergency power
  • WARRANTY: 5-year limited warranty
Standard
  • C-UL-US
  • ULCA Title 20
Application
  • Education
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Offices & Banks
  • Residential
  • Retail
  • Sports and Recreation
Mounting
  • Surface
