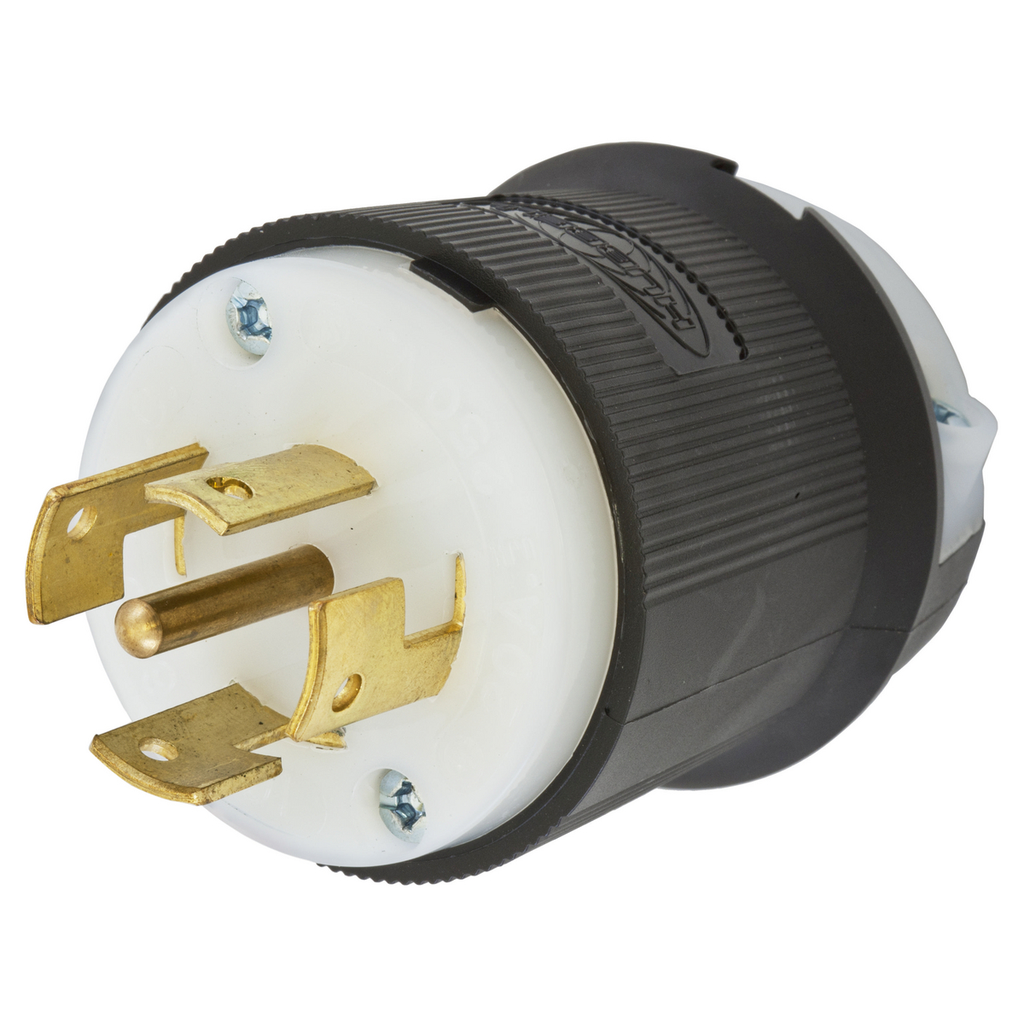

Product image for Hubbell HBL3521C 10/20 Amp 600/250 Volt 4-Pole 5-Wire Black and White Locking Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL3521C 10/20 Amp 600/250 Volt 4-Pole 5-Wire Black and White Locking Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL3521C | North Coast Part # 198601
$141.40/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 250V/10A 600V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black and White nylon.

Technical Information

Amperage
10 Amp
Applications
For Extra Heavy Duty Industrial Applications
Conductor Size
16-8 AWG
Cord Size
0.35 - 1.15 in
Cord Type
Portable
Current
10 Amp
Dielectric Strength
2000 V
Grounding
Yes
Material
Nylon
Mounting Type
Cord
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
2.33 in x 2.33 in x 2.75 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard, Non-Shrouded
Voltage
250/600 Volt
Wattage
12000 Watt
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585039916
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585039916
Product UPC
78358503991
Weight
0.3 lb

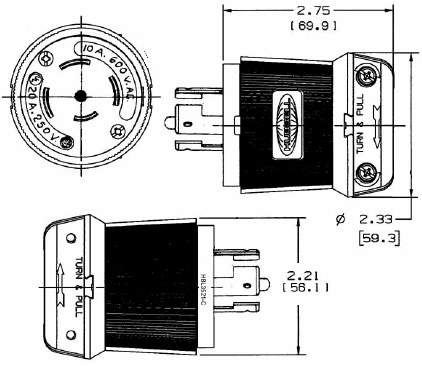

Dimensions

Height
2-3/4 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product
