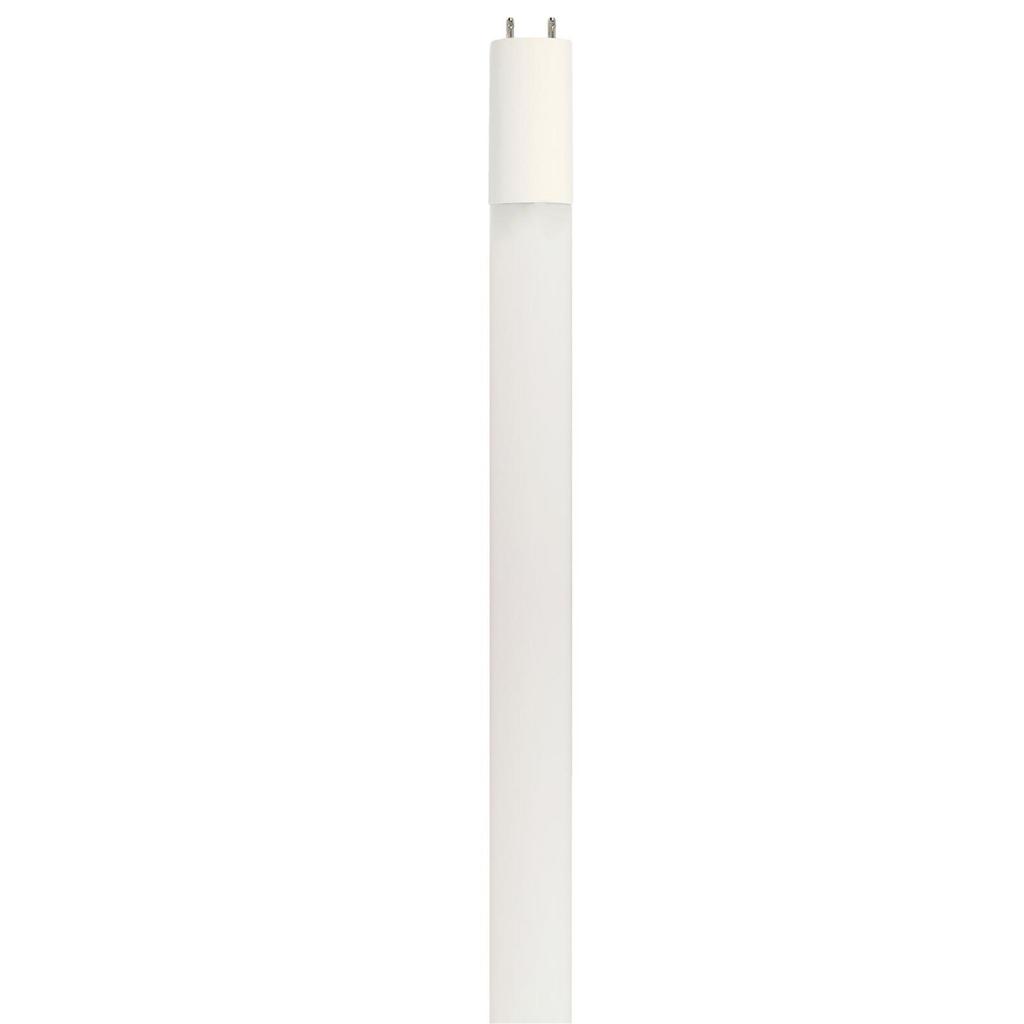

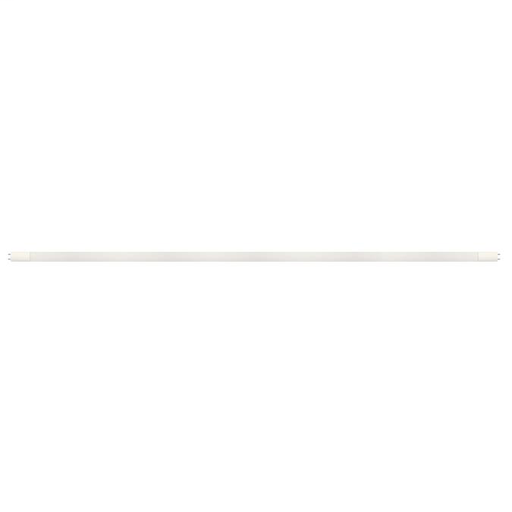

WEST 5156100 14 Watt (4 Foot) T8 Un

Manufacturer: Westinghouse Lighting | Catalog # 5156100 | North Coast Part # 1990630

$25.79/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Westinghouse T8 (14 Watt) Cool White (4000K) G13 (Medium BiPin) Base Non-Dimmable Universal Ballast Bypass Linear LED Light Bulb 51561

Technical Information

Applications
Lighting
Base
G13 (Medium BiPin)
Beam Spread
230 degrees
Color Accuracy
83
Color Rendering Index
83
Color Temperature
4,000 K
Correlated Color Temp
4,000 K
Lamp Life
50,000 hr
Lumens
1800 Lumen
Size
48.00 In
Temperature Rating
-25C / -13F
Type
Lamps LED
Voltage
120-277 Volt
Wattage
14 Watt

Manufacturer Information

Family Brand Name
Westinghouse

General Product Info

Color
Frost
GTiN
00030721515613
Product UPC
03072151561
RECOMMENDED USES
  • Hospitality applications
  • Compatible with T8 and T12 fixtures, use in place of 4 foot T8 or T12 fluorescent light tube bulbs
  • Laundry rooms or Kitchens
  • Residential applications
  • Office, Store or School
  • Operates in both single-ended and double-ended ballast bypass wiring configurations
  • Basement or Garage
  • Industrial applications
  • Retrofit for ballast bypass linear fluorescent bulb
  • Commercial applications
INSTALLATION
  • Non-dimmable
  • Suitable for damp locations
  • Installation instructions are included
  • Operates with direct line voltage between 120V and 277V
  • Can be used with either shunted or non-shunted tombstones in double-end power configuration
  • Rated for indoor use
  • Must use non-shunted tombstones in single-end power configuration
  • Must bypass ballast, ballast bypass wiring requires knowledge of fluorescent lighting fixtures and electrical systems
  • Approved for use in enclosed fixtures
  • Optimized general illumination - no wasted light inside the fixture
  • Provides excellent light distribution and familiar look of a fluorescent light tube
  • Quality components ensure optimum lumen output over lifetime of the bulb
  • Mercury-free TLEDs lower disposal costs, an environmentally-friendly choice
  • Multi-operational T8 LED bulb 4 foot replaces linear fluorescent 4 foot bulbs as well as single-ended and double-ended TLEDs (no additional wire change required)
DIMENSIONS
  • 1 inches (D)
  • 48 inches (L)
