ABB 10RCS-251TX HEAT-SHR MALE-250 T

Manufacturer: Thomas & Betts | Catalog # 10RCS-251TX | North Coast Part # 19971
$659.10/c (100 ea)
ea
Order in multiples of 25 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

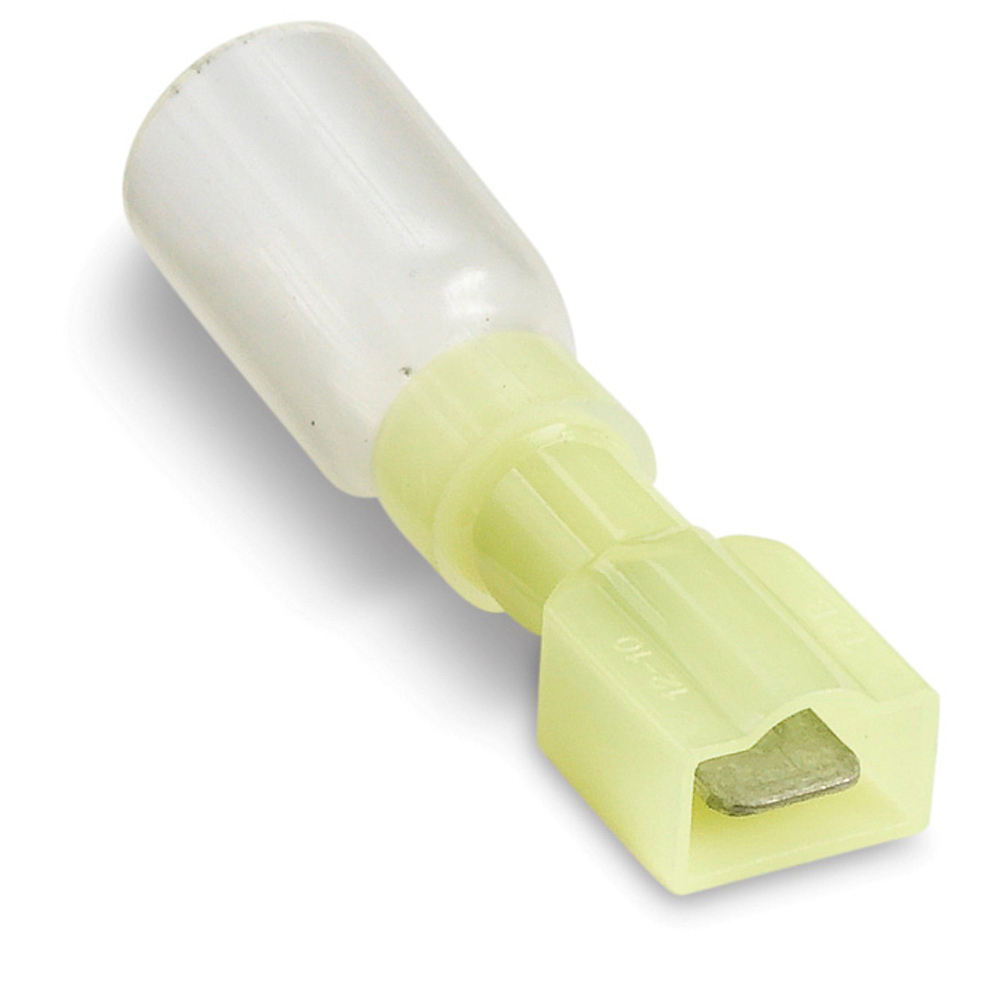

Heat-Shrinkable Fully Insulated Male Tab, Length 1.80 Inches, Maximum Insulated .250, Tab Size .250x.032, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Heat-Shrinkable Polyolefin
Material
Brass
Tab Size
1/4 in
Temperature Rating
150 degrees C
Terminal Type
RCS
Type
Heat Shrinkable Insulated Male Disconnect
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
786210064918
Color
Yellow
Finish
Electro Tin Plated
GTiN
05415022344868
Product UPC
78621006491

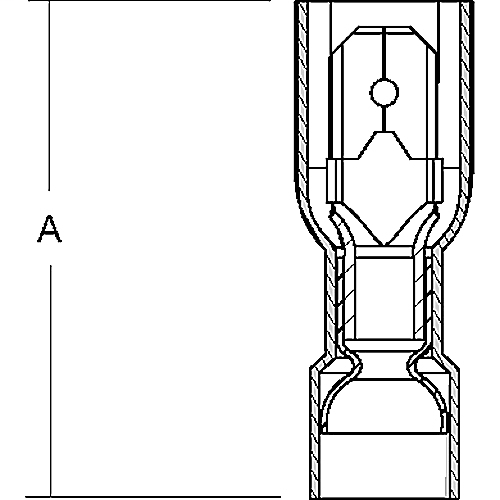

Dimensions

Height
3 Inch
Length
1.8 Inch
Width
1.3 in
Certifications
  • UL
  • CSA
