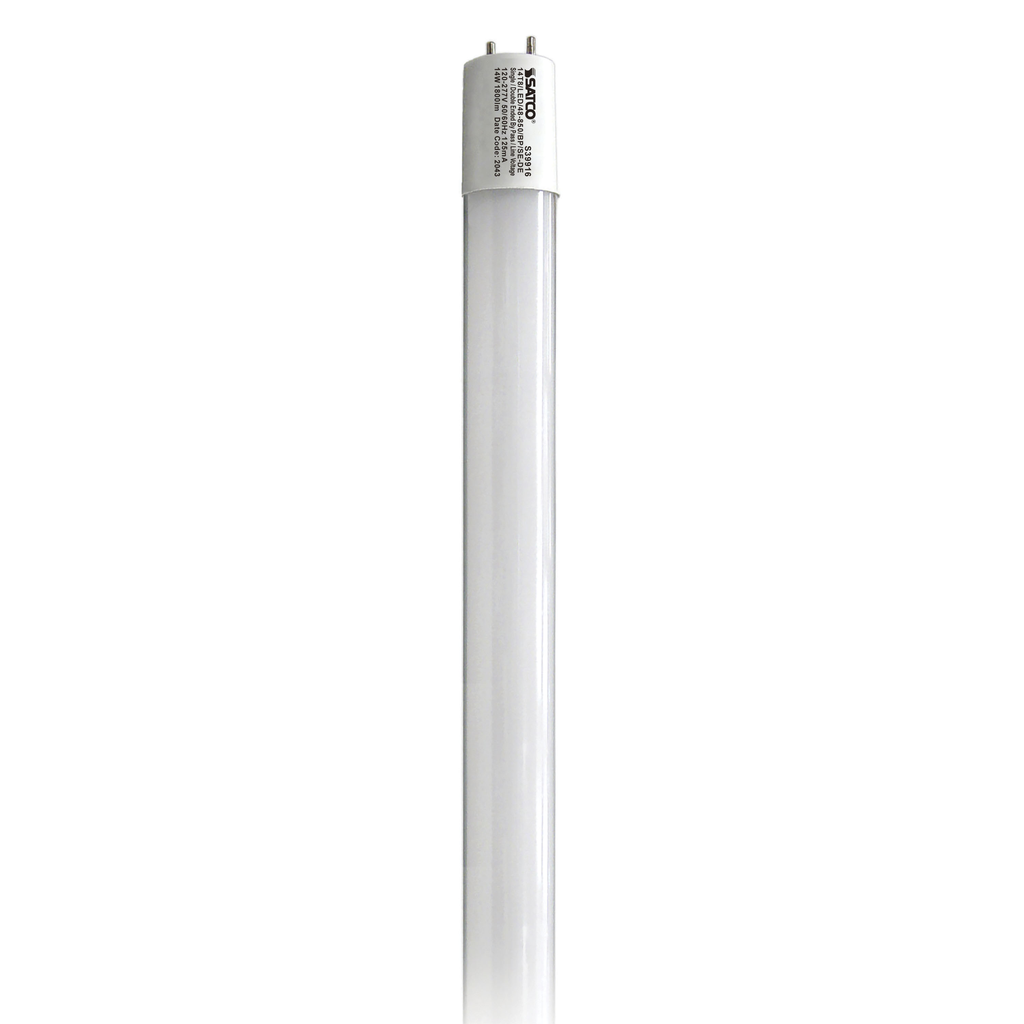

Product image for Satco S39916 4ft T8 LED, 18W, 5000K, 1800 Lumens, Type B, Ballast Bypass, Single or Double Ended Wiring, Medium Bi-Pin Base
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Image thumbnail 11
Email

Satco S39916 4ft T8 LED, 18W, 5000K, 1800 Lumens, Type B, Ballast Bypass, Single or Double Ended Wiring, Medium Bi-Pin Base

Manufacturer: Satco | Catalog # S39916 | North Coast Part # 2000849
$8.36/ea
ea
Log in or register to view your price, purchase history, and more!
63 available

For Pick Up

at Auburn Closes 3:00pm PT
63 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet
14W T8 LED - 4 ft. - 5000K - G13 Base - 50000 Hours - 1800L - Type B - BBP - 1 or 2 Ended Wiring

Technical Information

Amperage
0.117-0.051 Amp
Applications
For Indoor and Outdoor Applications
Average Rated Life
50000 hr
Ballast Type
Type B Ballast
Beam Angle
210
Beam Spread
210
Bulb Shape
T8
Color Temperature
5000 K
Correlated Color Temp
5000 K
Dimmable?
No
Incandescent Equivalent
75 W
Indoor Outdoor
Indoor;Outdoor
Lens Color
Gloss,White
Lens Material
Glass
Lumens
1,800 Lumen
Material
Glass
Operating Temperature
-20 degrees C
Power Factor
0.9
Technology Type
LED
Type
T8
Voltage
120 Volt
Wattage
14 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923399169
Environmental Conditions
Damp Location Rated
Finish
White
GTiN
00045923399169
Housing Color
White
Product UPC
04592339916
Weight
0.43 lb

Dimensions

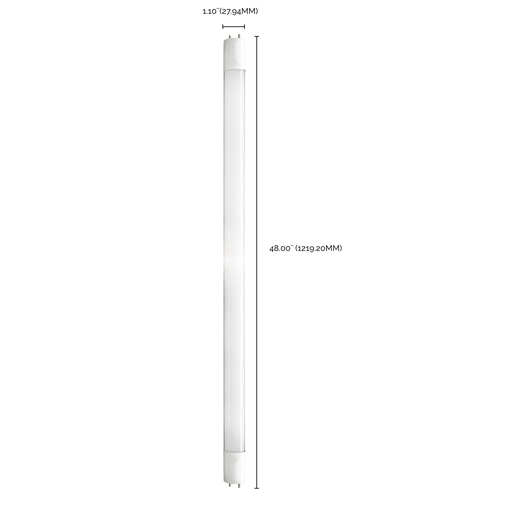

Length
48 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • 4-ft length
  • 14W
  • 25W/28W/30W/32W Fluorescent Replacement
  • Ballast Bypass Type B
  • 120-277V Range Voltage
  • Damp Location Rated
  • Suitable for use in enclosed fixtures
  • rated for use in damp locations
  • Glass Tube
  • 210-degree beam angle
  • Equivalent CCT selectable option available in S11766
Ballasting Requirements
  • Ballast Bypass
Installation Notes
  • Not for use in vapor tight fixtures.
Replaced By Products
  • S29916
  • S9916
