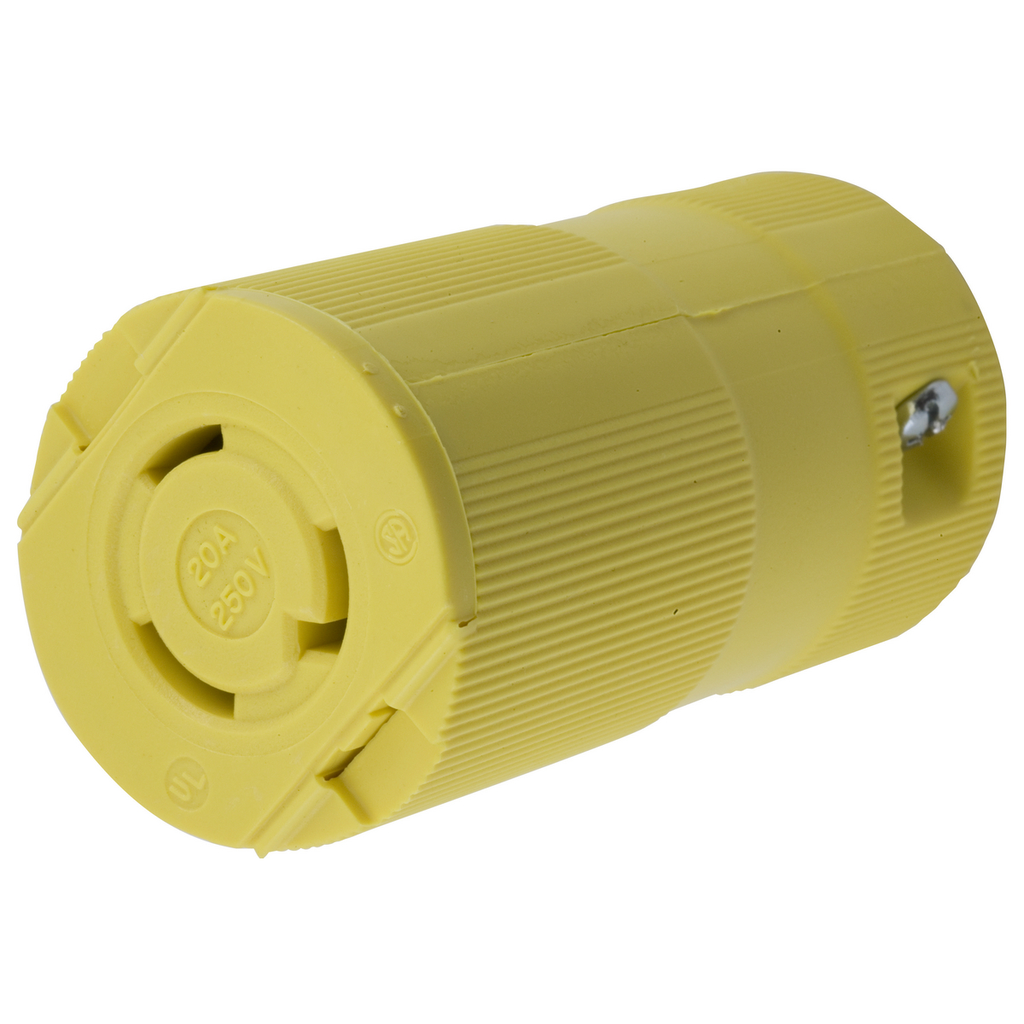

Product image for Hubbell HBL2323VY Locking VAL CONN, 20A 250V, L6-20R, YL
Image thumbnail 0
Image thumbnail 1
Email

Hubbell HBL2323VY Locking VAL CONN, 20A 250V, L6-20R, YL

Manufacturer: Hubbell / Kellems | Catalog # HBL2323VY | North Coast Part # 201422
$45.50/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Vasile®, Connector Body, 20A 250V, 2-Pole 3-Wire Grounding, NEMA L6-20R, Yellow Nylon.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
12-10 AWG
Current
20 Amp
Grounding
Grounding
Material
Nylon
Mounting Type
Cord
NEMA
L6-20R
Number of Conductors
3-Wire Grounding
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
#8-32 Steel
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C
Type
Standard
Voltage
250 Volt
Wire Size
14-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Valise®

General Product Info

12-Digit UPC
783585235653
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585235653
Housing Material
Yellow Nylon
Product UPC
78358523565
Weight
0.25 lb

Dimensions

Height
1.81 Inch
Length
3-1/2 Inch
Width
1.81 in

Certifications and Compliance

Country of Origin
USA
Features
  • Unique patented clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
  • Totally insulated impact and crush resistant nylon body
  • Powerful cord grip prevents conductor slippage and strain on wiring terminals
  • Standard Product
