Hubbell HBL9337C 30 Amp 125/250 Volt 3-Pole 3-Wire NEMA 10-30P Black Nylon Straight Blade Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL9337C | North Coast Part # 202042
$112.30/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Opens Friday 5:00am PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Insulgrip, Nylon, Heavy Duty, Industrial/Commercial Grade, Straight, 3-Pole 3-Wire Non-Grounding, 30A 125/250V, 10-30P, Black, Single Pack.

Technical Information

Amperage
30 Amp
Applications
Industrial/Commercial
Conductor Size
12-4 AWG
Cord Type
All Portable
Current
30 Amp
Material
Nylon
NEMA
10-30P
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,File E1706,UL
TC Connection
Terminal Screws
Type
Insulgrip
Voltage
125 Volt
Wattage
7500 Watt
Wire Count
3
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585015699
Color
Black
Environmental Conditions
Indoor Dry unless protected by additional means
GTiN
00783585015699
Product UPC
78358501569
Weight
0.8 lb

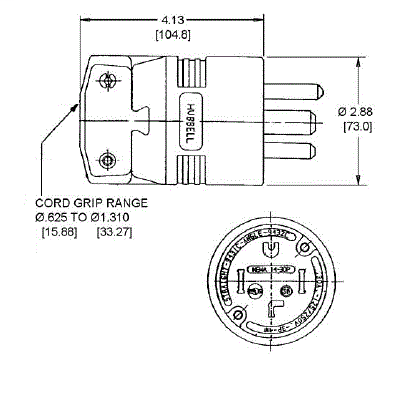

Dimensions

Height
1.88 Inch
Length
4.33 Inch
Width
2.75 in

Certifications and Compliance

Country of Origin
USA
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 HB
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Features
  • Supertough nylon housing
  • Gripping ribs provide secure gripping area
  • Captive Allen head terminal screws are user-ready
Industry Standard(s)
  • CSA Certified
  • UL Listed File E1706
Voltage Rating
  • 125 V
  • 250 V
