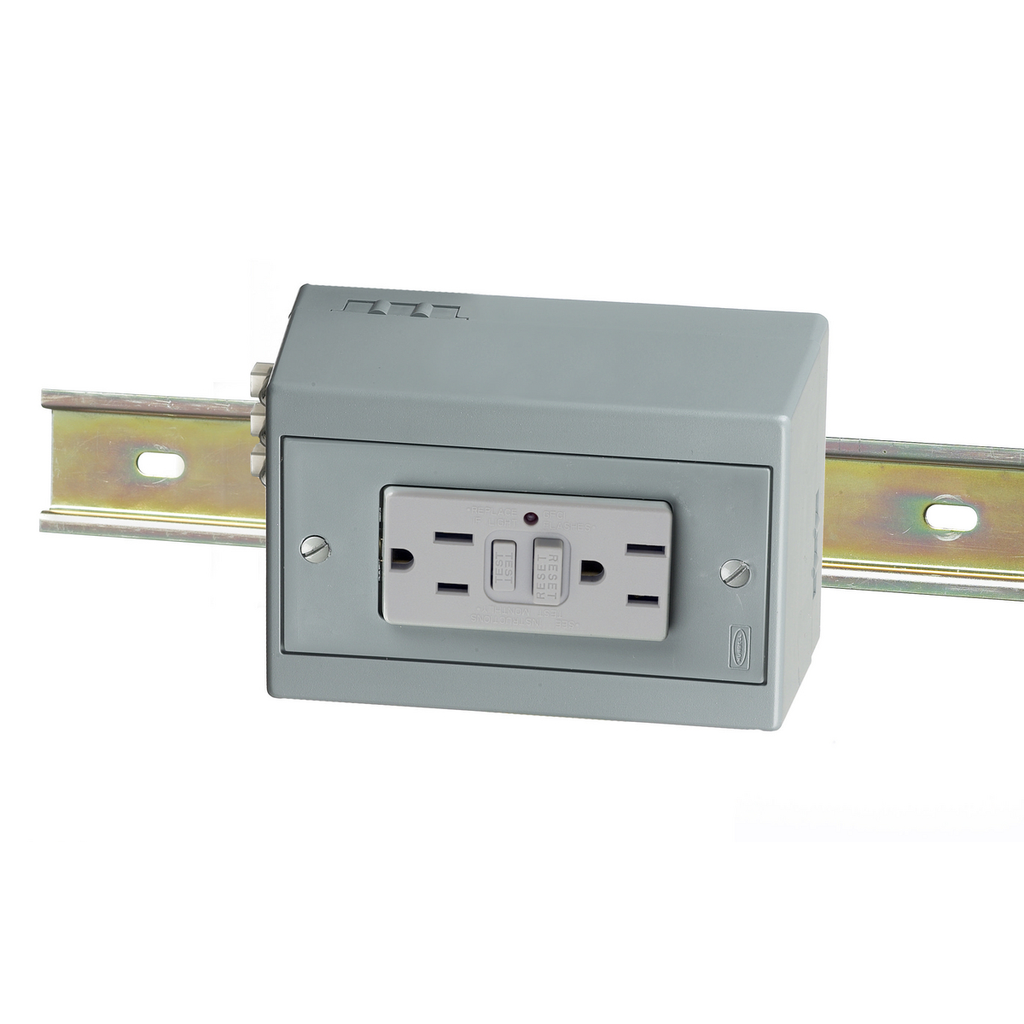

Product image for Hubbell DRUBGFI15HDIN-R UTL BOX, 15A 125V, DUP, GFCI, HORIZ, GY
Image thumbnail 0
Image thumbnail 1
Email

Hubbell DRUBGFI15HDIN-R UTL BOX, 15A 125V, DUP, GFCI, HORIZ, GY

Manufacturer: Hubbell / Metal Raceway | Catalog # DRUBGFI15H | North Coast Part # 202812
$190.77/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
DIN Rail Utility Box, Complete Unit- GFCI, Horizontal, 1) 15A Gray.

Technical Information

Amperage
15 Amp
Applications
Unit Pre-Wired with GFCI Duplex
Base Material
PVC
Cable Entry
Terminals
Conductor Size
14-12 AWG
Current
15 Amp
GFCI
Yes
Grounding
Neutral and Ground
Horsepower
0.5 hp
Material
Composite
Mounting Type
35 mm DIN Rail/Horizontal
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard Sized Product
Standard
UL
Type
Complete Unit
Voltage
125 Volt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
DIN Rail Utility Box

General Product Info

12-Digit UPC
783585108070
Color
Gray
Construction
Molded And Fabricated
GTiN
00783585108070
Product UPC
78358510807
Weight
0.95 lb

Dimensions

Height
2.54 Inch
Length
5.62 Inch
Width
3.31 in

Certifications and Compliance

Country of Origin
China
Features
  • It provide utility power to any control cabinet
  • Optional auxiliary contacts for feed through capability
  • Pre-wired \"kits\" are available for end-user customization
  • 15A 125V, 2-Pole 3-Wire Grounding
